Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
T60006L2009W914 NANOCRYSTALLINE CORE, 9.8X6.5X4. VACUUMSCHMELZE	3,606	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	0.441 (11.20mm)	25.5 µH	-	Ungapped	-	-	-	25.6	5.94	-	-	Uncoated	0.228 (5.80mm)
PLT22/16/2.5/S-3F36 FERRITE CORE Ferroxcube	2,429	-	запрос цен	Техническая	Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)
B66421G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,328	-	запрос цен	Техническая	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
E22/6/16/R-3F36 FERRITE CORE Ferroxcube	3,351	-	запрос цен	Техническая	Bulk	-	Active	E	E 22 x 6 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
T60004L2016W620 NANOCRYSTALLINE CORE, 16X12.5X6 VACUUMSCHMELZE	3,231	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	0.701 (17.90mm)	15 µH	-	Ungapped	-	-	-	44.8	8	-	-	Epoxy	0.315 (8.00mm)
T60006L2017W515 NANOCRYSTALLINE CORE, 17.5X12.6X VACUUMSCHMELZE	2,770	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	0.756 (19.20mm)	30 µH	-	Ungapped	-	-	-	47.3	11.8	-	-	Uncoated	0.319 (8.10mm)
B65517D0250J048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	3,800	-	запрос цен	Техническая	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	250 nH	±5%	Gapped	249	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
T60006L2016W403 NANOCRYSTALLINE CORE, 16X10X6, 4 VACUUMSCHMELZE	2,688	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	0.705 (17.90mm)	43 µH	-	Ungapped	-	-	-	40.8	14.4	-	-	Uncoated	0.319 (8.10mm)

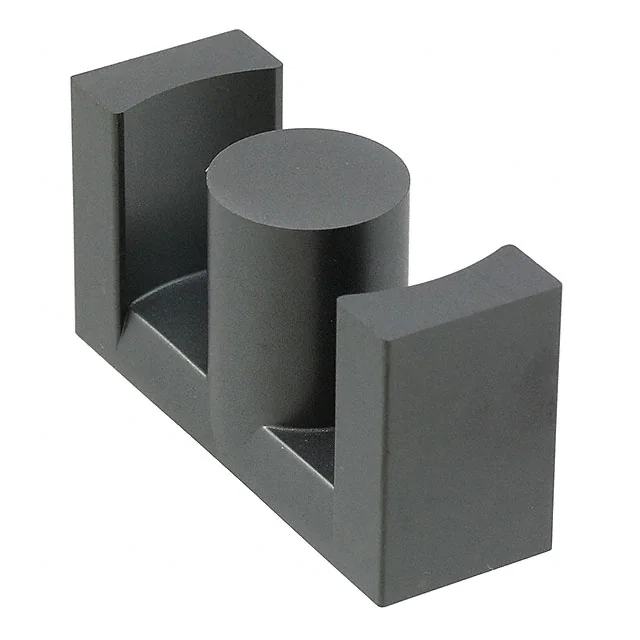

B66365G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2,041	-	запрос цен	Техническая	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
PLT43/28/4.1-3C95 FERRITE CORE Ferroxcube	2,140	-	запрос цен	Техническая	Bulk	-	Active	PLT	PLT 43 x 28 x 4.1	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B64290L0058X830 FERRITE CORE TOROID 4.36UH N30 EPCOS - TDK Electronics	2,577	-	запрос цен	Техническая	Tray	TX34/20.5/10	Active	Toroid	-	N30	1.397 (35.50mm)	4.36 µH	±25%	Ungapped	-	4300	1.24	82.06	66.08	-	5423	Epoxy	0.437 (11.10mm)
E43/10/28-3C95 FERRITE CORE Ferroxcube	2,467	-	запрос цен	Техническая	Bulk	-	Active	E	E 43 x 10 x 28	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
T60006L2025W523 NANOCRYSTALLINE CORE, 25X20X10 VACUUMSCHMELZE	3,254	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	1.087 (27.60mm)	28.4 µH	-	Ungapped	-	-	-	70.7	20	-	-	Uncoated	0.504 (12.80mm)
T60006L2025W380 NANOCRYSTALLINE CORE, 25X16X10 VACUUMSCHMELZE	2,577	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	1.098 (27.90mm)	67 µH	-	Ungapped	-	-	-	64.4	36	-	-	Uncoated	0.492 (12.50mm)

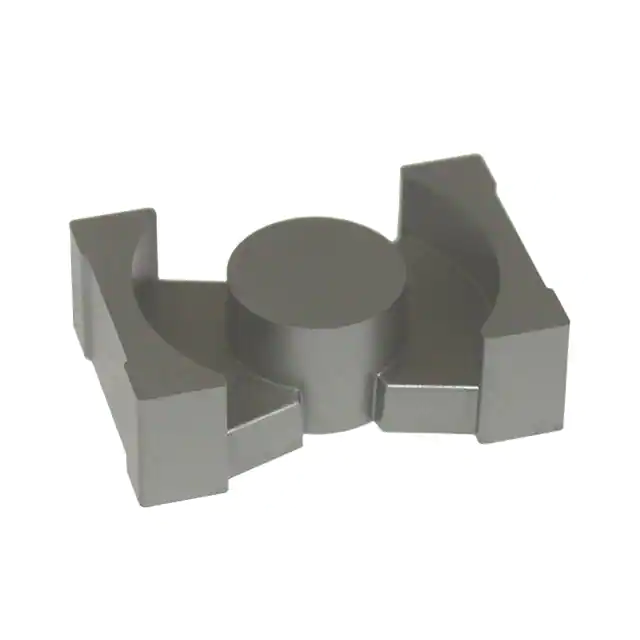

PQ32/30-3C95 FERRITE CORE 2PC SET Ferroxcube	2,604	-	запрос цен	Техническая	Bulk	-	Active	PQ	PQ 32 x 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.193 (30.30mm)
T60006L2030W423 NANOCRYSTALLINE CORE, 30X20X10 VACUUMSCHMELZE	3,125	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	1.299 (33.00mm)	66 µH	±30%	Ungapped	-	-	-	78.5	40	-	-	Uncoated	0.492 (12.50mm)

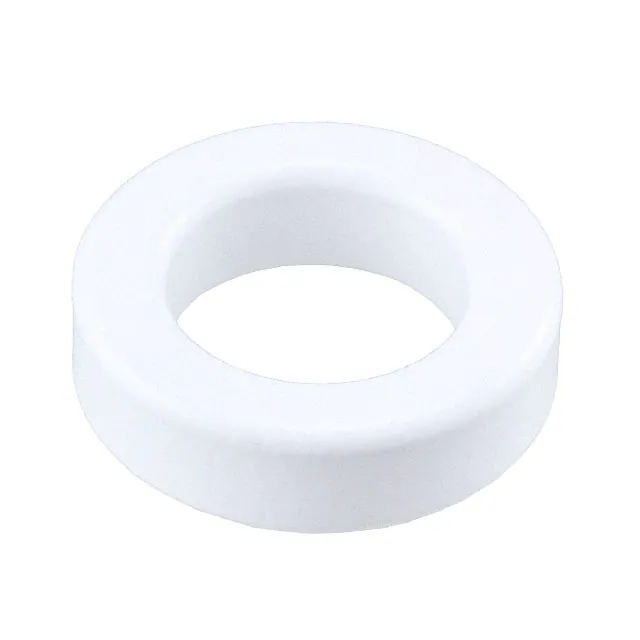

TX36/23/10-4C65 FERRITE CORES ROUND Ferroxcube	3,618	-	запрос цен	Техническая	Bulk	-	Active	Toroid	TX 36 x 23 x 10	4C65	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)

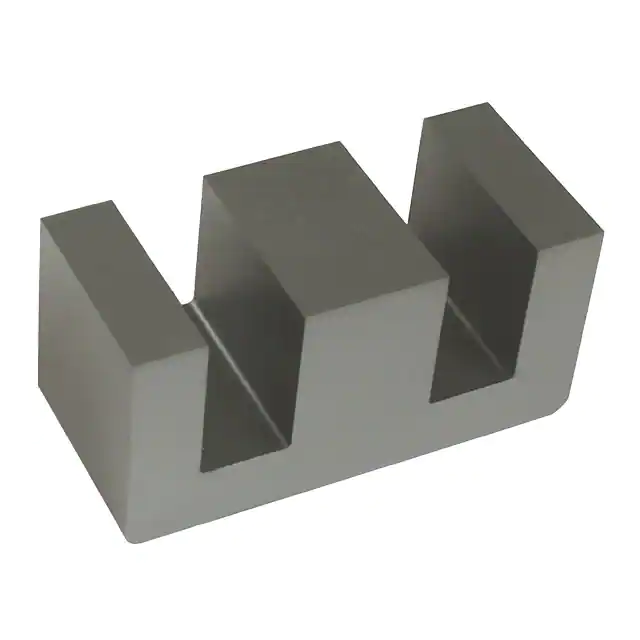

E65/32/27-3C94 FERRITE CORE Ferroxcube	2,277	-	запрос цен	Техническая	Bulk	-	Active	E	E 65 x 32 x 27	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)

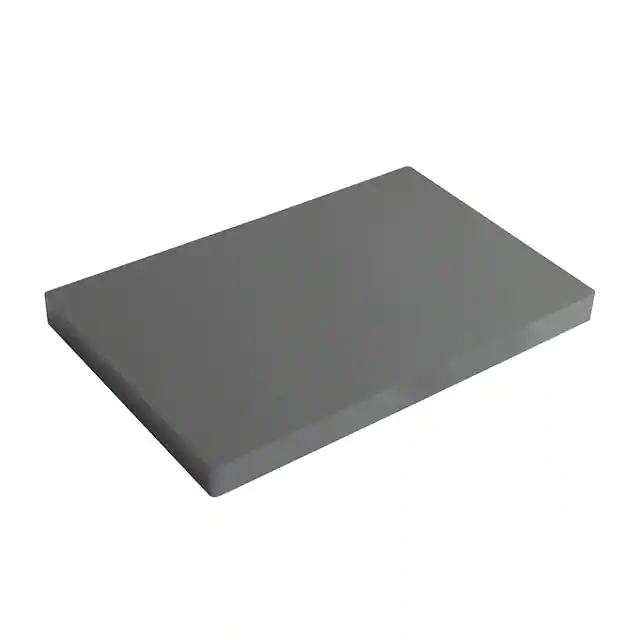

PLT64/50/5-3C95 FERRITE CORE Ferroxcube	2,530	-	запрос цен	Техническая	Bulk	-	Active	PLT	PLT 64 x 50 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)

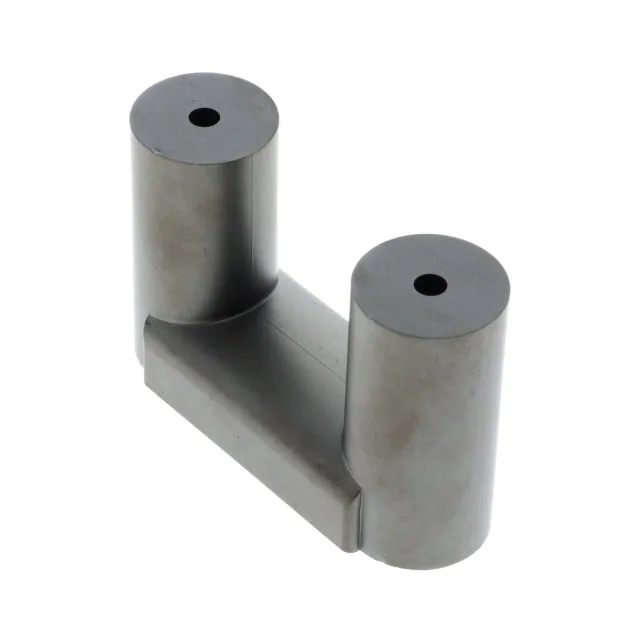

UR64/40/20-3C90 UR CORES Ferroxcube	3,821	-	запрос цен	Техническая	Bulk	-	Active	UR	UR 64 x 40 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.594 (40.50mm)
