| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FR1E471YBCAP ALUM 470UF 20% 25V RADIAL |
9,879 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 470 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEU-FC1E470CAP ALUM 47UF 20% 25V RADIAL |
10,382 | - |
|
Техническая |
Bulk | FC | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 113.8 mA @ 120 Hz | 175 mA @ 100 kHz | 800 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEU-FC1V470CAP ALUM 47UF 20% 35V RADIAL |
5,133 | - |
|
Техническая |
Bulk | FC | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 188.5 mA @ 120 Hz | 290 mA @ 100 kHz | 350 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.441 (11.20mm) | - | Through Hole |
|
EEU-EB1J330SCAP ALUM 33UF 20% 63V RADIAL |
17,309 | - |
|
Техническая |
Bulk | EB-A | Active | 33 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 65 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
EEU-FC1E331BCAP ALUM 330UF 20% 25V RADIAL |
5,271 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 330 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 490.8 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ECA-1JHG470CAP ALUM 47UF 20% 63V RADIAL |
8,393 | - |
|
Техническая |
Bulk | NHG-A | Active | 47 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 180 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
|
EEU-FC1J220CAP ALUM 22UF 20% 63V RADIAL |
3,056 | - |
|
Техническая |
Bulk | FC | Active | 22 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 1 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.441 (11.20mm) | - | Through Hole |
|
ECA-1CM331CAP ALUM 330UF 20% 16V RADIAL |
3,649 | - |
|
Техническая |
Bulk | M-A | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 595 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
ECA-2AHG100CAP ALUM 10UF 20% 100V RADIAL |
2,457 | - |
|
Техническая |
Bulk | NHG-A | Active | 10 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 108 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
|
EEU-FR1J101LBCAP ALUM 100UF 20% 63V RADIAL |
2,153 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 100 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 518.7 mA @ 120 Hz | 741 mA @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|

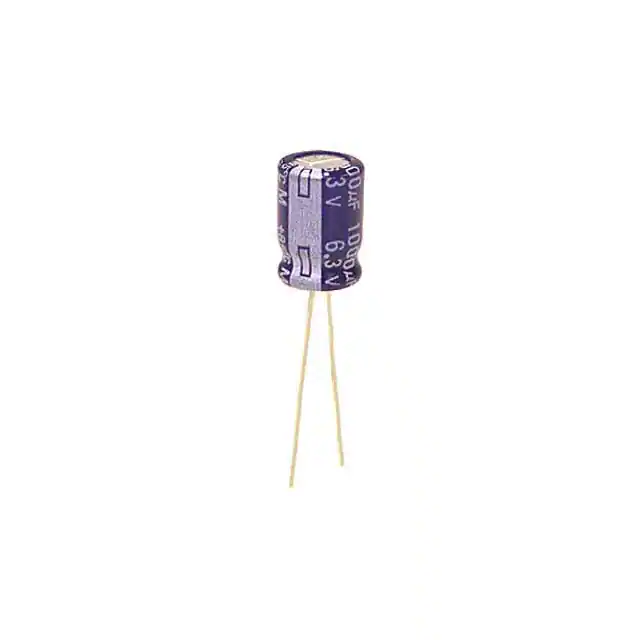

ECA-0JM102CAP ALUM 1000UF 20% 6.3V RADIAL |
110,645 | - |
|
Техническая |
Bulk | M-A | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 580 mA @ 120 Hz | 986 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FR1E471LBCAP ALUM 470UF 20% 25V RADIAL |
2,776 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 470 µF | ±20% | 25 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ECA-1EM331CAP ALUM 330UF 20% 25V RADIAL |
1,246 | - |
|
Техническая |
Bulk | M-A | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 663 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

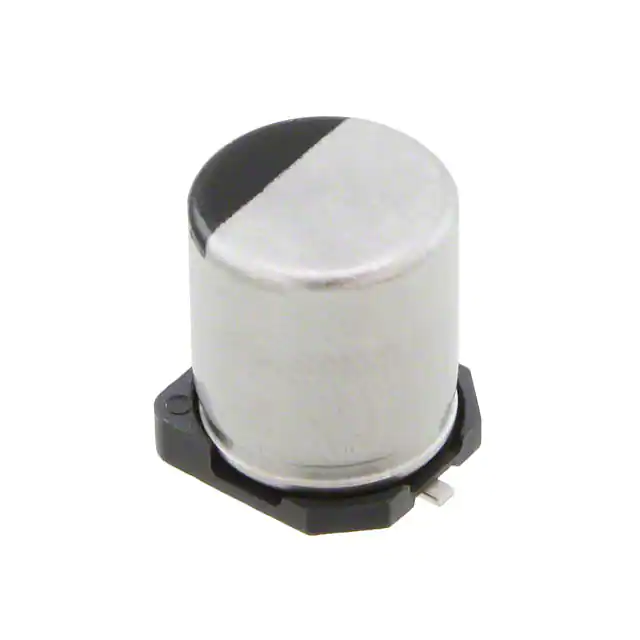

EEE-TQV101XAPCAP ALUM 100UF 20% 35V SMD |
2,366 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TQ | Active | 100 µF | ±20% | 35 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 128.05 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-EB1H101SCAP ALUM 100UF 20% 50V RADIAL |
551 | - |
|
Техническая |
Bulk | EB-A | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 99 mA @ 120 Hz | 128.7 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ECA-1AM102CAP ALUM 1000UF 20% 10V RADIAL |
2,300 | - |
|
Техническая |
Bulk | M-A | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.071 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|

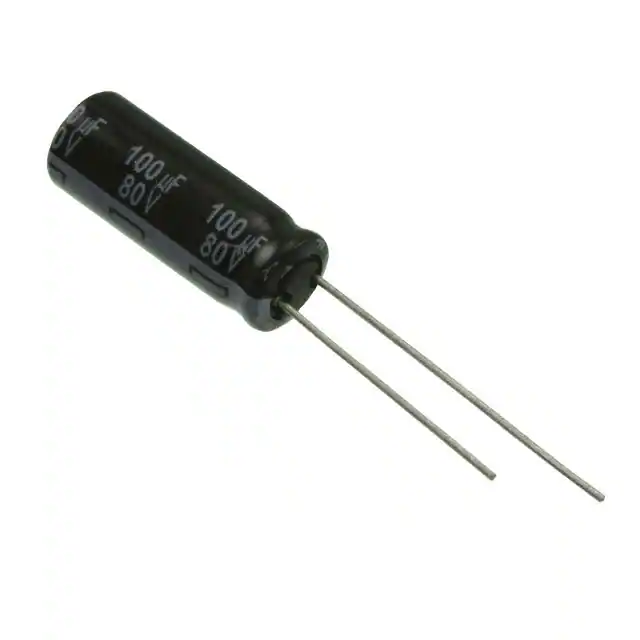

EEU-FS1K101LBCAP ALUM 100UF 20% 80V RADIAL |
2,478 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 100 µF | ±20% | 80 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 567 mA @ 120 Hz | 810 mA @ 100 kHz | 96 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC1E221CAP ALUM 220UF 20% 25V RADIAL |
53,475 | - |
|
Техническая |
Bulk | FC | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
|
EEU-FC1C221CAP ALUM 220UF 20% 16V RADIAL |
11,237 | - |
|
Техническая |
Bulk | FC | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
|
EEU-FC1E181CAP ALUM 180UF 20% 25V RADIAL |
2,460 | - |
|
Техническая |
Bulk | FC | Active | 180 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
