+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HB1V4R7ARCAP ALUM 4.7UF 20% 35V SMD |
2,463 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 21 mA @ 120 Hz | 35.7 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-HC1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
3,720 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HC | Active | 3.3 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEU-FR1A271CAP ALUM 270UF 20% 10V RADIAL |
6,933 | - |
|
Техническая |
Bulk | FR-A | Active | 270 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|

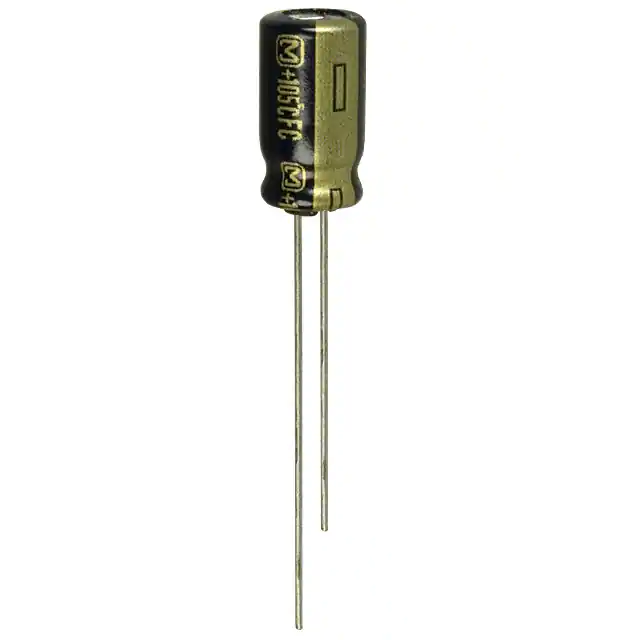

EEU-FC0J221CAP ALUM 220UF 20% 6.3V RADIAL |
3,884 | - |
|
Техническая |
Bulk | FC | Active | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 188.5 mA @ 120 Hz | 290 mA @ 100 kHz | 350 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.441 (11.20mm) | - | Through Hole |
|

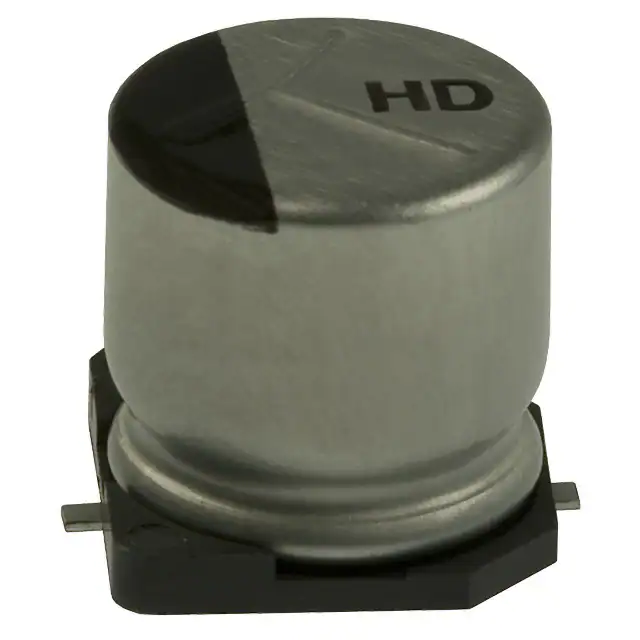

EEE-HD1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
3,932 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 3.3 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | 12 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEU-FR0J221BCAP ALUM 220UF 20% 6.3V RAD TH |
9,786 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 220 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.197 (5.00mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
EEU-FR1A271BCAP ALUM 270UF 20% 10V RADIAL TH |
2,055 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 270 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.197 (5.00mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
EEE-HBV6R8UARCAP ALUM 6.8UF 20% 35V SMD |
3,605 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 6.8 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 42.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-1CA470APCAP ALUM 47UF 20% 16V SMD |
4,621 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-1EA330APCAP ALUM 33UF 20% 25V SMD |
2,004 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECE-A1AN101XCAP ALUM 100UF 20% 10V RADIAL |
3,203 | - |
|
Техническая |
Bulk | SU | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.441 (11.20mm) | - | Through Hole |
|
EEU-EB1A471SCAP ALUM 470UF 20% 10V RADIAL |
4,227 | - |
|
Техническая |
Bulk | EB-A | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 234 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FS1A272LBCAP ALUM 2700UF 20% 10V RADIAL |
1,850 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 2700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FN1E270URCAP ALUM 27UF 20% 25V SMD |
15,621 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 27 µF | ±20% | 25 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-FN1A560URCAP ALUM 56UF 20% 10V SMD |
3,841 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 56 µF | ±20% | 10 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
ECE-A1HN100UICAP ALUM 10UF 20% 50V RADIAL |
1,927 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | SU | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 50 mA @ 120 Hz | 85 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
|
EEE-HBJ101UARCAP ALUM 100UF 20% 6.3V SMD |
2,651 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 42 mA @ 120 Hz | 71.4 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEU-FC0J821LCAP ALUM 820UF 20% 6.3V RADIAL |
6,936 | - |
|
Техническая |
Bulk | FC | Active | 820 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 547.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
EEU-FC1C391CAP ALUM 390UF 20% 16V RADIAL |
1,555 | - |
|
Техническая |
Bulk | FC | Active | 390 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 566.3 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FC1E271CAP ALUM 270UF 20% 25V RADIAL |
1,185 | - |
|
Техническая |
Bulk | FC | Active | 270 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 490.8 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
