| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

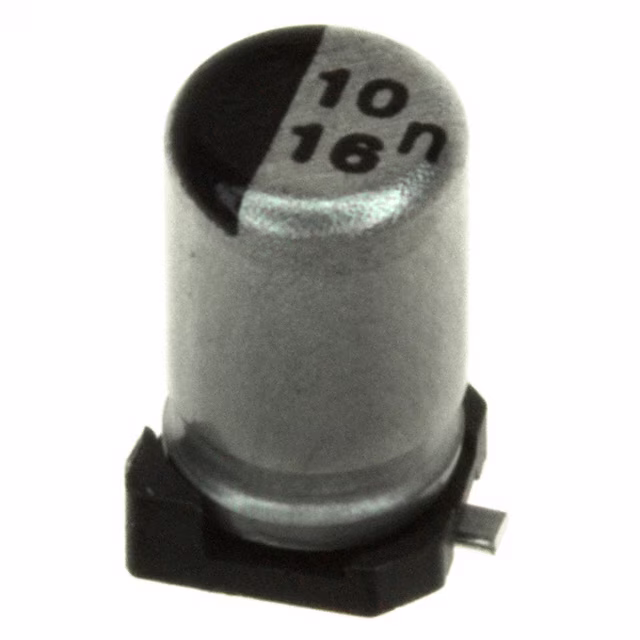

ECE-V1CS100SRCAP ALUM 10UF 20% 16V SMD |
3,438 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | - | - | - | 0.118 Dia (3.00mm) | 0.213 (5.40mm) | 0.130 L x 0.130 W (3.30mm x 3.30mm) | Surface Mount |
|
ECE-V1CA100SRCAP ALUM 10UF 20% 16V SMD |
3,966 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
ECE-V1CA220SRCAP ALUM 22UF 20% 16V SMD |
3,517 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
ECE-V1CA470SPCAP ALUM 47UF 20% 16V SMD |
3,688 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

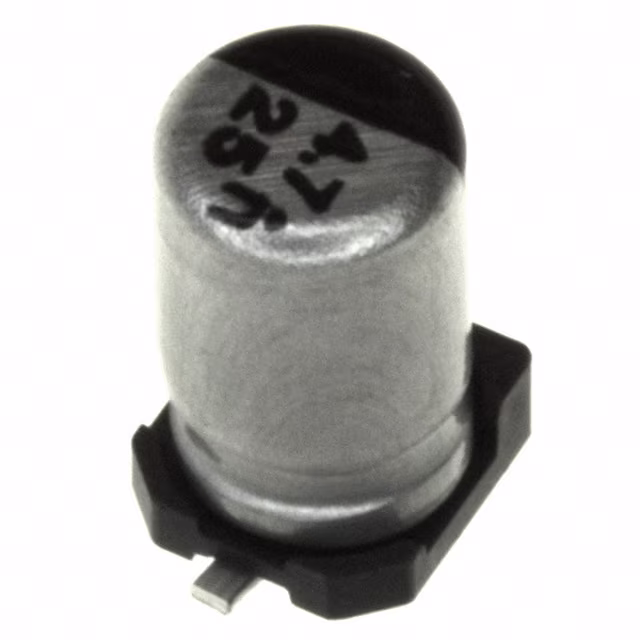

ECE-V1ES4R7SRCAP ALUM 4.7UF 20% 25V SMD |
3,889 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 mA @ 120 Hz | - | - | - | 0.118 Dia (3.00mm) | 0.213 (5.40mm) | 0.130 L x 0.130 W (3.30mm x 3.30mm) | Surface Mount |
|
|
ECE-V1EA4R7SRCAP ALUM 4.7UF 20% 25V SMD |
2,381 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

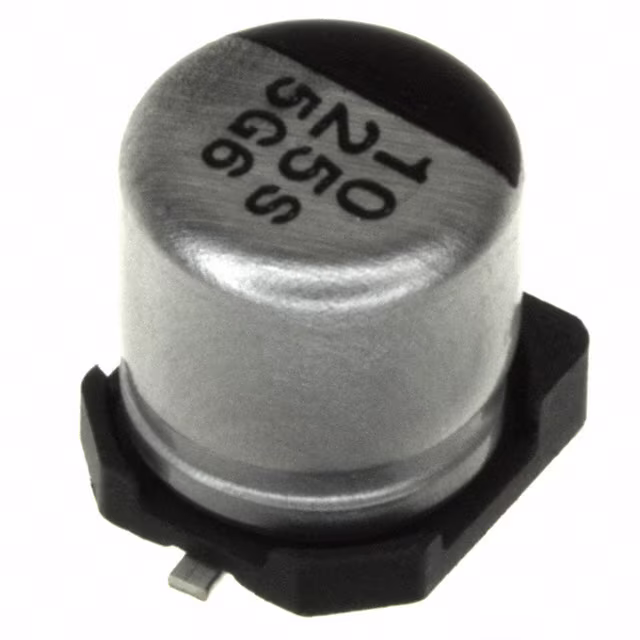

ECE-V1EA100SRCAP ALUM 10UF 20% 25V SMD |
2,237 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
ECE-V1EA220SPCAP ALUM 22UF 20% 25V SMD |
2,041 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 22 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEV-FC1V1R0RCAP ALUM 1UF 20% 35V SMD |
3,495 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 1 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | - | 3 Ohms | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEV-FC1V2R2RCAP ALUM 2.2UF 20% 35V SMD |
3,350 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | - | 3 Ohms | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEV-FC1V3R3RCAP ALUM 3.3UF 20% 35V SMD |
2,268 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 3.3 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | - | 3 Ohms | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEV-FC1V6R8RCAP ALUM 6.8UF 20% 35V SMD |
3,289 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 6.8 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 71.25 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
ECE-V1EA330SPCAP ALUM 33UF 20% 25V SMD |
3,643 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

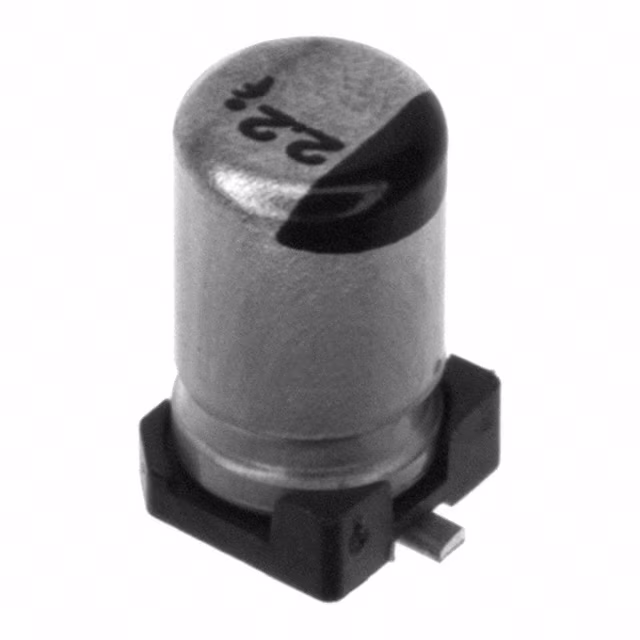

ECE-V1VS2R2SRCAP ALUM 2.2UF 20% 35V SMD |
2,345 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | - | - | - | 0.118 Dia (3.00mm) | 0.213 (5.40mm) | 0.130 L x 0.130 W (3.30mm x 3.30mm) | Surface Mount |
|

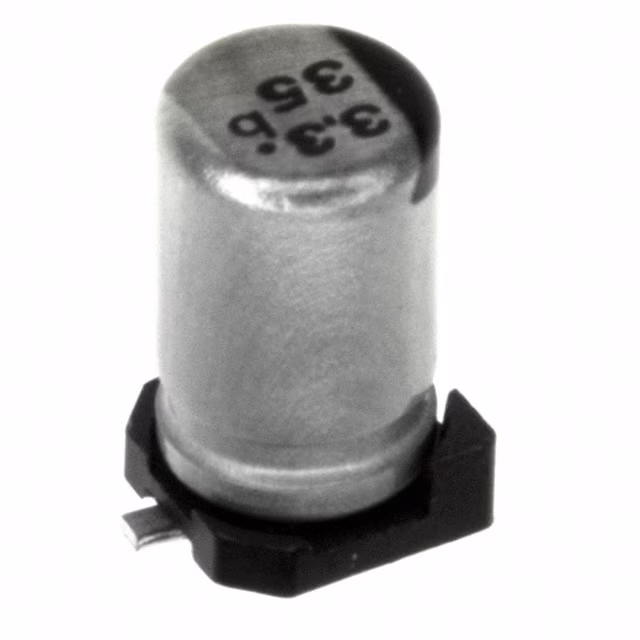

ECE-V1VS3R3SRCAP ALUM 3.3UF 20% 35V SMD |
2,797 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 3.3 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | - | - | - | 0.118 Dia (3.00mm) | 0.213 (5.40mm) | 0.130 L x 0.130 W (3.30mm x 3.30mm) | Surface Mount |
|
|
ECE-V1VA4R7SRCAP ALUM 4.7UF 20% 35V SMD |
2,949 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

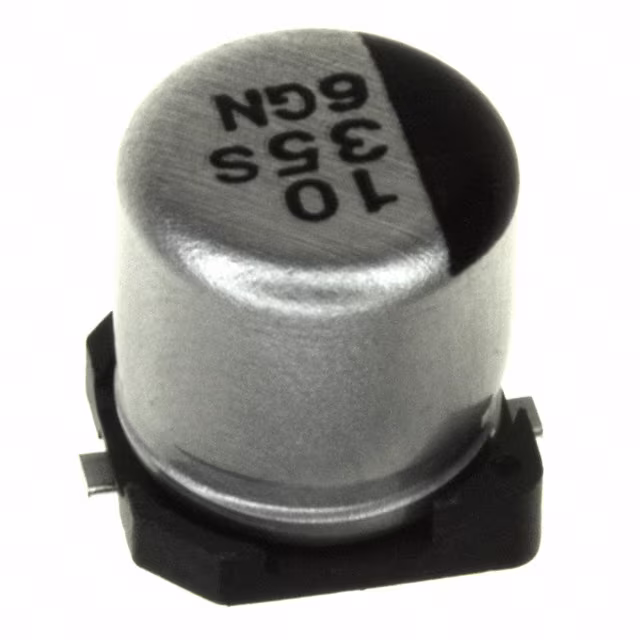

ECE-V1VA100SRCAP ALUM 10UF 20% 35V SMD |
2,356 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
ECE-V1VA220SPCAP ALUM 22UF 20% 35V SMD |
2,934 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

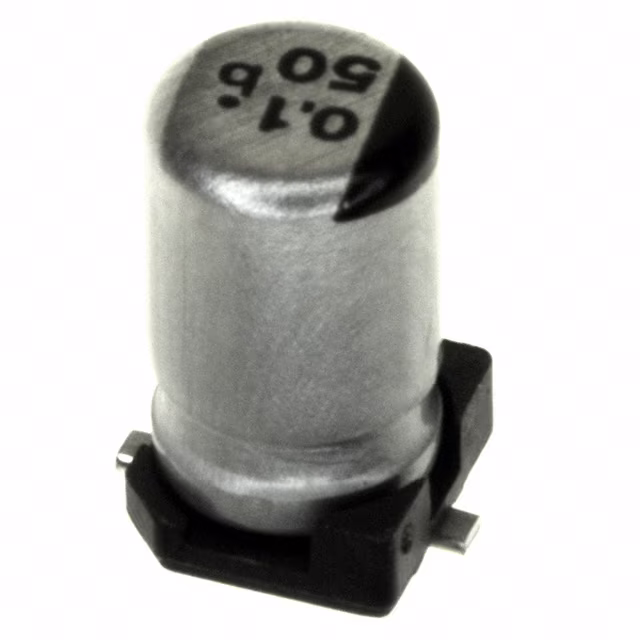

ECE-V1HS0R1SRCAP ALUM 0.1UF 20% 50V SMD |
3,601 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 mA @ 120 Hz | - | - | - | 0.118 Dia (3.00mm) | 0.213 (5.40mm) | 0.130 L x 0.130 W (3.30mm x 3.30mm) | Surface Mount |
|
|
ECE-V1HA0R1SRCAP ALUM 0.1UF 20% 50V SMD |
3,203 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | VS | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
