| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEG-A1H682CGECAP ALUM 6800UF 20% 50V SCREW |
3,451 | - |
|
Bulk | AA | Obsolete | 6800 µF | ±20% | 50 V | 65mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.42 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount | |
|

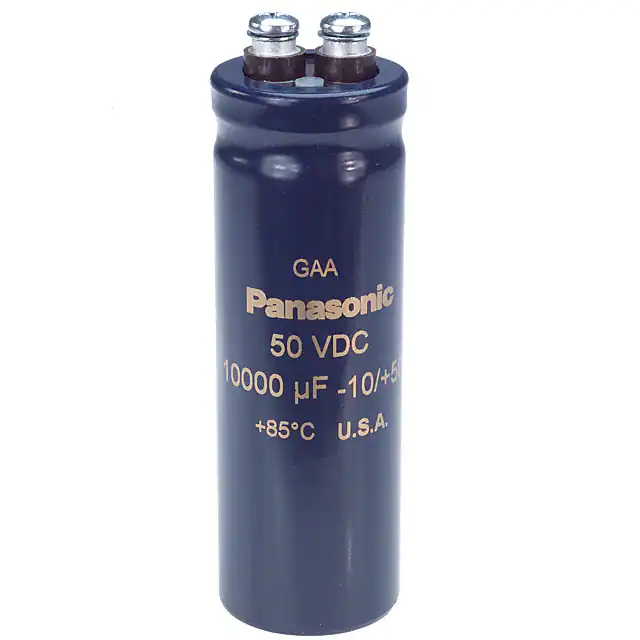

EEG-A1H103CKECAP ALUM 10000UF 20% 50V SCREW |
2,745 | - |
|
Bulk | AA | Obsolete | 10000 µF | ±20% | 50 V | 44mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.79 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|

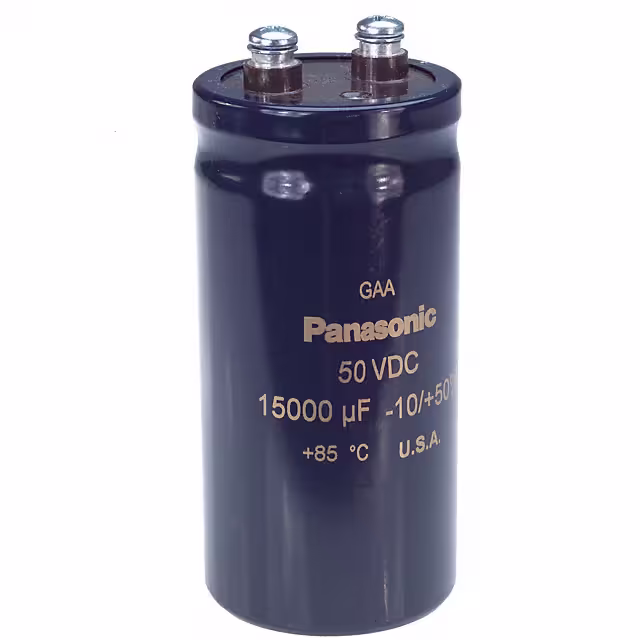

EEG-A1H153FKECAP ALUM 15000UF 20% 50V SCREW |
3,372 | - |
|
Bulk | AA | Obsolete | 15000 µF | ±20% | 50 V | 29mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.35 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|

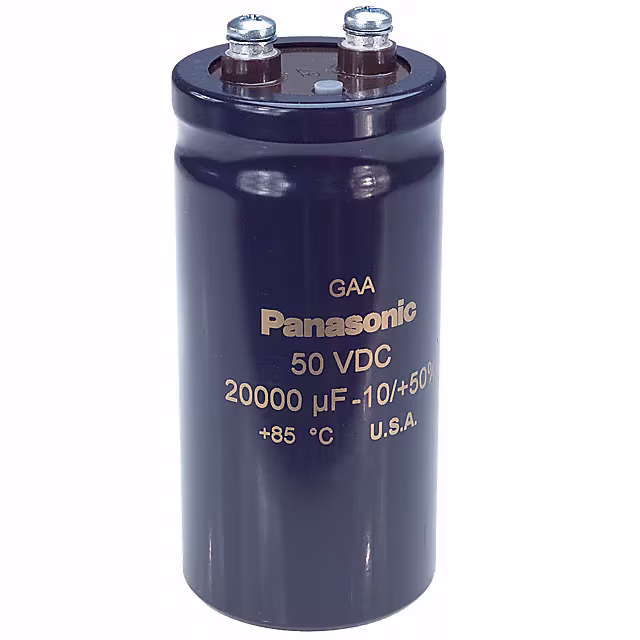

EEG-A1H203FKECAP ALUM 20000UF 20% 50V SCREW |
2,627 | - |
|
Bulk | AA | Obsolete | 20000 µF | ±20% | 50 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.15 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|

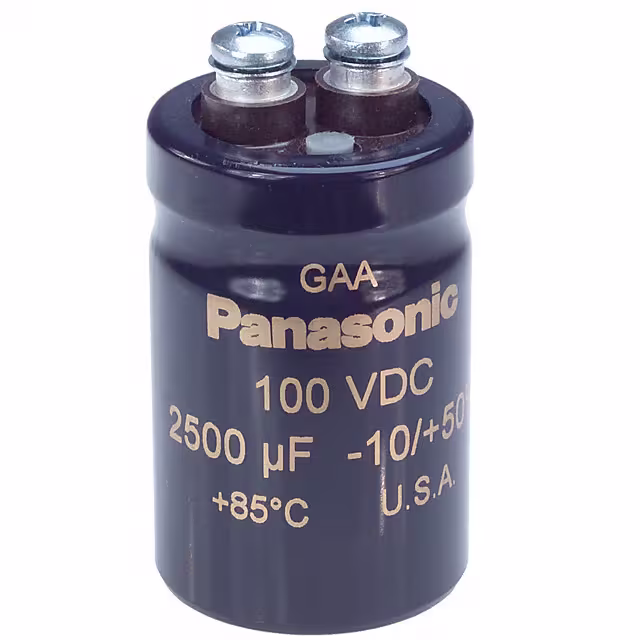

EEG-A2A252CCECAP ALUM 2500UF 20% 100V SCREW |
3,018 | - |
|
Bulk | AA | Obsolete | 2500 µF | ±20% | 100 V | 117mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.12 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount | |
|

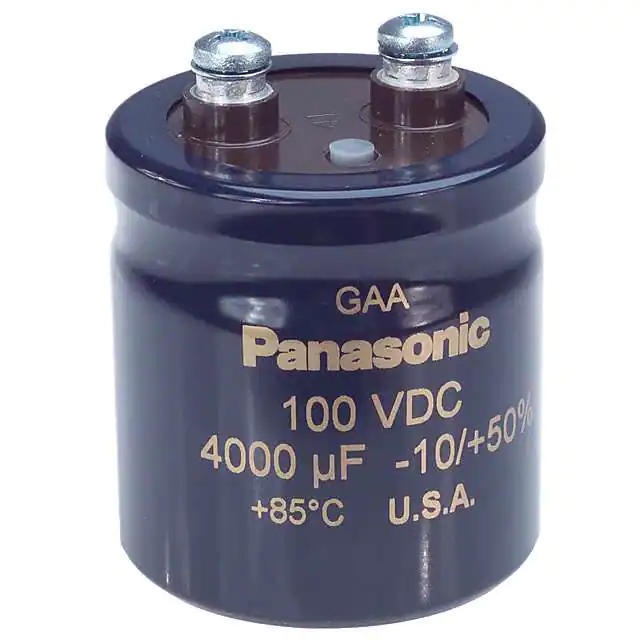

EEG-A2A402FCECAP ALUM 4000UF 20% 100V SCREW |
3,211 | - |
|
Bulk | AA | Obsolete | 4000 µF | ±20% | 100 V | 73mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.53 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 2.125 (53.98mm) | - | Chassis Mount | |
|

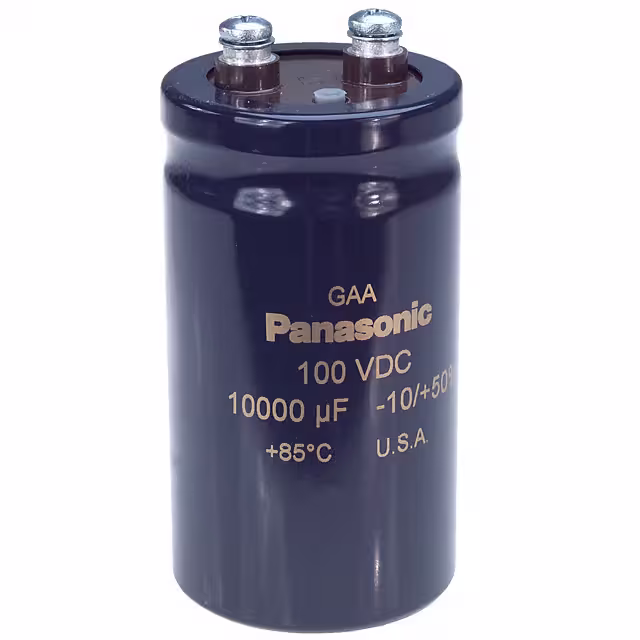

EEG-A2A103FHECAP ALUM 10000UF 20% 100V SCREW |
2,999 | - |
|
Bulk | AA | Obsolete | 10000 µF | ±20% | 100 V | 29mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.16 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount | |
|

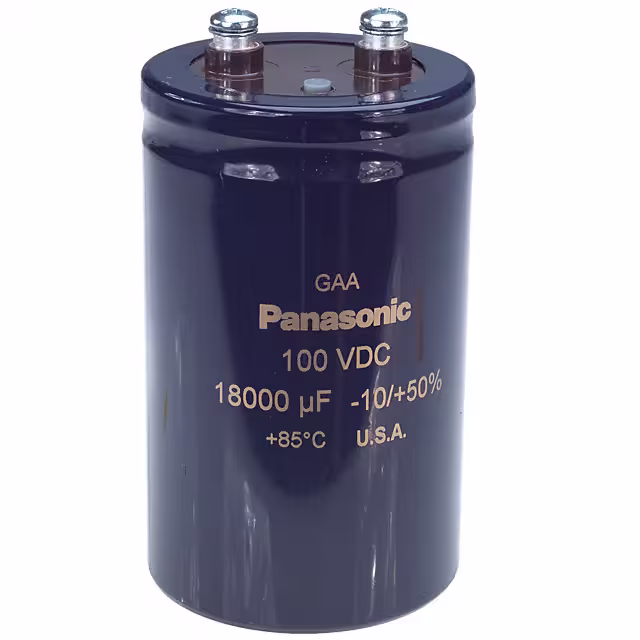

EEG-A2A183GKECAP ALUM 18000UF 20% 100V SCREW |
3,361 | - |
|
Bulk | AA | Obsolete | 18000 µF | ±20% | 100 V | 16mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.85 A @ 120 Hz | - | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|

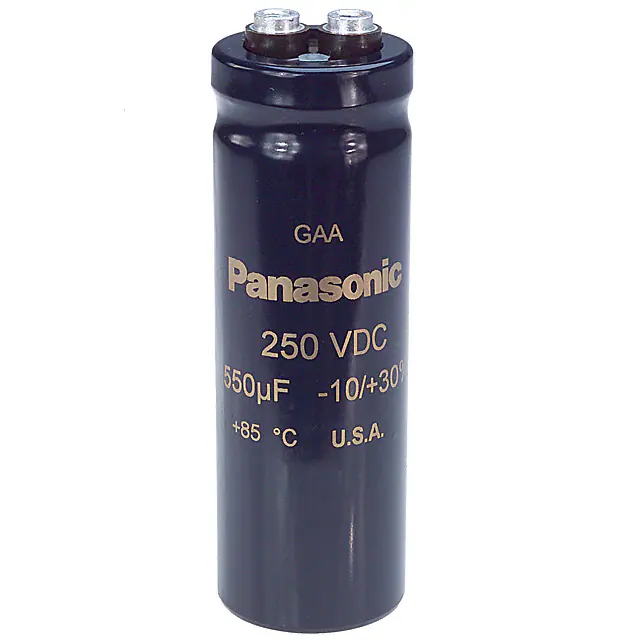

EEG-A2E551CKECAP ALUM 550UF 20% 250V SCREW |
3,809 | - |
|
Bulk | AA | Obsolete | 550 µF | ±20% | 250 V | 401mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.91 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|

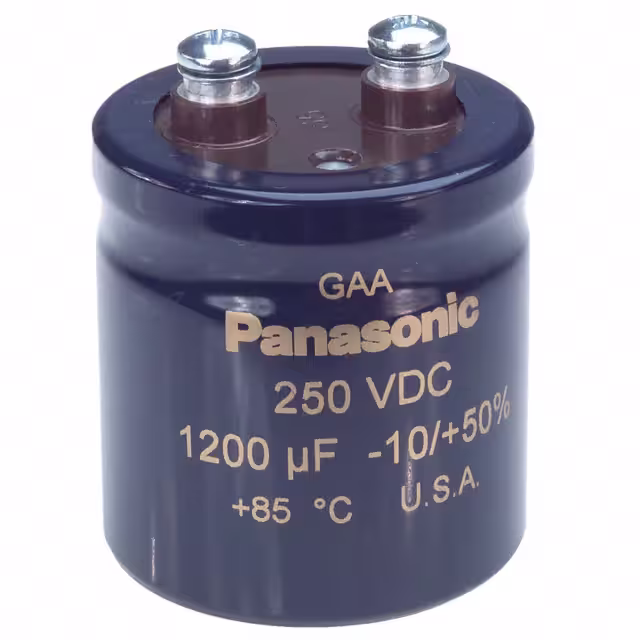

EEG-A2E122FCECAP ALUM 1200UF 20% 250V SCREW |
2,961 | - |
|
Bulk | AA | Obsolete | 1200 µF | ±20% | 250 V | 184mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 2.125 (53.98mm) | - | Chassis Mount | |
|

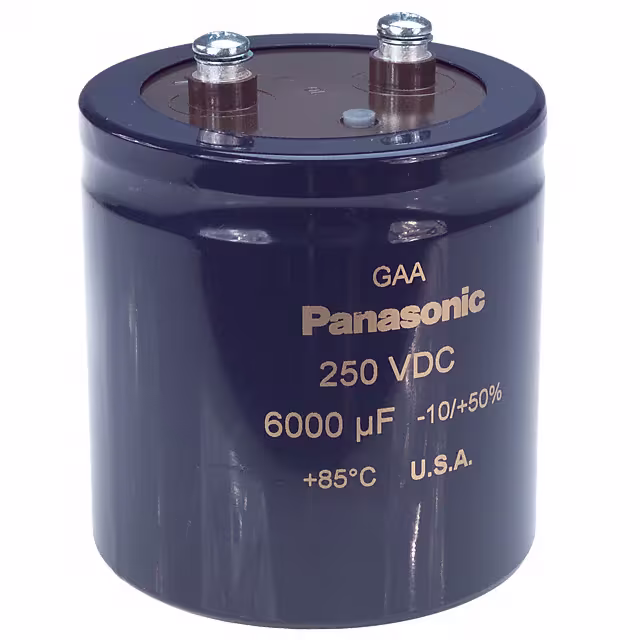

EEG-A2E602HGECAP ALUM 6000UF 20% 250V SCREW |
3,377 | - |
|
Bulk | AA | Obsolete | 6000 µF | ±20% | 250 V | 36mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 3.125 (79.38mm) | - | Chassis Mount | |
|

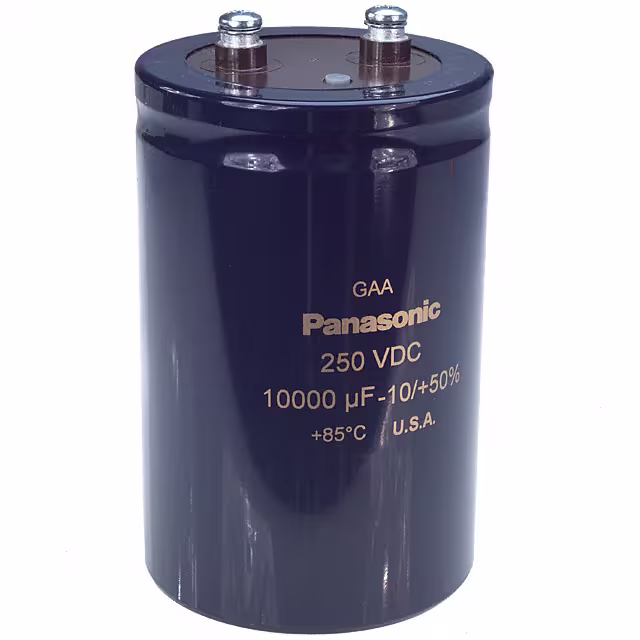

EEG-A2E103HLECAP ALUM 10000UF 20% 250V SCREW |
2,002 | - |
|
Bulk | AA | Obsolete | 10000 µF | ±20% | 250 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.75 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.625 (117.48mm) | - | Chassis Mount | |
|

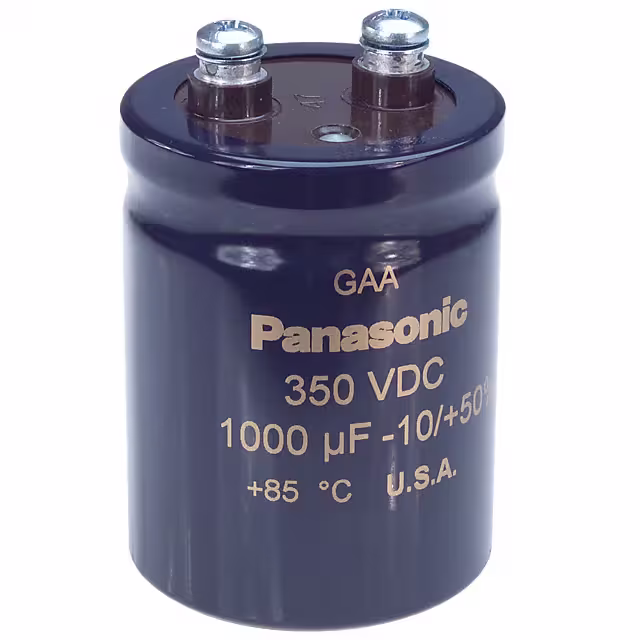

EEG-A2V102FEECAP ALUM 1000UF 20% 350V SCREW |
3,880 | - |
|
Bulk | AA | Obsolete | 1000 µF | ±20% | 350 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.11 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 2.625 (66.68mm) | - | Chassis Mount | |
|

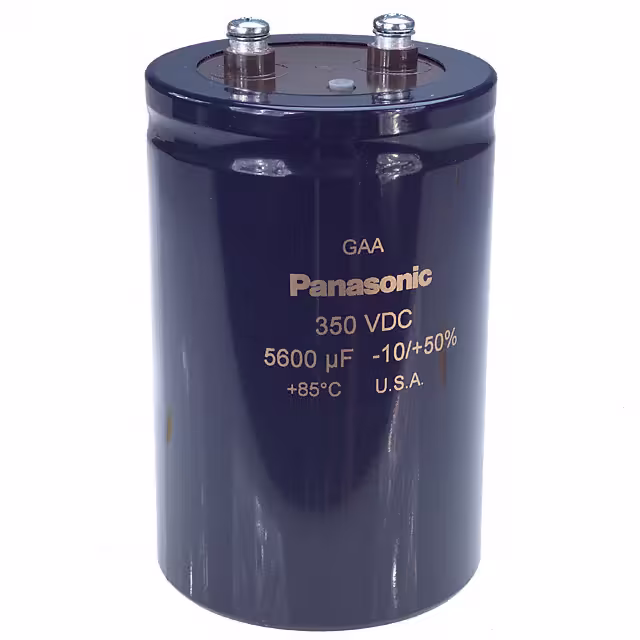

EEG-A2V562HLECAP ALUM 5600UF 20% 350V SCREW |
3,393 | - |
|
Bulk | AA | Obsolete | 5600 µF | ±20% | 350 V | 39mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.06 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.625 (117.48mm) | - | Chassis Mount | |
|
|
EEG-A2W451FGECAP ALUM 450UF 20% 450V SCREW |
3,324 | - |
|
Bulk | AA | Obsolete | 450 µF | ±20% | 450 V | 491mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount | |
|

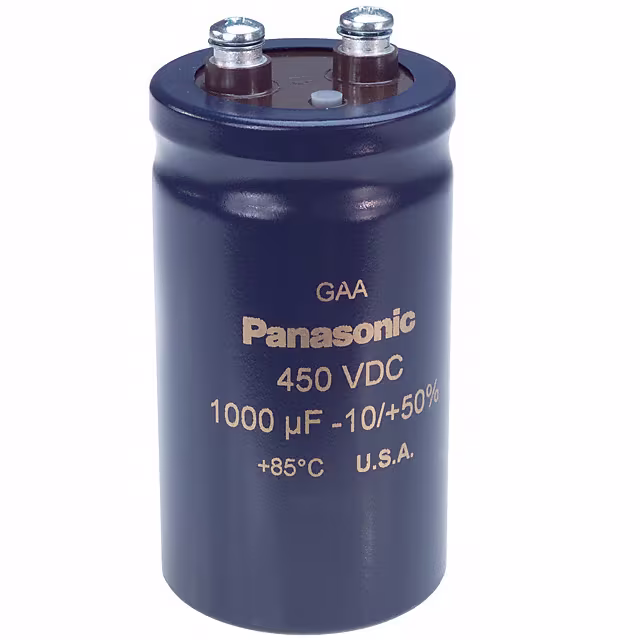

EEG-A2W102FHECAP ALUM 1000UF 20% 450V SCREW |
2,441 | - |
|
Bulk | AA | Obsolete | 1000 µF | ±20% | 450 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.85 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount | |
|

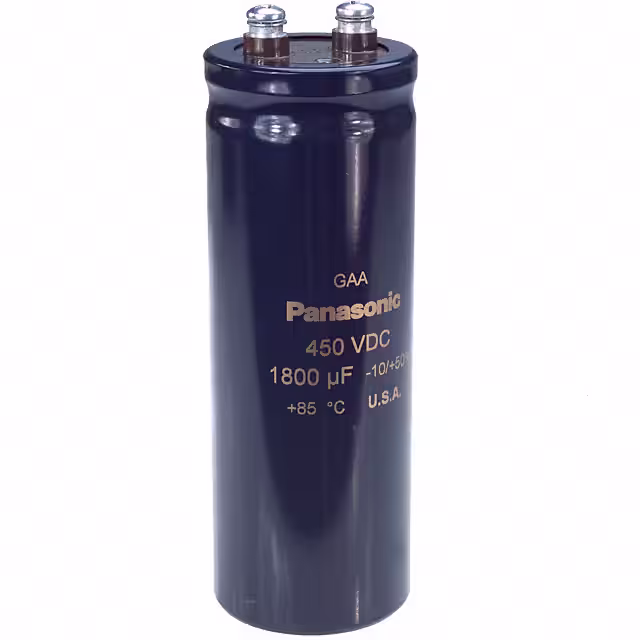

EEG-A2W182FPECAP ALUM 1800UF 20% 450V SCREW |
2,232 | - |
|
Bulk | AA | Obsolete | 1800 µF | ±20% | 450 V | 122mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.47 A @ 120 Hz | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W182HPECAP ALUM 1800UF 20% 450V SCREW |
3,837 | - |
|
Bulk | AA | Obsolete | 1800 µF | ±20% | 450 V | 122mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.46 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W222GKECAP ALUM 2200UF 20% 450V SCREW |
2,492 | - |
|
Bulk | AA | Obsolete | 2200 µF | ±20% | 450 V | 100mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.27 A @ 120 Hz | - | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|
|
EEG-A2W242HNECAP ALUM 2400UF 20% 450V SCREW |
2,947 | - |
|
Bulk | AA | Obsolete | 2400 µF | ±20% | 450 V | 92mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.74 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
