+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-FK1E101PCAP ALUM 100UF 20% 25V SMD |
3,045 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 300 mA @ 100 kHz | 260 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1E221PCAP ALUM 220UF 20% 25V SMD |
3,129 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1E331PCAP ALUM 330UF 20% 25V SMD |
2,508 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-FK1E471PCAP ALUM 470UF 20% 25V SMD |
3,152 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEV-FK1V4R7RCAP ALUM 4.7UF 20% 35V SMD |
2,236 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 67.5 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEV-FK1V100URCAP ALUM 10UF 20% 35V SMD |
3,727 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 67.5 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEV-FK1V100RCAP ALUM 10UF 20% 35V SMD |
3,924 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
EEV-FK1V220RCAP ALUM 22UF 20% 35V SMD |
2,439 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEV-FK1V330PCAP ALUM 33UF 20% 35V SMD |
2,425 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1V470PCAP ALUM 47UF 20% 35V SMD |
2,807 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1V101PCAP ALUM 100UF 20% 35V SMD |
2,762 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1V221PCAP ALUM 220UF 20% 35V SMD |
3,386 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1V331PCAP ALUM 330UF 20% 35V SMD |
2,644 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EET-UQ2D122DACAP ALUM 1200UF 20% 200V SNAP |
3,063 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | - | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECE-S2WB221EACAP ALUM 220UF |
3,385 | - |
|
Bulk | - | Obsolete | 220 µF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ECO-S2WP101BACAP ALUM 100UF 20% 450V SNAP |
3,234 | - |
|
Техническая |
Bulk | TS-UP | Obsolete | 100 µF | ±20% | 450 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
EET-UQ2W101BACAP ALUM 100UF 20% 450V SNAP |
3,421 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 100 µF | ±20% | 450 V | 1.989Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.302 A @ 10 kHz | - | - | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

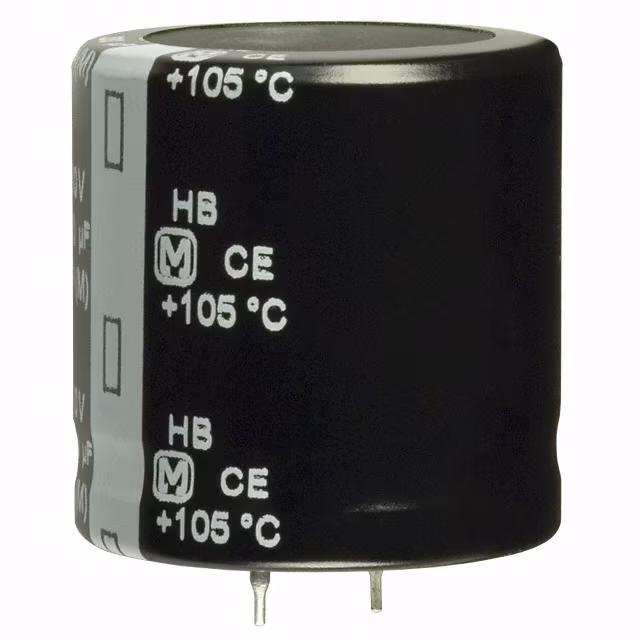

ECO-S2DB122EHCAP ALUM 1200UF 20% 200V SNAP |
3,404 | - |
|
Bulk | TS-HB | Obsolete | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | - | - | Through Hole | |
|
|
EEV-FK1H4R7RCAP ALUM 4.7UF 20% 50V SMD |
2,756 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 67.5 mA @ 120 Hz | 60 mA @ 100 kHz | 2.9 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEV-FK1H100URCAP ALUM 10UF 20% 50V SMD |
3,569 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 85 mA @ 100 kHz | 1.52 Ohms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
