| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

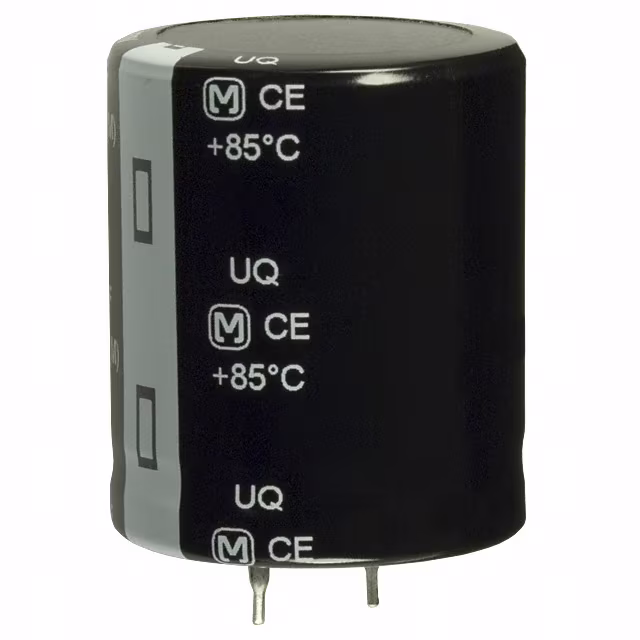

EET-UQ2W221CFCAP ALUM 220UF 20% 450V SNAP |
2,384 | - |
|
Техническая |
Bulk,Bulk | TS-UQ | Obsolete | 220 µF | ±20% | 450 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | - | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
EET-UQ2W331DFCAP ALUM 330UF 20% 450V SNAP |
3,245 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.632 A @ 10 kHz | - | - | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
EET-UQ2W681EACAP ALUM 680UF 20% 450V SNAP |
3,829 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 680 µF | ±20% | 450 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.02 A @ 120 Hz | 4.228 A @ 10 kHz | - | - | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
EEE-HB1HR10RCAP ALUM 0.1UF 20% 50V SMD |
3,409 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 mA @ 120 Hz | 1.7 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HB1HR22RCAP ALUM 0.22UF 20% 50V SMD |
3,557 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | 3.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HB1HR33RCAP ALUM 0.33UF 20% 50V SMD |
3,558 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | 5.1 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HB1HR47RCAP ALUM 0.47UF 20% 50V SMD |
3,120 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 5 mA @ 120 Hz | 8.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-TG1A102QCAP ALUM 1000UF 20% 10V SMD |
2,925 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 1000 µF | ±20% | 10 V | 120mOhm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
|
EEE-TG1A152UQCAP ALUM 1500UF 20% 10V SMD |
3,265 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 1500 µF | ±20% | 10 V | 120mOhm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
|
EEE-TG1A222MCAP ALUM 2200UF 20% 10V SMD |
3,548 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 2200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | - | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EEE-TG1A332MCAP ALUM 3300UF 20% 10V SMD |
3,949 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 3300 µF | ±20% | 10 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | - | - | - | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEE-TG1A332UMCAP ALUM 3300UF 20% 10V SMD |
3,098 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 3300 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | - | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EEE-TG1A472MCAP ALUM 4700UF 20% 10V SMD |
3,642 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 4700 µF | ±20% | 10 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | - | - | - | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEE-TG1C102MCAP ALUM 1000UF 20% 16V SMD |
2,917 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 1000 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | - | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EEE-TG1C102UQCAP ALUM 1000UF 20% 16V SMD |
3,660 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 1000 µF | ±20% | 16 V | 120mOhm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount | |
|
|
EEE-TG1C222MCAP ALUM 2200UF 20% 16V SMD |
3,547 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 2200 µF | ±20% | 16 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | - | - | - | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEE-TG1C222UMCAP ALUM 2200UF 20% 16V SMD |
2,757 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 2200 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | - | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EEE-TG1C331QCAP ALUM 330UF 20% 16V SMD |
3,145 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 330 µF | ±20% | 16 V | 120mOhm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount | |
|
|
EEE-TG1C332MCAP ALUM 3300UF 20% 16V SMD |
3,453 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 3300 µF | ±20% | 16 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | - | - | - | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEE-TG1C471QCAP ALUM 470UF 20% 16V SMD |
3,829 | - |
|
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 470 µF | ±20% | 16 V | 120mOhm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
