+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2C122LACAP ALUM 1200UF 20% 160V SNAP |
2,621 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 1200 µF | ±20% | 160 V | 180mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EET-HC2G181JACAP ALUM 180UF 20% 400V SNAP |
2,777 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 180 µF | ±20% | 400 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
EEE-TP1E182VCAP ALUM 1800UF 20% 25V SMD |
125 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 1800 µF | ±20% | 25 V | 47mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EET-UQ2C122HACAP ALUM 1200UF 20% 160V SNAP |
2,511 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
EET-HC2C122HACAP ALUM 1200UF 20% 160V SNAP |
3,415 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

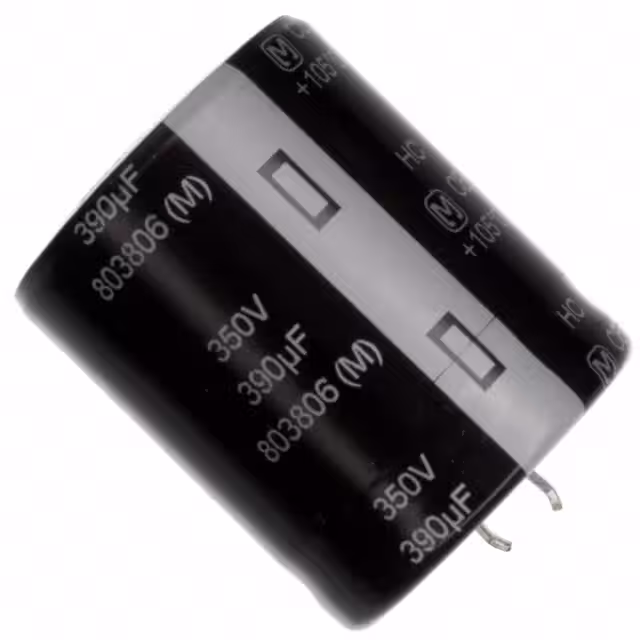

EET-HC2V391KACAP ALUM 390UF 20% 350V SNAP |
2,647 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 350 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
EET-HC2G221HFCAP ALUM 220UF 20% 400V SNAP |
3,886 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 220 µF | ±20% | 400 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
EET-HC2S181HACAP ALUM 180UF 20% 420V SNAP |
2,425 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 180 µF | ±20% | 420 V | 1.103Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.274 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
EET-HC2G221HACAP ALUM 220UF 20% 400V SNAP |
2,887 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 220 µF | ±20% | 400 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
EET-HC2S271JACAP ALUM 270UF 20% 420V SNAP |
2,080 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

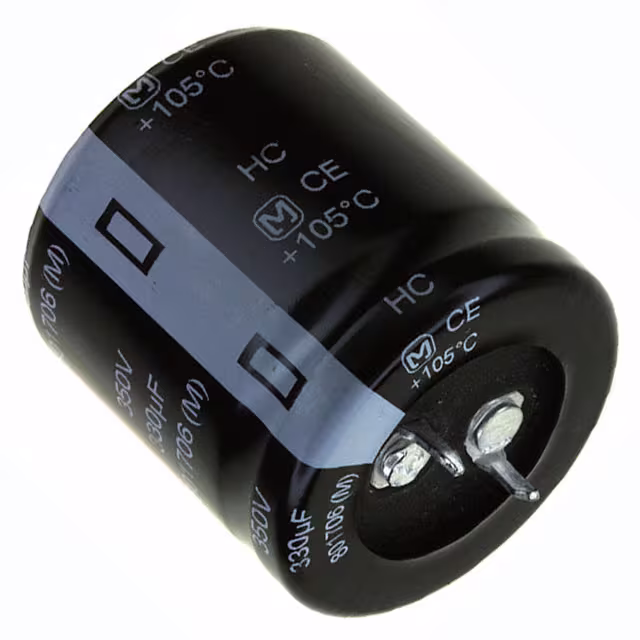

EET-HC2V331KACAP ALUM 330UF 20% 350V SNAP |
100 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 330 µF | ±20% | 350 V | 502mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
EET-HC2V821LACAP ALUM 820UF 20% 350V SNAP |
3,639 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 820 µF | ±20% | 350 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
EET-HC2G331LACAP ALUM 330UF 20% 400V SNAP |
2,420 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 330 µF | ±20% | 400 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.016 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
EET-UQ2S391JACAP ALUM 390UF 20% 420V SNAP |
2,798 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
EET-HC2G561LACAP ALUM 560UF 20% 400V SNAP |
3,814 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 560 µF | ±20% | 400 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

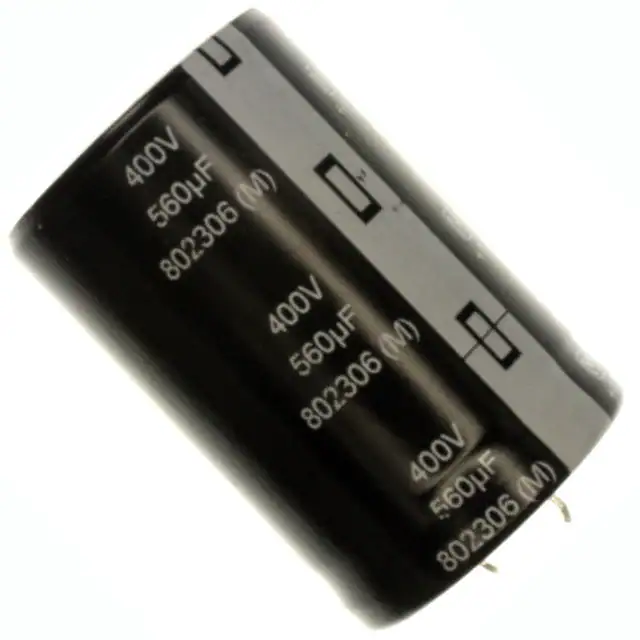

EET-HC2G561KFCAP ALUM 560UF 20% 400V SNAP |
3,946 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 560 µF | ±20% | 400 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
EEU-FR1H121LCAP ALUM 120UF 20% 50V RADIAL |
416 | - |
|
Box | FR | Active | 120 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 798 mA @ 120 Hz | 1.14 A @ 100 kHz | 45 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole | |
|
EEE-1AA330WRCAP ALUM 33UF 20% 10V SMD |
21,850 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 29 mA @ 120 Hz | 49.3 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-1EA100SRCAP ALUM 10UF 20% 25V SMD |
230 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
EEE-1VA100SRCAP ALUM 10UF 20% 35V SMD |
135 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | 51 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
