+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMZR6R3ADA681MF80GCAP ALUM 680UF 20% 6.3V SMD |
2,747 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 680 µF | ±20% | 6.3 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EMZR160ADA331MF80GCAP ALUM 330UF 20% 16V SMD |
3,031 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 330 µF | ±20% | 16 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

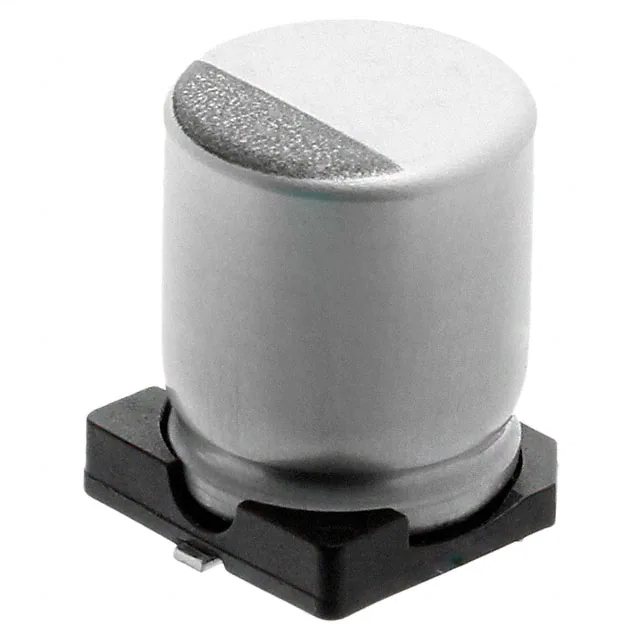

EMHK350ADA101MF80GCAP ALUM 100UF 20% 35V SMD |
2,136 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MHK | Active | 100 µF | ±20% | 35 V | 300mOhm @ 400kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 400 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EMZR250ADA221MF80GCAP ALUM 220UF 20% 25V SMD |
3,518 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 220 µF | ±20% | 25 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EMZR350ADA151MF80GCAP ALUM 150UF 20% 35V SMD |
2,731 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 150 µF | ±20% | 35 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 240 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EMVH101ARA680MKG5SCAP ALUM 68UF 20% 100V SMD |
800 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVH | Active | 68 µF | ±20% | 100 V | 260mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 220 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.630 (16.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
EKZH250ELL102MJ25SCAP ALUM 1000UF 20% 25V RADIAL |
3,480 | - |
|
Техническая |
Bulk | KZH | Active | 1000 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 2.25 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|

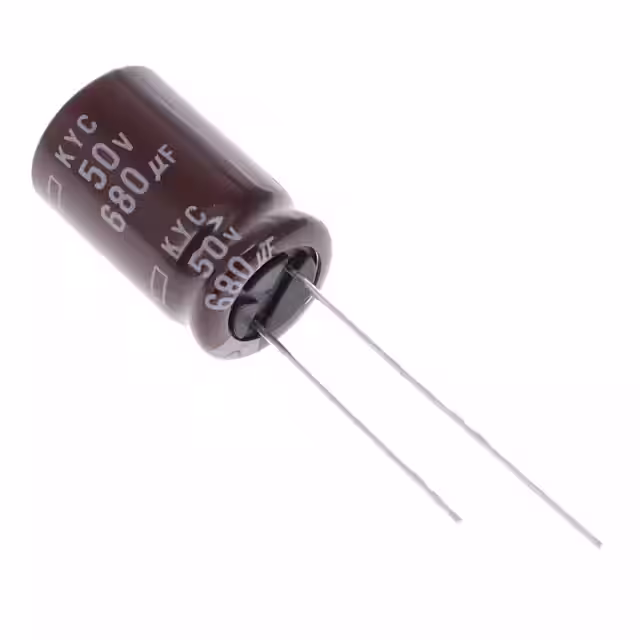

EKYC500ELL681MK20SCAP ALUM 680UF 20% 50V RADIAL |
2,283 | - |
|
Техническая |
Bulk | KYC | Active | 680 µF | ±20% | 50 V | 50mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
EMZR500ADA101MF80GCAP ALUM 100UF 20% 50V SMD |
3,317 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 100 µF | ±20% | 50 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 140 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EMZR350ARA101MF61GCAP ALUM 100UF 20% 35V SMD |
3,704 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 100 µF | ±20% | 35 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EMZR500ARA470MF61GCAP ALUM 47UF 20% 50V SMD |
2,287 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 47 µF | ±20% | 50 V | 680mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 195 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EMVA101ARA101MKE0SCAP ALUM 100UF 20% 100V SMD |
3,993 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVA | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 660 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
|
EMVA250ARA102MKE0SCAP ALUM 1000UF 20% 25V SMD |
2,428 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVA | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.23 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
EKZE101ELL101MK16SCAP ALUM 100UF 20% 100V RADIAL |
2,957 | - |
|
Техническая |
Bulk | KZE | Active | 100 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 750 mA @ 100 kHz | 110 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.630 (16.00mm) | - | Through Hole |
|
|
EKZE350ELL681MK20SCAP ALUM 680UF 20% 35V RADIAL |
2,533 | - |
|
Техническая |
Bulk | KZE | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.416 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
EPAG201ELL101MJ35SCAP ALUM 100UF 20% 200V RADIAL |
3,492 | - |
|
Техническая |
Bulk | PAG | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 765 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
EKZE500ELL471MK20SCAP ALUM 470UF 20% 50V RADIAL |
2,114 | - |
|
Техническая |
Bulk | KZE | Active | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.025 A @ 120 Hz | 2.05 A @ 100 kHz | 27 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
ELXY500ELL471MK25SCAP ALUM 470UF 20% 50V RADIAL |
2,856 | - |
|
Техническая |
Bulk | LXY | Active | 470 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 745 mA @ 120 Hz | 1.49 A @ 100 kHz | 44 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
ELXY100ELL222MK25SCAP ALUM 2200UF 20% 10V RADIAL |
2,662 | - |
|
Техническая |
Bulk | LXY | Active | 2200 µF | ±20% | 10 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.2675 A @ 120 Hz | 1.69 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELXZ630ELL471MK30SCAP ALUM 470UF 20% 63V RADIAL |
2,116 | - |
|
Техническая |
Bulk | LXZ | Active | 470 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.045 A @ 120 Hz | 2.09 A @ 100 kHz | 55 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
- Это поможет вам сэкономить время и затраты.
- Надежная упаковка для вашего товара.
- Быстрая и надежная доставка для экономии времени.
- Качественное послепродажное обслуживание.
