| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E37F501CPN562MEE3MCAP ALUM 5600UF 20% 500V SCREW |
2,936 | - |
|
Bulk | U37F | Obsolete | 5600 µF | ±20% | 500 V | 20mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 24.111 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.669 (144.00mm) | - | Chassis Mount | |
|
E37F501CPN392MF92MCAP ALUM 3900UF 20% 500V SCREW |
3,772 | - |
|
Bulk | U37F | Obsolete | 3900 µF | ±20% | 500 V | 25mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 20.022 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 3.661 (93.00mm) | - | Chassis Mount | |
|

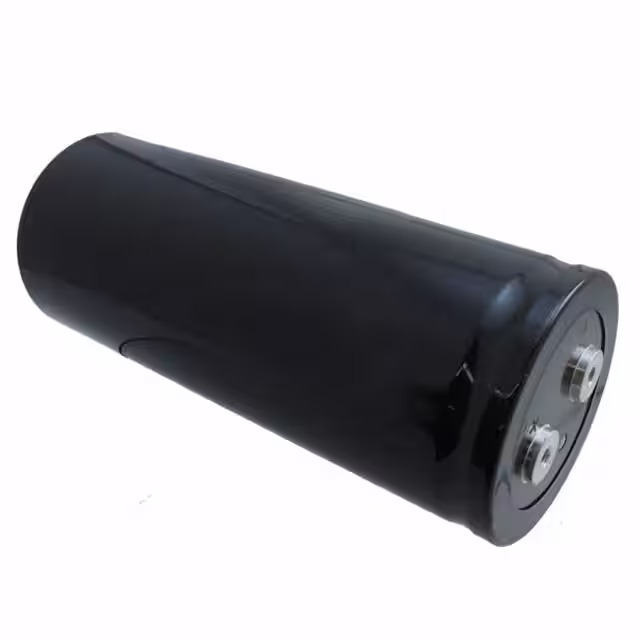

E37F501CPN123MFM9MCAP ALUM 12000UF 20% 500V SCREW |
2,053 | - |
|
Bulk | U37F | Obsolete | 12000 µF | ±20% | 500 V | 8mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.5 A @ 120 Hz | 47.235 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount | |
|

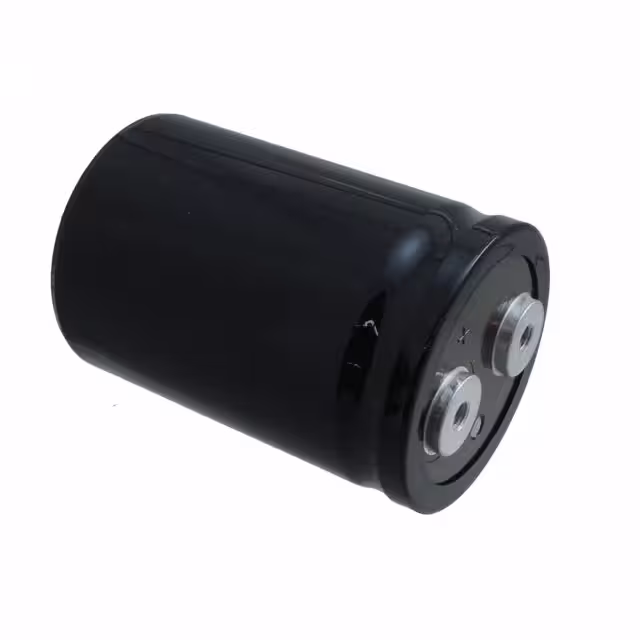

E37L451CPN222MD92MCAP ALUM 2200UF 20% 450V SCREW |
2,946 | - |
|
Техническая |
Bulk | U37L | Obsolete | 2200 µF | ±20% | 450 V | 45mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 120 Hz | 12.267 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.661 (93.00mm) | - | Chassis Mount |
|
E37L451CPN472MEB7MCAP ALUM 4700UF 20% 450V SCREW |
2,573 | - |
|
Техническая |
Bulk | U37L | Obsolete | 4700 µF | ±20% | 450 V | 22mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 120 Hz | 21.291 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.646 (118.00mm) | - | Chassis Mount |
|

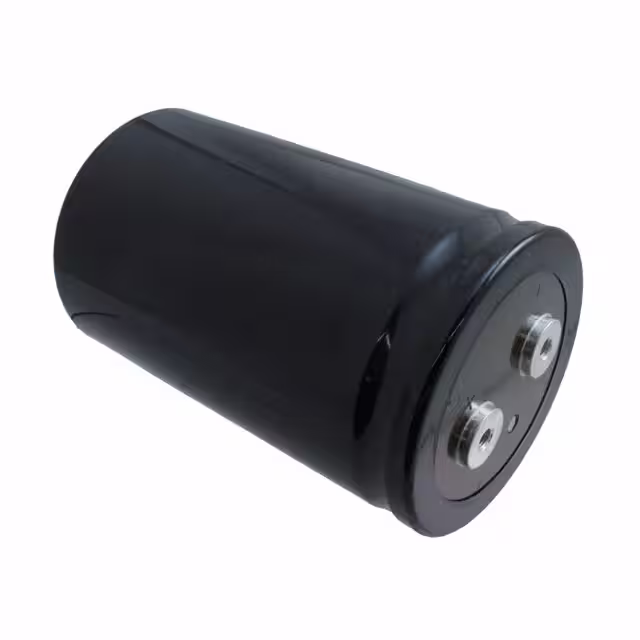

E37L451CPN822MFE3MCAP ALUM 8200UF 20% 450V SCREW |
2,025 | - |
|
Техническая |
Bulk | U37L | Obsolete | 8200 µF | ±20% | 450 V | 13mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 120 Hz | 32.853 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 5.669 (144.00mm) | - | Chassis Mount |
|
|
E37L501CPN182MD92MCAP ALUM 1800UF 20% 500V SCREW |
2,406 | - |
|
Техническая |
Bulk | U37L | Obsolete | 1800 µF | ±20% | 500 V | 55mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 120 Hz | 11.139 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.661 (93.00mm) | - | Chassis Mount |
|

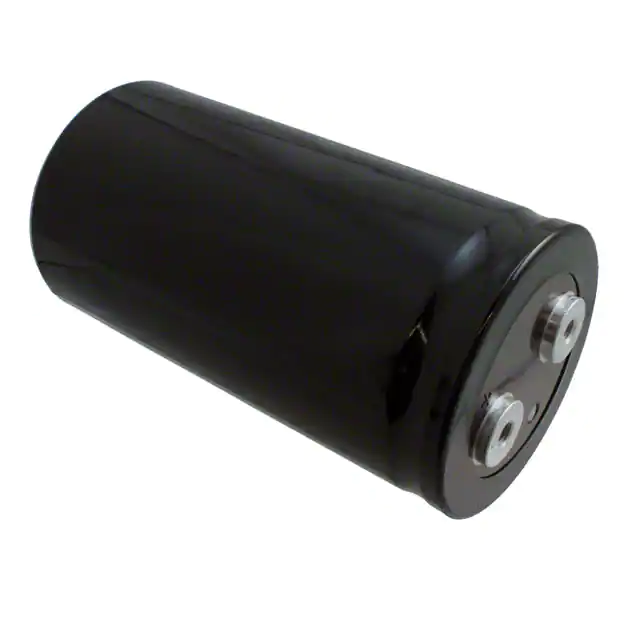

E37L501CPN472MEE3MCAP ALUM 4700UF 20% 500V SCREW |
3,954 | - |
|
Техническая |
Bulk | U37L | Obsolete | 4700 µF | ±20% | 500 V | 22mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.2 A @ 120 Hz | 22.842 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.669 (144.00mm) | - | Chassis Mount |
|

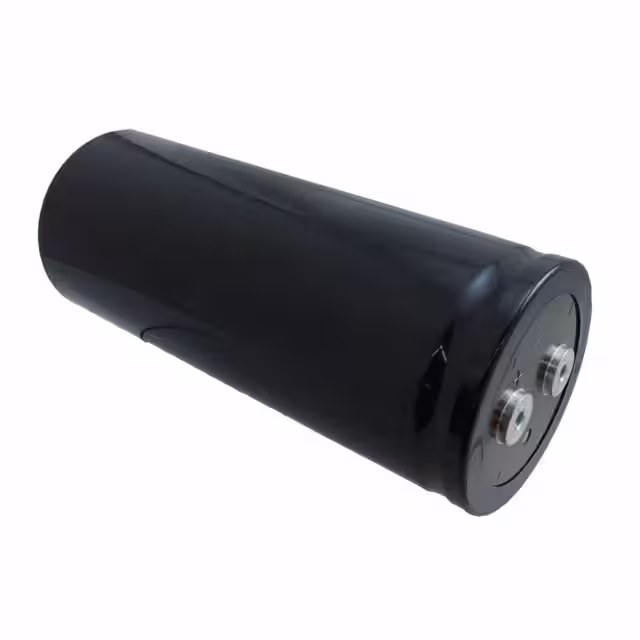

E37L501CPN103MFM9MCAP ALUM 10000UF 20% 500V SCREW |
2,554 | - |
|
Техническая |
Bulk | U37L | Obsolete | 10000 µF | ±20% | 500 V | 9mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.1 A @ 120 Hz | 46.671 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|

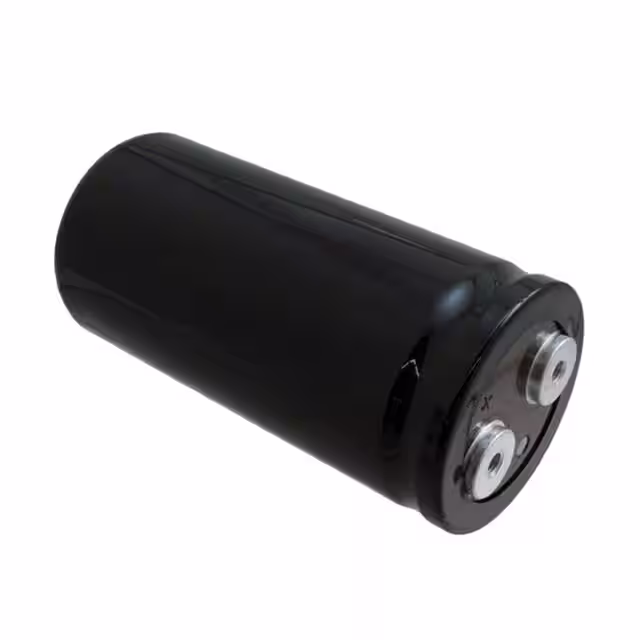

E37X451CPN332MDD0MCAP ALUM 3300UF 20% 450V SCREW |
2,909 | - |
|
Техническая |
Bulk | U37X | Obsolete | 3300 µF | ±20% | 450 V | 33mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.5 A @ 120 Hz | 16.215 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 5.157 (131.00mm) | - | Chassis Mount |
|

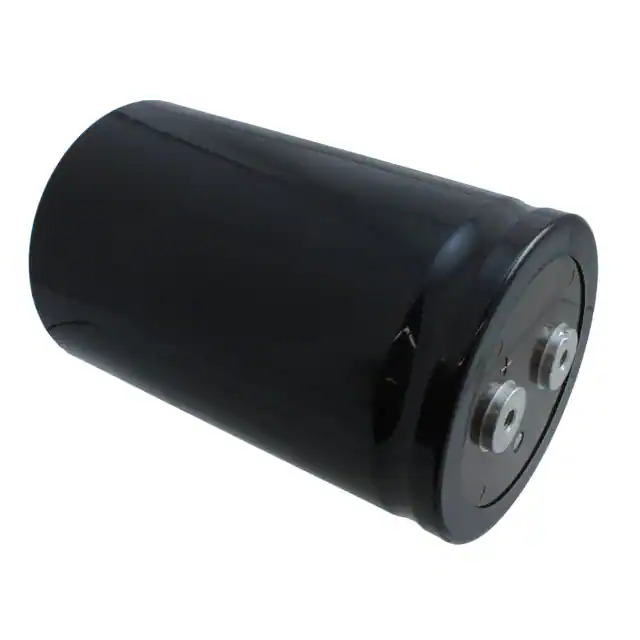

E37X451CPN822MFE3MCAP ALUM 8200UF 20% 450V SCREW |
2,881 | - |
|
Техническая |
Bulk | U37X | Obsolete | 8200 µF | ±20% | 450 V | 16mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 A @ 120 Hz | 29.61 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 5.669 (144.00mm) | - | Chassis Mount |
|
E37X501CPN103MFM9MCAP ALUM 10000UF 20% 500V SCREW |
3,679 | - |
|
Техническая |
Bulk | U37X | Obsolete | 10000 µF | ±20% | 500 V | 12mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.5 A @ 120 Hz | 40.185 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
EGPD101ELL201MU20HCAP ALUM 200UF 20% 100V RADIAL |
3,660 | - |
|
Техническая |
Bulk | GPD | Obsolete | 200 µF | ±20% | 100 V | 83mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 664 mA @ 120 Hz | 1.66 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
EGPD101ELL301MU25HCAP ALUM 300UF 20% 100V RADIAL |
3,233 | - |
|
Техническая |
Bulk | GPD | Obsolete | 300 µF | ±20% | 100 V | 58mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.15 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
EGPD101ELL391MU30HCAP ALUM 390UF 20% 100V RADIAL |
3,184 | - |
|
Техническая |
Bulk | GPD | Obsolete | 390 µF | ±20% | 100 V | 47mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.56 A @ 120 Hz | 3.12 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
EGPD101ELL431MU35HCAP ALUM 430UF 20% 100V RADIAL |
2,223 | - |
|
Техническая |
Bulk | GPD | Obsolete | 430 µF | ±20% | 100 V | 43mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.755 A @ 120 Hz | 3.51 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
EGPD101ELL561MU40HCAP ALUM 560UF 20% 100V RADIAL |
3,561 | - |
|
Техническая |
Bulk | GPD | Obsolete | 560 µF | ±20% | 100 V | 34mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.165 A @ 120 Hz | 4.33 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
|
EGPD250ELL272MU20HCAP ALUM 2700UF 20% 25V RADIAL |
3,137 | - |
|
Техническая |
Bulk | GPD | Obsolete | 2700 µF | ±20% | 25 V | 38mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.2425 A @ 120 Hz | 2.99 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
EGPD250ELL392MU25HCAP ALUM 3900UF 20% 25V RADIAL |
3,002 | - |
|
Техническая |
Bulk | GPD | Obsolete | 3900 µF | ±20% | 25 V | 30mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.09 A @ 120 Hz | 4.12 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
EGPD250ELL512MU30HCAP ALUM 5100UF 20% 25V RADIAL |
3,597 | - |
|
Техническая |
Bulk | GPD | Obsolete | 5100 µF | ±20% | 25 V | 25mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 4.148 A @ 120 Hz | 4.88 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.240 (31.50mm) | - | Through Hole |
