+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMZJ6R3ADA102MHA0GCAP ALUM 1000UF 20% 6.3V SMD |
3,146 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZJ | Active | 1000 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.406 (10.30mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EMZA630ADA101MJA0GCAP ALUM 100UF 20% 63V SMD |
3,106 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 400 mA @ 100 kHz | 450 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EMZA160ADA681MJA0GCAP ALUM 680UF 20% 16V SMD |
500 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EMKB401ADA4R7MJA0GCAP ALUM 4.7UF 20% 400V SMD |
2,734 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MKB | Active | 4.7 µF | ±20% | 400 V | 10Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 58.5 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EMVA6R3ADA152MJA0GCAP ALUM 1500UF 20% 6.3V SMD |
3,837 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVA | Active | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 518.4 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EMVA100ADA102MJA0GCAP ALUM 1000UF 20% 10V SMD |
3,855 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVA | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 464.4 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EMVA160ADA681MJA0GCAP ALUM 680UF 20% 16V SMD |
3,763 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVA | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 410.4 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EMHL100ARA471MHA0GCAP ALUM 470UF 20% 10V SMD |
2,302 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AIchip™- MHL | Active | 470 µF | ±20% | 10 V | 300mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 275.28 mA @ 120 Hz | 296 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EMZA800ADA470MJA0GCAP ALUM 47UF 20% 80V SMD |
500 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 47 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 200 mA @ 100 kHz | 700 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EMHL160ARA471MJA0GCAP ALUM 470UF 20% 16V SMD |
3,140 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AIchip™- MHL | Active | 470 µF | ±20% | 16 V | 200mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 409.2 mA @ 120 Hz | 440 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EMHK350ADA470MF80GCAP ALUM 47UF 20% 35V SMD |
3,246 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MHK | Active | 47 µF | ±20% | 35 V | 300mOhm @ 400kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 400 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EMZR250ARA680ME61GCAP ALUM 68UF 20% 25V SMD |
3,050 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 68 µF | ±20% | 25 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

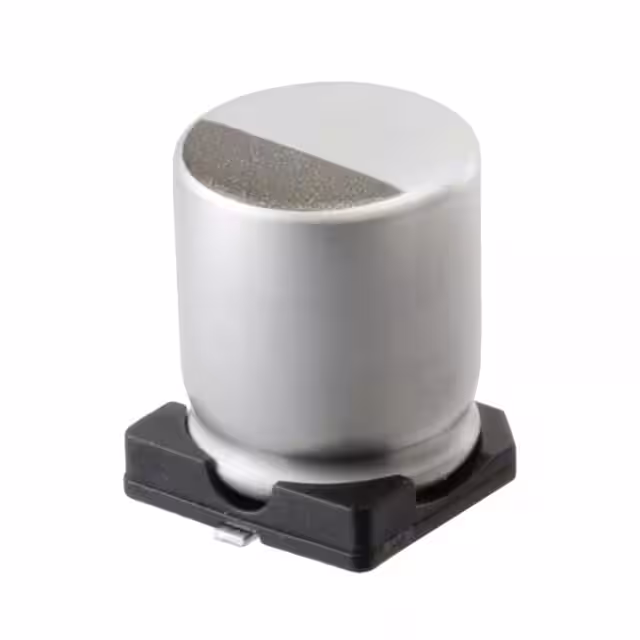

EMHB250ADA221MHA0GCAP ALUM 220UF 20% 25V SMD |
972 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MHB | Active | 220 µF | ±20% | 25 V | 300mOhm @ 400kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 223.2 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EMHJ160ADA221MHA0GCAP ALUM 220UF 20% 16V SMD |
2,314 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MHJ | Active | 220 µF | ±20% | 16 V | 150mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.406 (10.30mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EMXB250ARA561MKE0SCAP ALUM 560UF 20% 25V SMD |
2,037 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AIchip™- MXB | Active | 560 µF | ±20% | 25 V | 140mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 430 mA @ 120 Hz | 860 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
EKMG250ELL221MHB5DCAP ALUM 220UF 20% 25V RADIAL |
3,361 | - |
|
Техническая |
Bulk | KMG | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ELXZ630ELL680MH12DCAP ALUM 68UF 20% 63V RADIAL |
3,026 | - |
|
Техническая |
Bulk | LXZ | Active | 68 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 162 mA @ 120 Hz | 405 mA @ 100 kHz | 340 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ELXY100ELL331MH12DCAP ALUM 330UF 20% 10V RADIAL |
1,883 | - |
|
Техническая |
Bulk | LXY | Active | 330 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 222.5 mA @ 120 Hz | 445 mA @ 100 kHz | 170 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ELXY250ELL221MH15DCAP ALUM 220UF 20% 25V RADIAL |
2,283 | - |
|
Техническая |
Bulk | LXY | Active | 220 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 277.5 mA @ 120 Hz | 555 mA @ 100 kHz | 130 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
EMZR6R3ARA331MF61GCAP ALUM 330UF 20% 6.3V SMD |
2,548 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 330 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
