| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

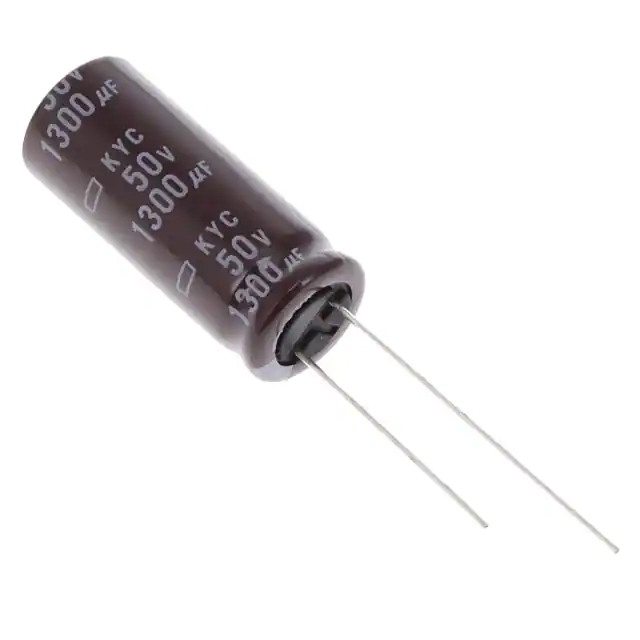

EKYC500ELL132MK30SCAP ALUM 1300UF 20% 50V RADIAL |
2,256 | - |
|
Техническая |
Bulk | KYC | Active | 1300 µF | ±20% | 50 V | 29mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.872 A @ 120 Hz | 3.12 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
ELXZ160ELL332MK35SCAP ALUM 3300UF 20% 16V RADIAL |
2,349 | - |
|
Техническая |
Bulk | LXZ | Active | 3300 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.8825 A @ 120 Hz | 2.51 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.437 (36.50mm) | - | Through Hole |
|
EMHS101ARA111MKE0SCAP ALUM 110UF 20% 100V SMD |
2,247 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MHS | Active | 110 µF | ±20% | 100 V | 170mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 368 mA @ 120 Hz | 920 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.539 L x 0.512 W (13.70mm x 13.00mm) | Surface Mount |
|
EKZN101ELL560MJC5SCAP ALUM 56UF 20% 100V RADIAL |
2,834 | - |
|
Техническая |
Bulk | KZN | Active | 56 µF | ±20% | 100 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 312 mA @ 120 Hz | 780 mA @ 100 kHz | 140 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

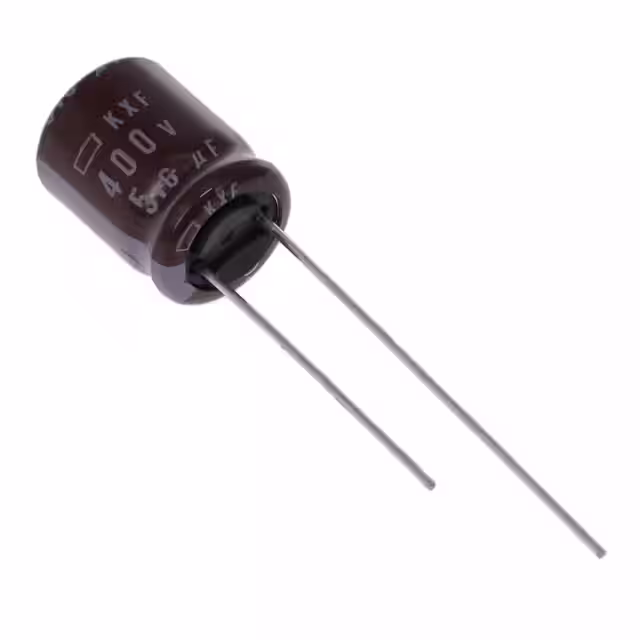

EKXF401ELL5R6MJC5SCAP ALUM 5.6UF 20% 400V RAD TH |
3,295 | - |
|
Техническая |
Bulk | KXF | Active | 5.6 µF | ±20% | 400 V | - | 15000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 64 mA @ 120 Hz | 160 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ESMG250ELL222MK25SCAP ALUM 2200UF 20% 25V RADIAL |
3,108 | - |
|
Техническая |
Bulk | SMG | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 1.6632 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELXZ350ELL122MK30SCAP ALUM 1200UF 20% 35V RADIAL |
2,832 | - |
|
Техническая |
Bulk | LXZ | Active | 1200 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.386 A @ 120 Hz | 2.31 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
EKXJ451ELL330ML20SCAP ALUM 33UF 20% 450V RADIAL |
2,835 | - |
|
Техническая |
Bulk | KXJ | Active | 33 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 385 mA @ 120 Hz | 962.5 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXZ630ELL821MK40SCAP ALUM 820UF 20% 63V RADIAL |
2,289 | - |
|
Техническая |
Bulk | LXZ | Active | 820 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.536 A @ 120 Hz | 2.56 A @ 100 kHz | 42 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
EPAG201ELL151MK30SCAP ALUM 150UF 20% 200V RADIAL |
2,539 | - |
|
Техническая |
Bulk | PAG | Active | 150 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.260 (32.00mm) | - | Through Hole |
|
EKYC500ELL122ML20SCAP ALUM 1200UF 20% 50V RADIAL |
3,393 | - |
|
Техническая |
Bulk | KYC | Active | 1200 µF | ±20% | 50 V | 38mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.518 A @ 120 Hz | 2.53 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXY250ELL152ML20SCAP ALUM 1500UF 20% 25V RADIAL |
3,073 | - |
|
Техническая |
Bulk | LXY | Active | 1500 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 978 mA @ 120 Hz | 1.63 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EGPA500ELL821MK30SCAP ALUM 820UF 20% 50V RADIAL |
2,297 | - |
|
Техническая |
Bulk | GPA | Active | 820 µF | ±20% | 50 V | 41mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
EKZE160ELL272ML20SCAP ALUM 2700UF 20% 16V RADIAL |
2,943 | - |
|
Техническая |
Bulk | KZE | Active | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.355 A @ 120 Hz | 3.14 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|

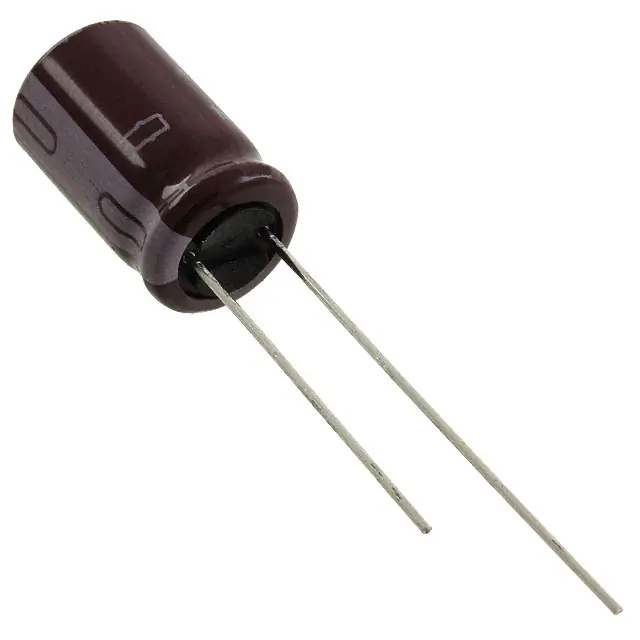

EKZN800ELL121MJ16SCAP ALUM 120UF 20% 80V RADIAL |
2,194 | - |
|
Техническая |
Bulk | KZN | Active | 120 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 416 mA @ 120 Hz | 1.04 A @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
ELXZ250ELL222MK35SCAP ALUM 2200UF 20% 25V RADIAL |
3,323 | - |
|
Техническая |
Bulk | LXZ | Active | 2200 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.8825 A @ 120 Hz | 2.51 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
EKXJ451ELL330MK30SCAP ALUM 33UF 20% 450V RADIAL |
2,035 | - |
|
Техническая |
Bulk | KXJ | Active | 33 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 400 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
ELXY160ELL222ML20SCAP ALUM 2200UF 20% 16V RADIAL |
2,908 | - |
|
Техническая |
Bulk | LXY | Active | 2200 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.2225 A @ 120 Hz | 1.63 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EKXJ501ELL150MJ35SCAP ALUM 15UF 20% 500V RADIAL TH |
2,934 | - |
|
Техническая |
Bulk | KXJ | Active | 15 µF | ±20% | 500 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 170 mA @ 120 Hz | 440.3 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
EGPA350ELL681MK20SCAP ALUM 680UF 20% 35V RADIAL |
905 | - |
|
Техническая |
Bulk | GPA | Active | 680 µF | ±20% | 35 V | 44mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.092 A @ 120 Hz | 1.82 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
