+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL212016222E3CAP ALUM 2200UF 20% 25V AXIAL |
111 | - |
|
Техническая |
Bulk | 120 ATC | Active | 2200 µF | ±20% | 25 V | 43mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 3.31 A @ 10 kHz | 44 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212019221E3CAP ALUM 220UF 20% 100V AXIAL |
624 | - |
|
Техническая |
Bulk | 120 ATC | Active | 220 µF | ±20% | 100 V | 181mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.96 A @ 10 kHz | 179 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|

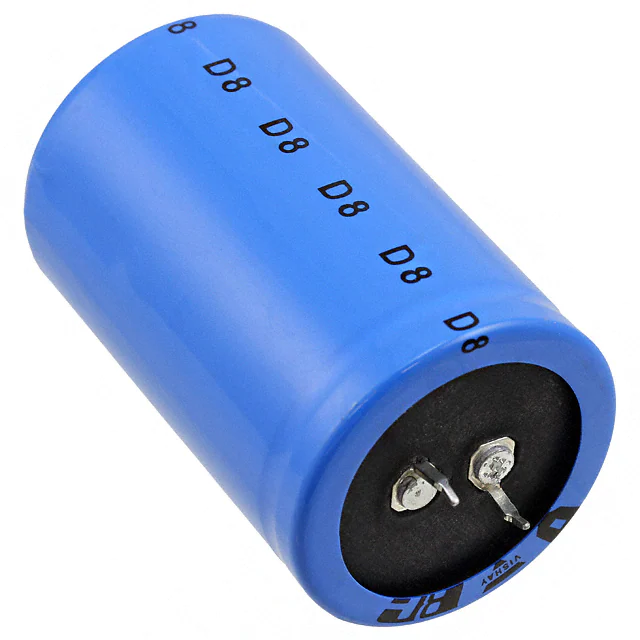

MAL215919101E3CAP ALUM 100UF 20% 500V SNAP |
174 | - |
|
Техническая |
Bulk | 159 PUL-SI | Active | 100 µF | ±20% | 500 V | 1.3Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | 960 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

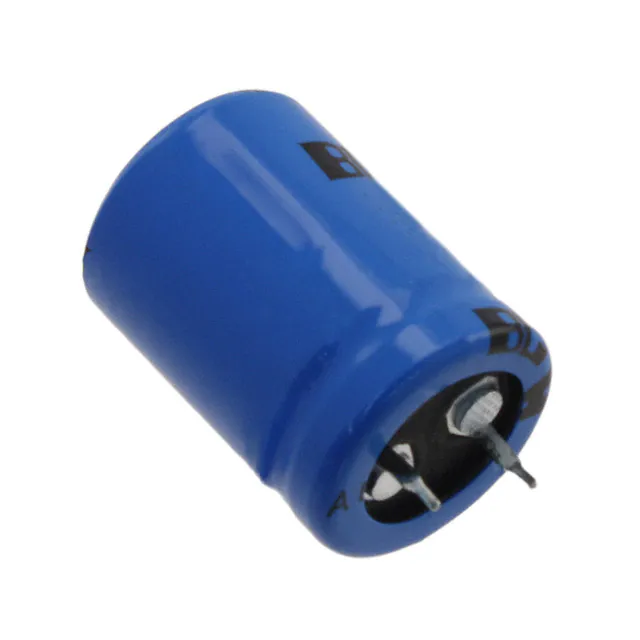

MAL215943221E3CAP ALUM 220UF 20% 250V SNAP |
481 | - |
|
Техническая |
Bulk | 159 PUL-SI | Active | 220 µF | ±20% | 250 V | 540mOhm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 1.4 A @ 10 kHz | 700 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL212617272E3CAP ALUM 2700UF 20% 40V AXIAL |
212 | - |
|
Техническая |
Bulk | 126 ALX | Active | 2700 µF | ±20% | 40 V | 58mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.6 A @ 100 Hz | 2.08 A @ 10 kHz | 31 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|

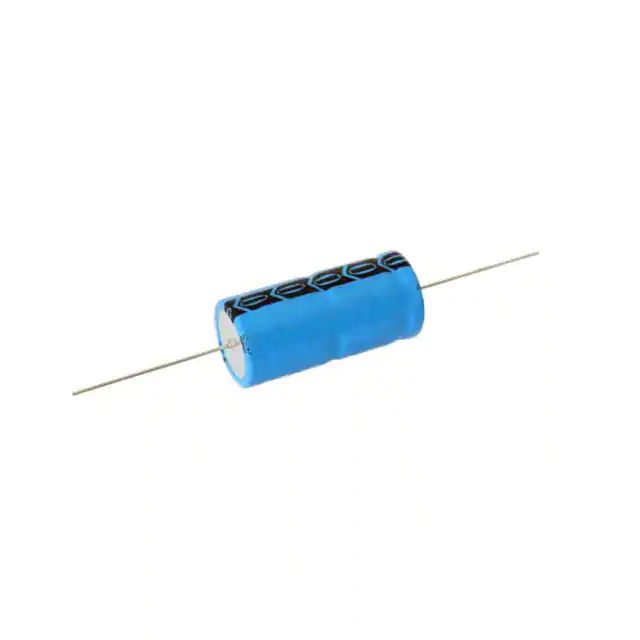

MAL212518222E3CAP ALUM 2200UF 20% 63V AXIAL |
287 | - |
|
Box | 125 ALS | Active | 2200 µF | ±20% | 63 V | 72mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 2.1 A @ 10 kHz | 72 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212017152E3CAP ALUM 1500UF 20% 40V AXIAL |
442 | - |
|
Техническая |
Bulk | 120 ATC | Active | 1500 µF | ±20% | 40 V | 39mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 4.13 A @ 10 kHz | 32 mOhms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|

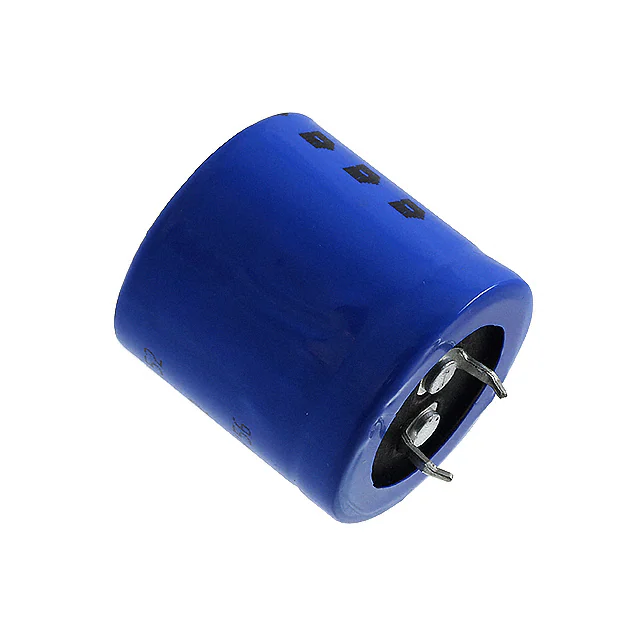

MAL205657472E3CAP ALUM 4700UF 20% 40V SNAP |
119 | - |
|
Техническая |
Bulk | 056 PSM-SI | Active | 4700 µF | ±20% | 40 V | 82mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.28 A @ 100 Hz | - | 70 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

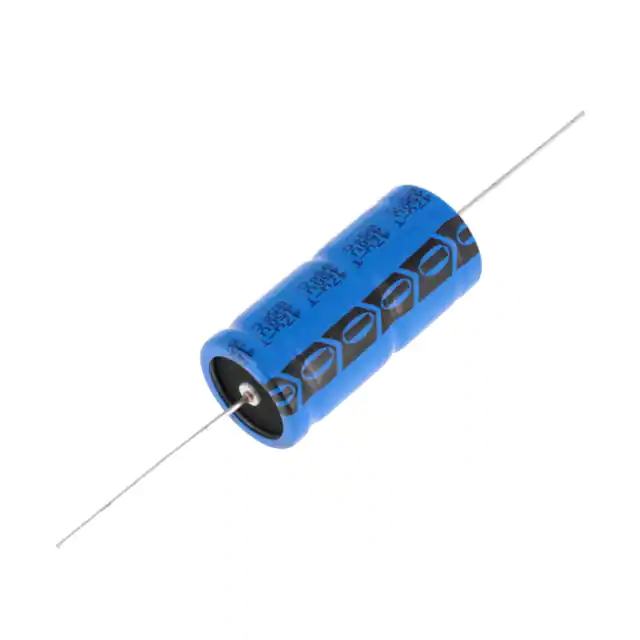

MAL204317479E3CAP ALUM 47UF 450V AXIAL |
698 | - |
|
Техническая |
Bulk | 043 ASH | Active | 47 µF | -10%, +50% | 450 V | 3.2Ohm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 440 mA @ 100 Hz | - | 2.1 Ohms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|
|
MAL205648332E3CAP ALUM 3300UF 20% 63V SNAP |
205 | - |
|
Техническая |
Bulk | 056 PSM-SI | Active | 3300 µF | ±20% | 63 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.14 A @ 100 Hz | - | 44 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

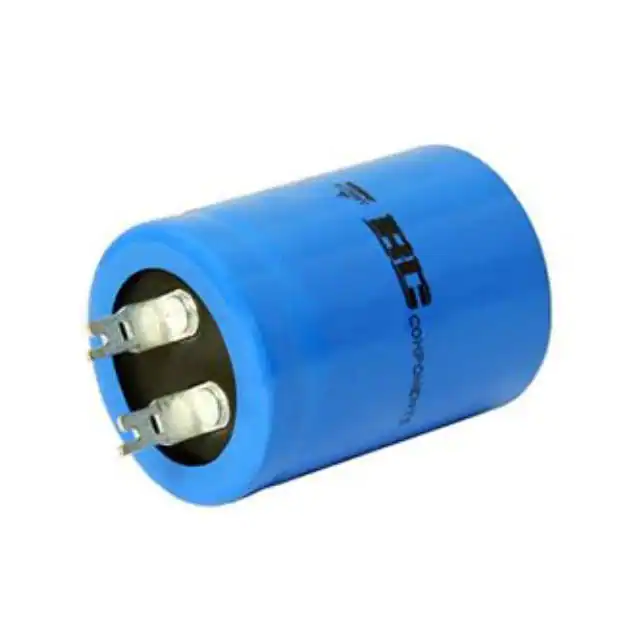

MAL205018102E3CAP ALUM 1000UF 63V SOLDER LUG |
1,465 | - |
|
Техническая |
Bulk | 050 PED-PW | Active | 1000 µF | -10%, +30% | 63 V | 122mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | 74 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Chassis Mount |
|
MAL215836103E3CAP ALUM 10000UF 20% 25V SNAP |
475 | - |
|
Техническая |
Bulk | 158 PUL-SI | Active | 10000 µF | ±20% | 25 V | 64mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.65 A @ 100 Hz | - | 55 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL205736221E3CAP ALUM 220UF 20% 400V SNAP |
300 | - |
|
Техническая |
Bulk | 057 PSM-SI | Active | 220 µF | ±20% | 400 V | 650mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.5 A @ 100 Hz | - | 400 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

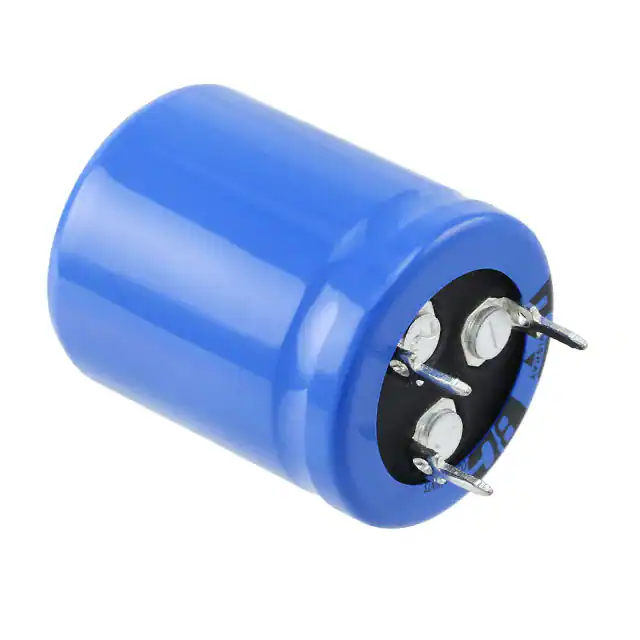

MAL205157472E3CAP ALUM 4700UF 20% 40V RADIAL |
2,247 | - |
|
Техническая |
Bulk | 051 PEC-PW | Active | 4700 µF | ±20% | 40 V | 62mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 100 Hz | - | 47 mOhms | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
MAL205158222E3CAP ALUM 2200UF 20% 63V RADIAL |
2,079 | - |
|
Техническая |
Bulk | 051 PEC-PW | Active | 2200 µF | ±20% | 63 V | 83mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | - | 62 mOhms | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

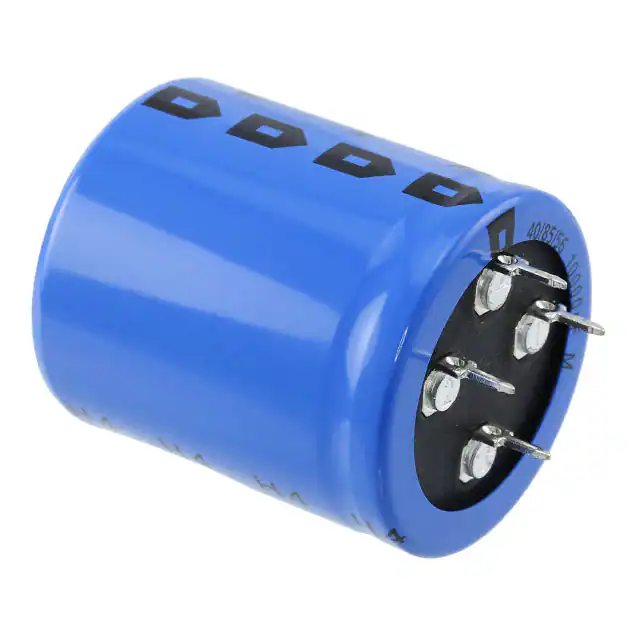

MAL205158472E3CAP ALUM 4700UF 20% 63V RADIAL |
2,452 | - |
|
Техническая |
Bulk | 051 PEC-PW | Active | 4700 µF | ±20% | 63 V | 49mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 100 Hz | - | 38 mOhms | - | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|

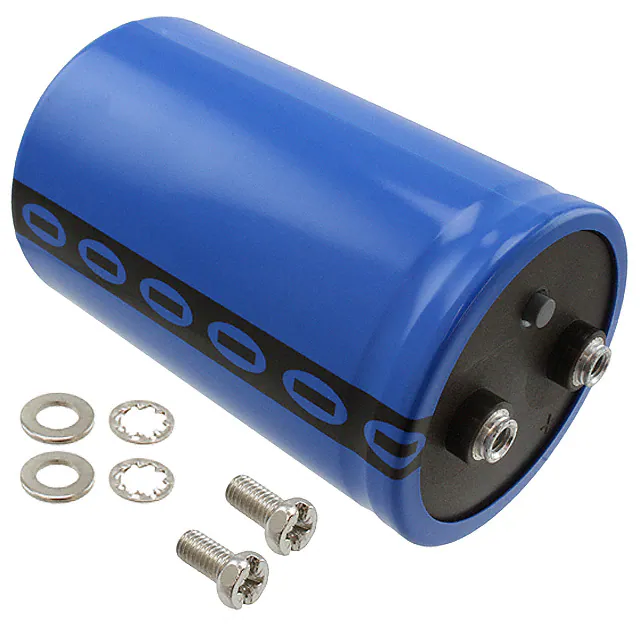

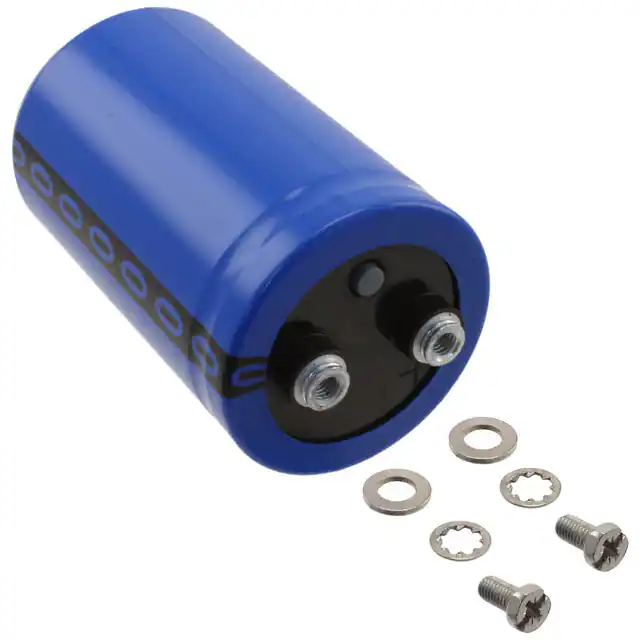

MAL210119223E3CAP ALUM 22000UF 20% 100V SCREW |
105 | - |
|
Техническая |
Bulk | 101 PHR-ST | Active | 22000 µF | ±20% | 100 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 19.24 A @ 10 kHz | 8 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.165 (105.80mm) | - | Chassis Mount |
|
MAL210253682E3CAP ALUM 6800UF 20% 250V SCREW |
114 | - |
|
Техническая |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 250 V | 21mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.1 A @ 100 Hz | - | 14 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL205019222E3CAP ALUM 2200UF 100V SOLDER LUG |
1,141 | - |
|
Техническая |
Bulk | 050 PED-PW | Active | 2200 µF | -10%, +30% | 100 V | 69mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | - | 55 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
|
MAL205158103E3CAP ALUM 10000UF 20% 63V RADIAL |
440 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | 051 PEC-PW | Active | 10000 µF | ±20% | 63 V | 37mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.4 A @ 100 Hz | - | 28 mOhms | 0.689 (17.50mm) | 1.378 Dia (35.00mm) | 2.165 (55.00mm) | - | Through Hole |
