| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS40A473DF025CAP ALUM 47000UF 20% 25V SCREW |
185 | - |
|
Техническая |
Box | ALS40 | Active | 47000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 A @ 100 Hz | 14.7 A @ 10 kHz | 8 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS30A471KE500CAP ALUM 470UF 20% 500V SCREW |
383 | - |
|
Техническая |
Box | ALS30 | Active | 470 µF | ±20% | 500 V | 365mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 100 Hz | 7.5 A @ 10 kHz | 194 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
ALC70C332FP350CAP ALUM 3300UF 20% 350V SNAP |
452 | - |
|
Техническая |
Bulk | ALC70 | Active | 3300 µF | ±20% | 350 V | 47mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.14 A @ 100 Hz | 15.8 A @ 10 kHz | 26 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
ALC10A471DL550CAP ALUM 470UF 20% 550V SNAP |
194 | - |
|
Техническая |
Bulk | ALC10 | Active | 470 µF | ±20% | 550 V | 746mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.87 A @ 100 Hz | 4.43 A @ 10 kHz | 650 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
ALF70G303KP100CAP ALUM 30000UF 20% 100V SNAP |
964 | - |
|
Техническая |
Bulk | ALF70 | Active | 30000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.07 A @ 100 Hz | 18.16 A @ 10 kHz | 12 mOhms | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
PEH200PD4470MU2CAP ALUM 4700UF 20% 100V SCREW |
161 | - |
|
Техническая |
Box | PEH200 | Active | 4700 µF | ±20% | 100 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 100 Hz | 21.1 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 3.720 (94.50mm) | - | Chassis Mount |
|
|
ALC70C132FP550CAP ALUM 1300UF 20% 550V SNAP |
677 | - |
|
Техническая |
Bulk | ALC70 | Active | 1300 µF | ±20% | 550 V | 316mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.12 A @ 100 Hz | 7.94 A @ 10 kHz | 273 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
PEH200ZO418HMB2CAP ALUM 1800UF 20% 500V SCREW |
204 | - |
|
Техническая |
Bulk | PEH200 | Active | 1800 µF | ±20% | 500 V | 71mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 100 Hz | 40.1 A @ 10 kHz | - | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ESK225M100AC3FACAP ALUM 2.2UF 20% 100V RADIAL |
14,860 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 2.2 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESH226M016AC3DACAP ALUM 22UF 20% 16V RADIAL |
7,321 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | ESH | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESW106M016AC3FACAP ALUM 10UF 20% 16V RADIAL |
5,491 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | ESW | Active | 10 µF | ±20% | 16 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
PEH534VDC3220M2CAP ALUM 220UF 20% 400V SNAP |
113 | - |
|
Техническая |
Bulk | PEH534 | Active | 220 µF | ±20% | 400 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

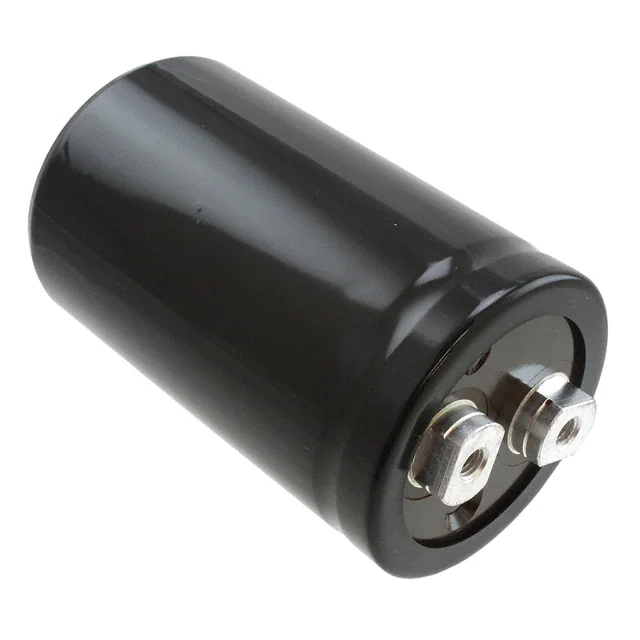

ALS30A102KE415CAP ALUM 1000UF 20% 415V SCREW |
139 | - |
|
Техническая |
Bulk | ALS30 | Active | 1000 µF | ±20% | 415 V | 136mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 10.4 A @ 10 kHz | 94 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|

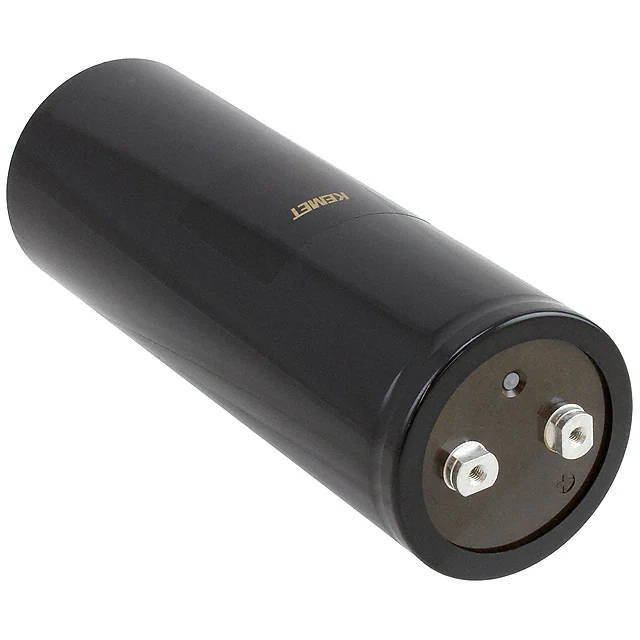

ALS30A103NT400CAP ALUM 10000UF 20% 400V SCREW |
2,462 | - |
|
Техническая |
Bulk | ALS30 | Active | 10000 µF | ±20% | 400 V | 19mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 100 Hz | 42 A @ 10 kHz | 14 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
ESX475M400AH2EACAP ALUM 4.7UF 20% 400V RADIAL |
1,959 | - |
|
Cut Tape (CT),Tape & Box (TB) | ESX | Active | 4.7 µF | ±20% | 400 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole | |
|
ESE226M016AC3FACAP ALUM 22UF 20% 16V RADIAL |
7,881 | - |
|
Техническая |
Box | ESE | Active | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 79.75 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
ESW226M010AC3AACAP ALUM 22UF 20% 10V RADIAL |
9,956 | - |
|
Техническая |
Box | ESW | Active | 22 µF | ±20% | 10 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EDH158M6R3A9PAACAP ALUM 1500UF 20% 6.3V SMD |
6,790 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | EDH | Active | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 575 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEV687M016A9PAACAP ALUM 680UF 20% 16V SMD |
3,500 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 680 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
ESH475M350AH2AACAP ALUM 4.7UF 20% 350V RADIAL |
2,766 | - |
|
Техническая |
Box | ESH | Active | 4.7 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 104 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
