+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS81C303MF100CAP ALUM 30000UF 20% 100V SCREW |
3,698 | - |
|
Техническая |
Bulk | ALS81 | Active | 30000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21 A @ 100 Hz | 24.3 A @ 10 kHz | 12 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS81H303MF100CAP ALUM 30000UF 20% 100V SCREW |
3,733 | - |
|
Техническая |
Bulk | ALS81 | Active | 30000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21 A @ 100 Hz | 24.3 A @ 10 kHz | 12 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A304LM025CAP ALUM 300000UF 20% 25V SCREW |
2,803 | - |
|
Техническая |
Bulk | ALS80 | Active | 300000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | 26.3 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS80C304LM025CAP ALUM 300000UF 20% 25V SCREW |
2,359 | - |
|
Техническая |
Bulk | ALS80 | Active | 300000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | 26.3 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS80H304LM025CAP ALUM 300000UF 20% 25V SCREW |
3,385 | - |
|
Техническая |
Bulk | ALS80 | Active | 300000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | 26.3 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS81A304LM025CAP ALUM 300000UF 20% 25V SCREW |
3,847 | - |
|
Техническая |
Bulk | ALS81 | Active | 300000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | 26.3 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS81C304LM025CAP ALUM 300000UF 20% 25V SCREW |
3,083 | - |
|
Техническая |
Bulk | ALS81 | Active | 300000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | 26.3 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS81H304LM025CAP ALUM 300000UF 20% 25V SCREW |
3,872 | - |
|
Техническая |
Bulk | ALS81 | Active | 300000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | 26.3 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
ALS70A274QC025CAP ALUM 270000UF 20% 25V SCREW |
2,871 | - |
|
Техническая |
Bulk | ALS70 | Active | 270000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 23.7 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS70C274QC025CAP ALUM 270000UF 20% 25V SCREW |
3,354 | - |
|
Техническая |
Bulk | ALS70 | Active | 270000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 23.7 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS70H274QC025CAP ALUM 270000UF 20% 25V SCREW |
2,158 | - |
|
Техническая |
Bulk | ALS70 | Active | 270000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 23.7 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS71A274QC025CAP ALUM 270000UF 20% 25V SCREW |
2,729 | - |
|
Техническая |
Bulk | ALS71 | Active | 270000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 23.7 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS71C274QC025CAP ALUM 270000UF 20% 25V SCREW |
3,082 | - |
|
Техническая |
Bulk | ALS71 | Active | 270000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 23.7 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS71H274QC025CAP ALUM 270000UF 20% 25V SCREW |
2,080 | - |
|
Техническая |
Bulk | ALS71 | Active | 270000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 23.7 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|

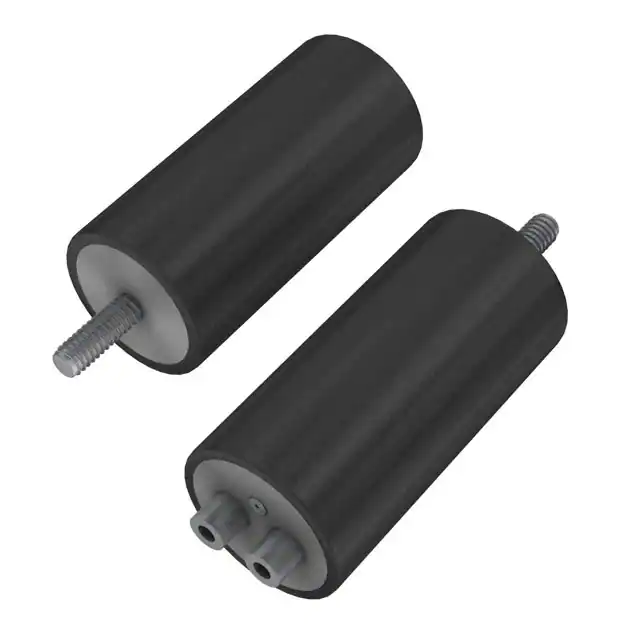

PEH200KC5150MB2CAP ALUM 15000UF 20% 40V SCREW |
2,201 | - |
|
Техническая |
Bulk | PEH200 | Active | 15000 µF | ±20% | 40 V | 16mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | - | 12 mOhms | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.933 (74.50mm) | - | Chassis Mount |
|
|
ALS80C243QC100CAP ALUM 24000UF 20% 100V SCREW |
2,407 | - |
|
Техническая |
Bulk | ALS80 | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS80H243QC100CAP ALUM 24000UF 20% 100V SCREW |
3,432 | - |
|
Техническая |
Bulk | ALS80 | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS81A243QC100CAP ALUM 24000UF 20% 100V SCREW |
3,940 | - |
|
Техническая |
Bulk | ALS81 | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS81C243QC100CAP ALUM 24000UF 20% 100V SCREW |
3,405 | - |
|
Техническая |
Bulk | ALS81 | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS81H243QC100CAP ALUM 24000UF 20% 100V SCREW |
3,204 | - |
|
Техническая |
Bulk | ALS81 | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
