| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS31A473MF063CAP ALUM 47000UF 20% 63V SCREW |
2,861 | - |
|
Техническая |
Box | ALS31 | Active | 47000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.7 A @ 100 Hz | 26.5 A @ 10 kHz | 7 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS30A104MF040CAP ALUM 100000UF 20% 40V SCREW |
3,550 | - |
|
Техническая |
Box | ALS30 | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.3 A @ 100 Hz | 26.6 A @ 10 kHz | 6 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALS31A223MF100CAP ALUM 22000UF 20% 100V SCREW |
2,748 | - |
|
Техническая |
Box | ALS31 | Active | 22000 µF | ±20% | 100 V | 13mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 100 Hz | 19.1 A @ 10 kHz | 12 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS30A222NF450CAP ALUM 2200UF 20% 450V SCREW |
3,739 | - |
|
Техническая |
Bulk | ALS30 | Active | 2200 µF | ±20% | 450 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 100 Hz | 21.1 A @ 10 kHz | 41 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|

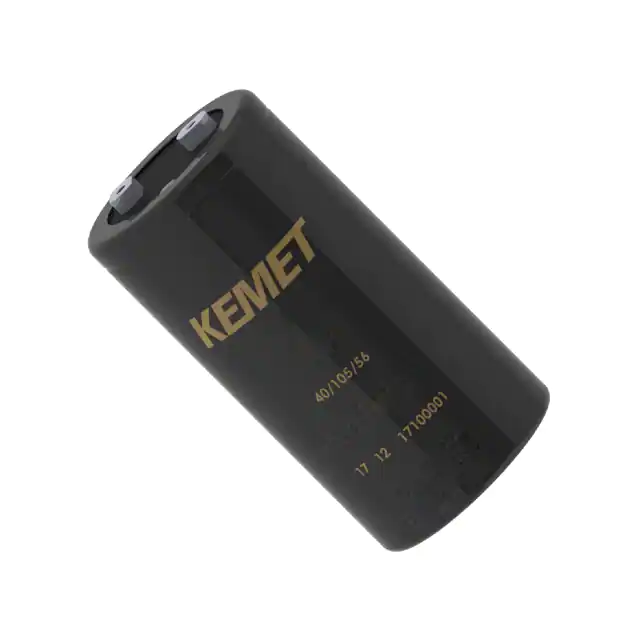

ALS70A182LM630CAP ALUM 1800UF 20% 630V SCREW |
2,646 | - |
|
Техническая |
Bulk | ALS70 | Active | 1800 µF | ±20% | 630 V | 84mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | 20.5 A @ 10 kHz | 57 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 5.157 (131.00mm) | - | Chassis Mount |
|
|
ALS30A472NJ400CAP ALUM 4700UF 20% 400V SCREW |
2,920 | - |
|
Техническая |
Bulk | ALS30 | Active | 4700 µF | ±20% | 400 V | 38mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.25 A @ 100 Hz | 23.2 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 4.606 (117.00mm) | - | Chassis Mount |
|
|
ALS30A472NP400CAP ALUM 4700UF 20% 400V SCREW |
3,692 | - |
|
Техническая |
Box | ALS30 | Active | 4700 µF | ±20% | 400 V | 33mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 A @ 100 Hz | 26 A @ 10 kHz | 24 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
|
ALS30A682NP400CAP ALUM 6800UF 20% 400V SCREW |
2,922 | - |
|
Техническая |
Bulk | ALS30 | Active | 6800 µF | ±20% | 400 V | 27mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.5 A @ 100 Hz | 26.9 A @ 10 kHz | 20 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
ALS71A332DA100CAP ALUM 3300UF 20% 100V SCREW |
3,978 | - |
|
Техническая |
Bulk | ALS71 | Active | 3300 µF | ±20% | 100 V | 99mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.6 A @ 100 Hz | 9.3 A @ 10 kHz | 81 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|

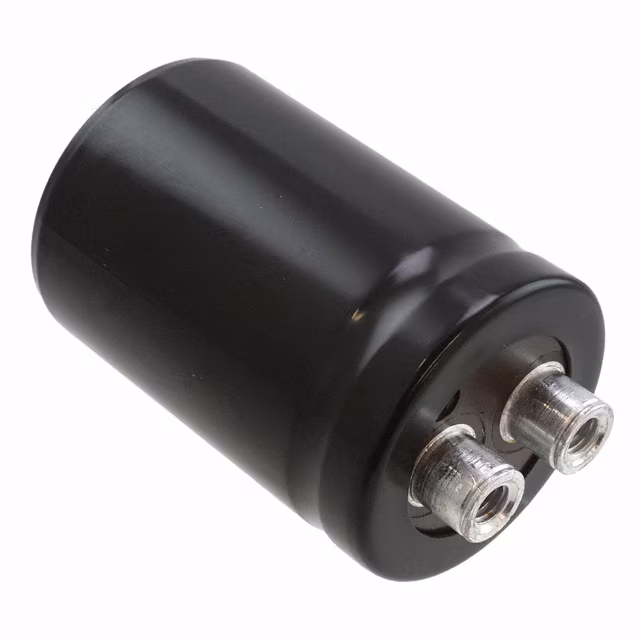

ALS30A471DA200CAP ALUM 470UF 20% 200V SCREW |
3,099 | - |
|
Техническая |
Bulk | ALS30 | Active | 470 µF | ±20% | 200 V | 286mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 4.3 A @ 10 kHz | 227 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
ALS80A133DA040CAP ALUM 13000UF 20% 40V SCREW |
3,276 | - |
|
Техническая |
Bulk | ALS80 | Active | 13000 µF | ±20% | 40 V | 49mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 A @ 100 Hz | 10.4 A @ 10 kHz | 41 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
|
ALS70A183DA040CAP ALUM 18000UF 20% 40V SCREW |
2,893 | - |
|
Техническая |
Bulk | ALS70 | Active | 18000 µF | ±20% | 40 V | 49mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | 11.2 A @ 10 kHz | 42 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
|
ALS70A113DB063CAP ALUM 11000UF 20% 63V SCREW |
2,521 | - |
|
Техническая |
Bulk | ALS70 | Active | 11000 µF | ±20% | 63 V | 43mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 100 Hz | 12.7 A @ 10 kHz | 34 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
|
ALS70A511DB450CAP ALUM 510UF 20% 450V SCREW |
3,660 | - |
|
Техническая |
Bulk | ALS70 | Active | 510 µF | ±20% | 450 V | 336mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 100 Hz | 6.9 A @ 10 kHz | 212 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
|
ALS70A243DB040CAP ALUM 24000UF 20% 40V SCREW |
2,377 | - |
|
Техническая |
Bulk | ALS70 | Active | 24000 µF | ±20% | 40 V | 38mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 12.8 A @ 10 kHz | 32 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
|
ALS70A623DE025CAP ALUM 62000UF 20% 25V SCREW |
3,344 | - |
|
Техническая |
Bulk | ALS70 | Active | 62000 µF | ±20% | 25 V | 25mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | 15.1 A @ 10 kHz | 23 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A471DB500CAP ALUM 470UF 20% 500V SCREW |
2,126 | - |
|
Техническая |
Bulk | ALS70 | Active | 470 µF | ±20% | 500 V | 531mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 6 A @ 10 kHz | 399 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
|
ALS70A102DE400CAP ALUM 1000UF 20% 400V SCREW |
3,449 | - |
|
Техническая |
Bulk | ALS70 | Active | 1000 µF | ±20% | 400 V | 157mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 100 Hz | 10 A @ 10 kHz | 89 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|

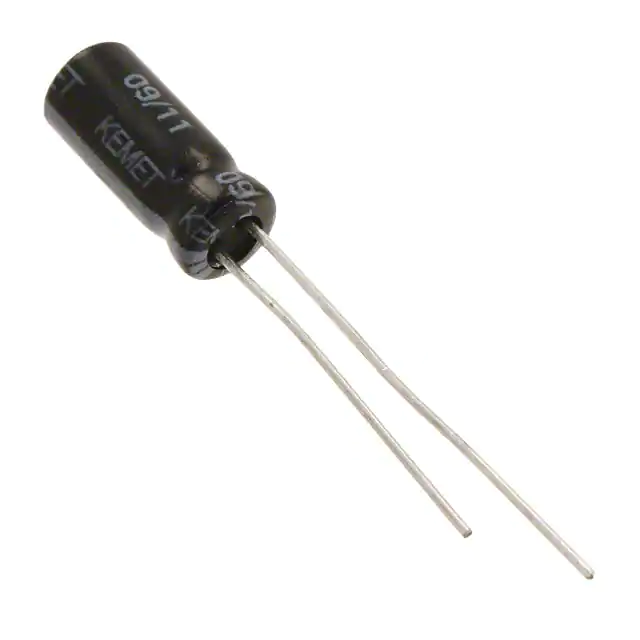

ESH226M016AC3AACAP ALUM 22UF 20% 16V RADIAL |
10,427 | - |
|
Bulk | ESH | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole | |
|
|
ALS70A681DE500CAP ALUM 680UF 20% 500V SCREW |
3,325 | - |
|
Техническая |
Bulk | ALS70 | Active | 680 µF | ±20% | 500 V | 368mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | 7.5 A @ 10 kHz | 277 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
