+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80P752NS500CAP ALUM 7500UF 20% 500V SCREW |
2,412 | - |
|
Техническая |
Bulk | ALS80 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80U752NS500CAP ALUM 7500UF 20% 500V SCREW |
2,551 | - |
|
Техническая |
Bulk | ALS80 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81A752NS500CAP ALUM 7500UF 20% 500V SCREW |
3,516 | - |
|
Техническая |
Bulk | ALS81 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81C752NS500CAP ALUM 7500UF 20% 500V SCREW |
3,926 | - |
|
Техническая |
Bulk | ALS81 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81G752NS500CAP ALUM 7500UF 20% 500V SCREW |
3,083 | - |
|
Техническая |
Bulk | ALS81 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81H752NS500CAP ALUM 7500UF 20% 500V SCREW |
3,638 | - |
|
Техническая |
Bulk | ALS81 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81P752NS500CAP ALUM 7500UF 20% 500V SCREW |
2,939 | - |
|
Техническая |
Bulk | ALS81 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81U752NS500CAP ALUM 7500UF 20% 500V SCREW |
3,781 | - |
|
Техническая |
Bulk | ALS81 | Active | 7500 µF | ±20% | 500 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 24.7 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|

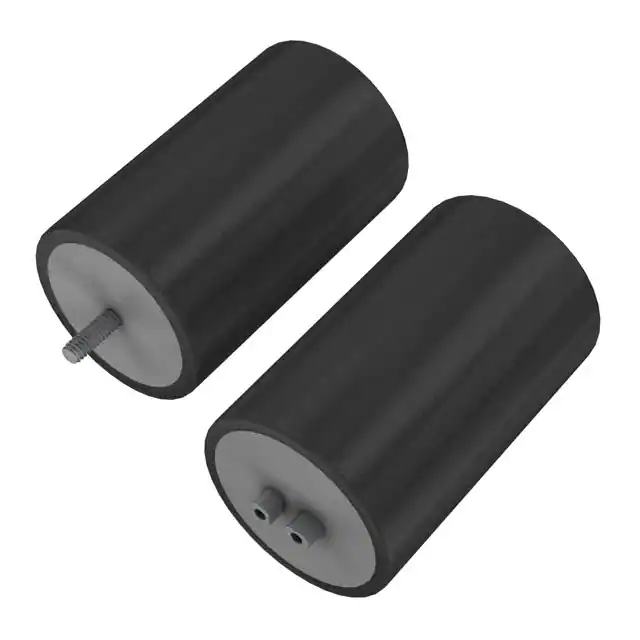

PEH200YO418AMB2CAP ALUM 1800UF 20% 450V SCREW |
2,676 | - |
|
Техническая |
Bulk | PEH200 | Active | 1800 µF | ±20% | 450 V | 43mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS70H123NS450CAP ALUM 12000UF 20% 450V SCREW |
3,558 | - |
|
Техническая |
Bulk | ALS70 | Active | 12000 µF | ±20% | 450 V | 21mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.9 A @ 100 Hz | 29.2 A @ 10 kHz | 15 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS70A223QS350CAP ALUM 22000UF 20% 350V SCREW |
3,976 | - |
|
Техническая |
Bulk | ALS70 | Active | 22000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 100 Hz | 37.1 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS70C223QS350CAP ALUM 22000UF 20% 350V SCREW |
2,689 | - |
|
Техническая |
Bulk | ALS70 | Active | 22000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 100 Hz | 37.1 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS71A223QS350CAP ALUM 22000UF 20% 350V SCREW |
3,518 | - |
|
Техническая |
Bulk | ALS71 | Active | 22000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 100 Hz | 37.1 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS71C223QS350CAP ALUM 22000UF 20% 350V SCREW |
3,524 | - |
|
Техническая |
Bulk | ALS71 | Active | 22000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 100 Hz | 37.1 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS71H223QS350CAP ALUM 22000UF 20% 350V SCREW |
3,064 | - |
|
Техническая |
Bulk | ALS71 | Active | 22000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 100 Hz | 37.1 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
PEH200PO5220MB2CAP ALUM 22000UF 20% 100V SCREW |
2,521 | - |
|
Техническая |
Bulk | PEH200 | Active | 22000 µF | ±20% | 100 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.3 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS70H564QW040CAP ALUM 560000UF 20% 40V SCREW |
2,337 | - |
|
Техническая |
Bulk | ALS70 | Active | 560000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.5 A @ 100 Hz | 41.6 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
|
|
ALS71G912NS500CAP ALUM 9100UF 20% 500V SCREW |
3,687 | - |
|
Техническая |
Bulk | ALS71 | Active | 9100 µF | ±20% | 500 V | 32mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.5 A @ 100 Hz | 27.9 A @ 10 kHz | 25 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS71A622NW550CAP ALUM 6200UF 20% 550V SCREW |
2,998 | - |
|
Техническая |
Bulk | ALS71 | Active | 6200 µF | ±20% | 550 V | 76mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | 24 A @ 10 kHz | 66 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
|
|
ALS70A622NW550CAP ALUM 6200UF 20% 550V SCREW |
2,589 | - |
|
Техническая |
Bulk | ALS70 | Active | 6200 µF | ±20% | 550 V | 76mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | 24 A @ 10 kHz | 66 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
