| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC10A102EL450CAP ALUM 1000UF 20% 450V SNAP |
3,845 | - |
|
Техническая |
Bulk | ALC10 | Active | 1000 µF | ±20% | 450 V | 114mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.95 A @ 100 Hz | 9.32 A @ 10 kHz | 75 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
ALS36H103K2C063CAP ALUM 10000UF 63V SCREW |
3,697 | - |
|
Техническая |
Box | ALS36 | Active | 10000 µF | -10%, +30% | 63 V | 32mOhm @ 120Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 120 Hz | 11.4 A @ 20 kHz | - | 0.875 (22.23mm) | 2.000 Dia (50.80mm) | 2.125 (53.98mm) | - | Chassis Mount |
|
ALS31A102KF450CAP ALUM 1000UF 20% 450V SCREW |
3,080 | - |
|
Техническая |
Box | ALS31 | Active | 1000 µF | ±20% | 450 V | 118mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 100 Hz | 12.6 A @ 10 kHz | 79 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS70A102KF630CAP ALUM 1000UF 20% 630V SCREW |
2,943 | - |
|
Техническая |
Bulk | ALS70 | Active | 1000 µF | ±20% | 630 V | 140mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | 13.8 A @ 10 kHz | 97 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|

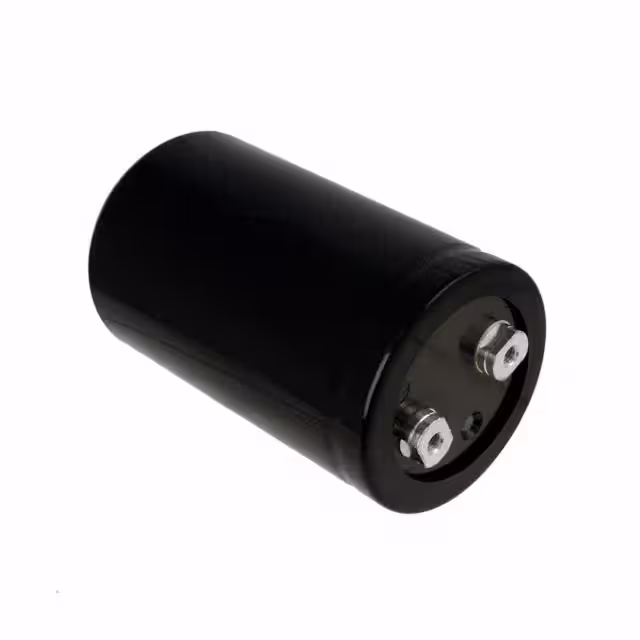

ALS30A222MF400CAP ALUM 2200UF 20% 400V SCREW |
3,010 | - |
|
Техническая |
Bulk | ALS30 | Active | 2200 µF | ±20% | 400 V | 62mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | 18.8 A @ 10 kHz | 44 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
PEH200MJ5220MU2CAP ALUM 22000UF 20% 63V SCREW |
3,112 | - |
|
Техническая |
Box | PEH200 | Active | 22000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | 30.9 A @ 10 kHz | - | 1.122 (28.50mm) | 2.031 Dia (51.60mm) | 3.760 (95.50mm) | - | Chassis Mount |
|
|
ALS31A222NF450CAP ALUM 2200UF 20% 450V SCREW |
2,996 | - |
|
Техническая |
Box | ALS31 | Active | 2200 µF | ±20% | 450 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 100 Hz | 21.1 A @ 10 kHz | 41 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALS31A332NF450CAP ALUM 3300UF 20% 450V SCREW |
3,977 | - |
|
Техническая |
Box | ALS31 | Active | 3300 µF | ±20% | 450 V | 40mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | 21.2 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS30A332NF400CAP ALUM 3300UF 20% 400V SCREW |
2,166 | - |
|
Техническая |
Box | ALS30 | Active | 3300 µF | ±20% | 400 V | 49mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 21.3 A @ 10 kHz | 36 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALS31A332NP450CAP ALUM 3300UF 20% 450V SCREW |
3,354 | - |
|
Техническая |
Box | ALS31 | Active | 3300 µF | ±20% | 450 V | 39mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 100 Hz | 25.1 A @ 10 kHz | 27 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
PEH169UV447BQB2CAP ALUM 4700UF 350V SCREW |
3,658 | - |
|
Техническая |
Bulk | PEH169 | Active | 4700 µF | -10%, +30% | 350 V | - | - | - | Polar | - | General Purpose | - | - | - | 1.260 (32.00mm) | 2.953 Dia (75.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
|
ALS70A272NJ630CAP ALUM 2700UF 20% 630V SCREW |
3,733 | - |
|
Техническая |
Bulk | ALS70 | Active | 2700 µF | ±20% | 630 V | 61mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | 22.2 A @ 10 kHz | 42 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.528 (115.00mm) | - | Chassis Mount |
|
|
ALS70A332NP630CAP ALUM 3300UF 20% 630V SCREW |
3,182 | - |
|
Техническая |
Bulk | ALS70 | Active | 3300 µF | ±20% | 630 V | 51mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | 24.7 A @ 10 kHz | 35 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
|
PEH200SV5100MU2CAP ALUM 10000UF 20% 250V SCREW |
2,821 | - |
|
Техническая |
Box | PEH200 | Active | 10000 µF | ±20% | 250 V | 14mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 A @ 100 Hz | 44 A @ 10 kHz | - | 1.260 (32.00mm) | 3.016 Dia (76.60mm) | 5.748 (146.00mm) | - | Chassis Mount |
|

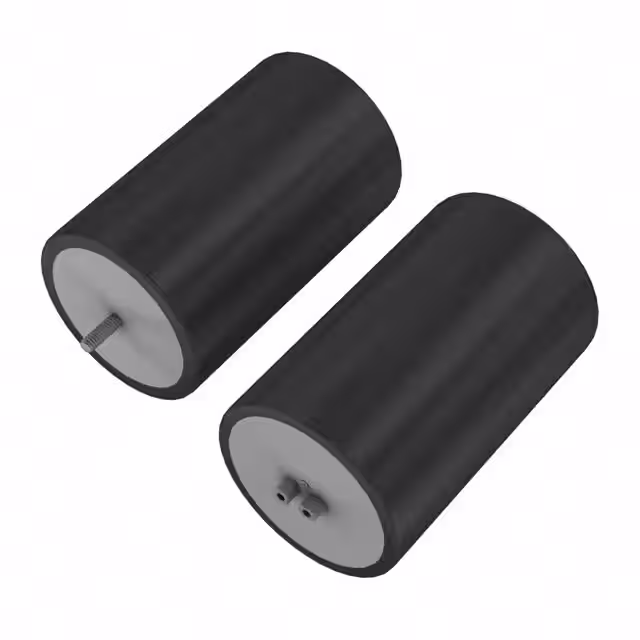

PEH200YY4470MB2CAP ALUM 4700UF 20% 450V SCREW |
3,936 | - |
|
Техническая |
Bulk | PEH200 | Active | 4700 µF | ±20% | 450 V | 16mOhm @ 100Hz | 29000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.9 A @ 100 Hz | - | 9 mOhms | 1.260 (32.00mm) | 3.606 Dia (91.60mm) | 5.768 (146.50mm) | - | Chassis Mount |
|
ESK476M035AC3EACAP ALUM 47UF 20% 35V RADIAL |
2,751 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESH475M050AC3KACAP ALUM 4.7UF 20% 50V RADIAL |
3,014 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | ESH | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 60 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EDK106M025A9DAACAP ALUM 10UF 20% 25V SMD |
1,000 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT),Bulk | EDK | Active | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 35 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.222 (5.64mm) | 0.209 L x 0.256 W (5.30mm x 6.50mm) | Surface Mount |
|
EEV336M035A9GAACAP ALUM 33UF 20% 35V SMD |
2,833 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 33 µF | ±20% | 35 V | 520mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 168 mA @ 120 Hz | 240 mA @ 100 kHz | 520 mOhms | - | 0.248 Dia (6.30mm) | 0.222 (5.65mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV226M050A9GAACAP ALUM 22UF 20% 50V SMD |
2,370 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 22 µF | ±20% | 50 V | 2Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 70 mA @ 100 kHz | 2 Ohms | - | 0.248 Dia (6.30mm) | 0.222 (5.65mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
