+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFK106M35B12T-FCAP ALUM 10UF 20% 35V SMD |
1,986 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 10 µF | ±20% | 35 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 67.5 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.217 W (4.30mm x 5.50mm) | Surface Mount |
|
|
AFK107M35X16T-FCAP ALUM 100UF 20% 35V SMD |
1,167 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 100 µF | ±20% | 35 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
SEK100M200STCAP ALUM 10UF 20% 200V RADIAL |
1,048 | - |
|
Техническая |
Bulk | SEK | Active | 10 µF | ±20% | 200 V | 19.9Ohm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
SLP392M050C3P3CAP ALUM 3900UF 20% 50V SNAP |
2,688 | - |
|
Техническая |
Bulk | SLP0712TE (750W) | Active | 3900 µF | ±20% | 50 V | 119mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.75 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
AFK228M25P44T-FCAP ALUM 2200UF 20% 25V SMD |
123 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 2200 µF | ±20% | 25 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.748 W (17.00mm x 19.00mm) | Surface Mount |
|
381LX470M450H022CAP ALUM 47UF 20% 450V SNAP |
1,530 | - |
|
Техническая |
Bulk | 381LX | Active | 47 µF | ±20% | 450 V | 5.644Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 600 mA @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
381LX331M250J022CAP ALUM 330UF 20% 250V SNAP |
139 | - |
|
Техническая |
Bulk | 381LX | Active | 330 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.7 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
380LQ122M200K032CAP ALUM 1200UF 20% 200V SNAP |
298 | - |
|
Техническая |
Bulk | 380LQ | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
SLPX561M250C5P3CAP ALUM 560UF 20% 250V SNAP |
179 | - |
|
Техническая |
Bulk | SLPX | Active | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.45 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
381LX123M025A012CAP ALUM 12000UF 20% 25V SNAP |
109 | - |
|
Техническая |
Bulk | 381LX | Active | 12000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.7 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
380LX820M500J032CAP ALUM 82UF 20% 500V SNAP |
154 | - |
|
Техническая |
Bulk | 380LX | Active | 82 µF | ±20% | 500 V | 1.63Ohm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
381LX821M200J052CAP ALUM 820UF 20% 200V SNAP |
144 | - |
|
Техническая |
Bulk | 381LX | Active | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
381LQ271M420J452CAP ALUM 270UF 20% 420V SNAP |
183 | - |
|
Техническая |
Bulk | 381LQ | Active | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
383LX122M250A052CAP ALUM 1200UF 20% 250V SNAP |
569 | - |
|
Техническая |
Bulk | 383LX | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
380LX820M500K012CAP ALUM 82UF 20% 500V SNAP |
275 | - |
|
Техническая |
Bulk | 380LX | Active | 82 µF | ±20% | 500 V | 2.455Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.2 A @ 20 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
383LX821M400N052CAP ALUM 820UF 20% 400V SNAP |
148 | - |
|
Техническая |
Bulk | 383LX | Active | 820 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
550C142T450BF2BCAP ALUM 1400UF 450V SCREW |
3,085 | - |
|
Техническая |
Bulk | 550C | Active | 1400 µF | -10%, +50% | 450 V | 53.3mOhm | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
MLP383M016EB0ACAP ALUM 38000UF 20% 16V FLATPCK |
212 | - |
|
Техническая |
Bulk | MLP | Active | 38000 µF | ±20% | 16 V | 31mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|

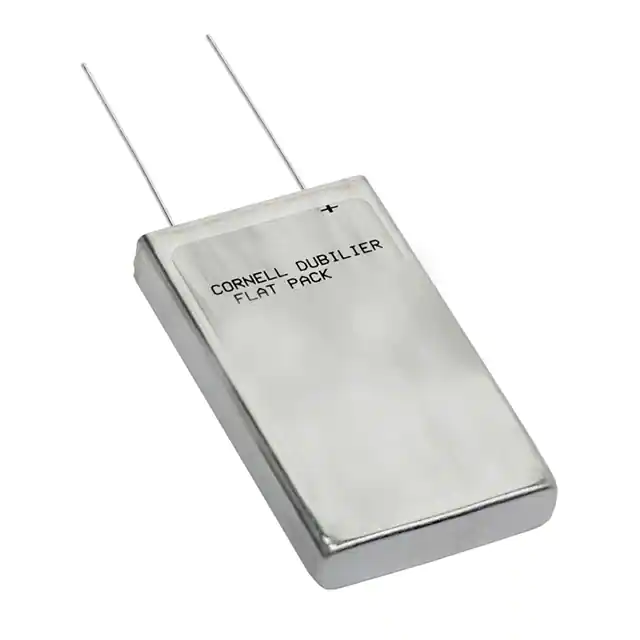

MLSG561M250EB1CCAP ALUM 560UF 20% 250V FLATPACK |
3,504 | - |
|
Техническая |
Bulk | MLSG Flatpack | Active | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Through Hole |
|
SEK330M016STCAP ALUM 33UF 20% 16V RADIAL |
1,813 | - |
|
Box | SEK | Active | 33 µF | ±20% | 16 V | 7.24Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 84 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.512 (13.00mm) | - | Through Hole |
