+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFK107M06D16T-FCAP ALUM 100UF 20% 6.3V SMD |
3,511 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT),Bulk | AFK | Active | 100 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK227M06D16T-FCAP ALUM 220UF 20% 6.3V SMD |
2,384 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 220 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK476M16D16T-FCAP ALUM 47UF 20% 16V SMD |
3,386 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 47 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK476M25D16T-FCAP ALUM 47UF 20% 25V SMD |
2,731 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 47 µF | ±20% | 25 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK226M50D16T-FCAP ALUM 22UF 20% 50V SMD |
3,410 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 22 µF | ±20% | 50 V | 880mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 123.8 mA @ 120 Hz | 165 mA @ 100 kHz | 880 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK106M63D16T-FCAP ALUM 10UF 20% 63V SMD |
3,795 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 10 µF | ±20% | 63 V | 1.5Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 80 mA @ 100 kHz | 1.5 Ohms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
AVE337M25G24T-FCAP ALUM 330UF 20% 25V SMD |
2,801 | - |
|
Техническая |
Cut Tape (CT) | AVE | Not For New Designs | 330 µF | ±20% | 25 V | 700mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 458 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.409 L x 0.409 W (10.40mm x 10.40mm) | Surface Mount |
|
AFK227M10X16T-FCAP ALUM 220UF 20% 10V SMD |
2,806 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 220 µF | ±20% | 10 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK227M16X16T-FCAP ALUM 220UF 20% 16V SMD |
2,031 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 220 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK337M06X16T-FCAP ALUM 330UF 20% 6.3V SMD |
2,760 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 330 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK476M50X16T-FCAP ALUM 47UF 20% 50V SMD |
3,736 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 47 µF | ±20% | 50 V | 680mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 146.2 mA @ 120 Hz | 195 mA @ 100 kHz | 680 mOhms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
AFK226M63X16T-FCAP ALUM 22UF 20% 63V SMD |
2,638 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 22 µF | ±20% | 63 V | 1.2Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 90 mA @ 120 Hz | 120 mA @ 100 kHz | 1.2 Ohms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|

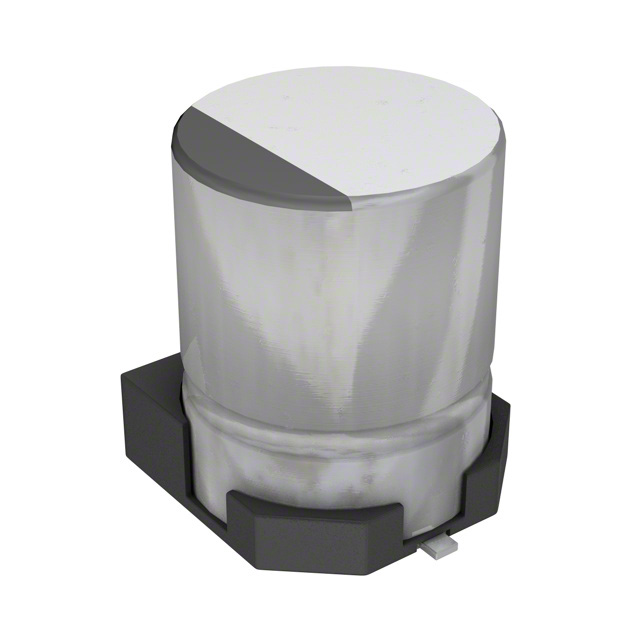

AVS227M25F24T-FCAP ALUM 220UF 20% 25V SMD |
2,792 | - |
|
Техническая |
Cut Tape (CT) | AVS | Not For New Designs | 220 µF | ±20% | 25 V | 1.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 140 mA @ 120 Hz | 238 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
AFK107M25E16T-FCAP ALUM 100UF 20% 25V SMD |
3,056 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 100 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 225 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.374 W (8.30mm x 9.50mm) | Surface Mount |
|
|
AFK227M10E16T-FCAP ALUM 220UF 20% 10V SMD |
2,042 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 220 µF | ±20% | 10 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 225 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.374 W (8.30mm x 9.50mm) | Surface Mount |
|
|
AFK337M06E16T-FCAP ALUM 330UF 20% 6.3V SMD |
2,284 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 330 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 225 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.374 W (8.30mm x 9.50mm) | Surface Mount |
|
|
AFK476M50E16T-FCAP ALUM 47UF 20% 50V SMD |
3,294 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 47 µF | ±20% | 50 V | 680mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 146.2 mA @ 120 Hz | 195 mA @ 100 kHz | 680 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.374 W (8.30mm x 9.50mm) | Surface Mount |
|
SK2R2M450STCAP ALUM 2.2UF 20% 450V RADIAL |
2,575 | - |
|
Техническая |
Bulk | SK | Active | 2.2 µF | ±20% | 450 V | 120.63Ohm | 2000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
|
AFK226M63E16T-FCAP ALUM 22UF 20% 63V SMD |
3,227 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 22 µF | ±20% | 63 V | 1.2Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 90 mA @ 120 Hz | 120 mA @ 100 kHz | 1.2 Ohms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.374 W (8.30mm x 9.50mm) | Surface Mount |
|
SEK221M063STCAP ALUM 220UF 20% 63V RADIAL |
3,614 | - |
|
Техническая |
Bulk | SEK | Active | 220 µF | ±20% | 63 V | 600mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
