+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43644B9567M000CAP ALUM 560UF 20% 400V SNAP |
118 | - |
|
Техническая |
Bulk | B43644 | Active | 560 µF | ±20% | 400 V | 170mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 100 Hz | - | 260 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
B43509A5477M000CAP ALUM 470UF 20% 450V SNAP |
119 | - |
|
Техническая |
Bulk | B43509 | Active | 470 µF | ±20% | 450 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | - | 330 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43544A6397M000CAP ALUM 390UF 20% 500V SNAP |
1,319 | - |
|
Техническая |
Bulk | B43544 | Active | 390 µF | ±20% | 500 V | 210mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.21 A @ 100 Hz | - | 320 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
B43544A9687M000CAP ALUM 680UF 20% 400V SNAP |
240 | - |
|
Техническая |
Tray | B43544 | Active | 680 µF | ±20% | 400 V | 90mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.15 A @ 100 Hz | - | 130 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
B43644A5567M000CAP ALUM 560UF 20% 450V SNAP |
625 | - |
|
Техническая |
Bulk | B43644 | Active | 560 µF | ±20% | 450 V | 190mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | - | 290 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43541A8227M000CAP ALUM 220UF 20% 600V SNAP |
519 | - |
|
Техническая |
Tray | B43541 | Active | 220 µF | ±20% | 600 V | 530mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.93 A @ 100 Hz | - | 830 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.244 (57.00mm) | - | Through Hole |
|
|
B43644A9827M000CAP ALUM 820UF 20% 400V SNAP |
1,116 | - |
|
Техническая |
Bulk | B43644 | Active | 820 µF | ±20% | 400 V | 120mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.97 A @ 100 Hz | - | 180 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.244 (57.00mm) | - | Through Hole |
|
B43642A5687M000CAP ALUM 680UF 20% 450V SNAP |
120 | - |
|
Техническая |
Bulk | B43642 | Active | 680 µF | ±20% | 450 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.03 A @ 100 Hz | - | 180 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43504A2108M000CAP ALUM 1000UF 20% 250V SNAP |
1,440 | - |
|
Техническая |
Bulk | B43504 | Not For New Designs | 1000 µF | ±20% | 250 V | 130mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | - | 160 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
B43630A9128M000CAP ALUM 1200UF 20% 400V SNAP |
240 | - |
|
Техническая |
Bulk | B43630 | Active | 1200 µF | ±20% | 400 V | 100mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.44 A @ 100 Hz | - | 170 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.244 (57.00mm) | - | Through Hole |
|
B41896C7227M000CAP ALUM 220UF 20% 35V RADIAL |
12,000 | - |
|
Техническая |
Bulk | B41896 | Active | 220 µF | ±20% | 35 V | 689mOhm @ 120Hz | - | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 965 mA @ 100 kHz | - | - | - | - | - | Through Hole |
|

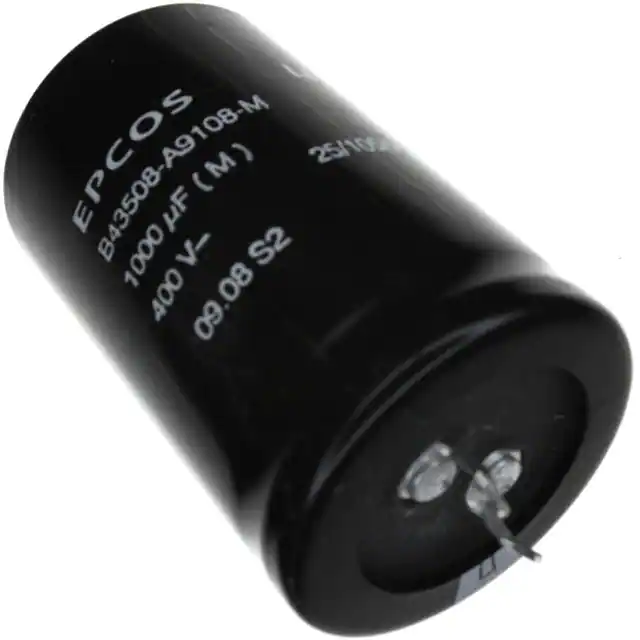

B43508A9108M000CAP ALUM 1000UF 20% 400V SNAP |
1,131 | - |
|
Техническая |
Bulk | B43508 | Not For New Designs | 1000 µF | ±20% | 400 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 100 Hz | - | 180 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.165 (55.00mm) | - | Through Hole |
|

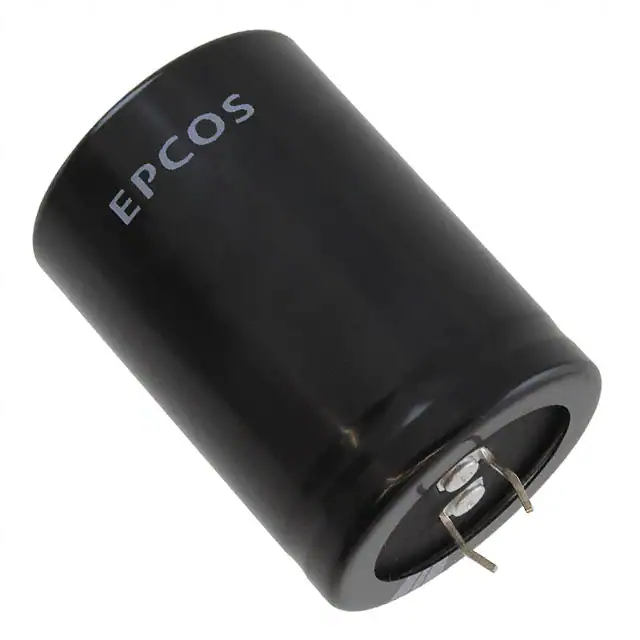

B43501A5477M000CAP ALUM 470UF 20% 450V SNAP |
840 | - |
|
Техническая |
Bulk | B43501 | Not For New Designs | 470 µF | ±20% | 450 V | 280mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | - | 340 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
B41456B7479M000CAP ALUM 47000UF 20% 40V SCREW |
522 | - |
|
Техническая |
Bulk | B41456 | Active | 47000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 10 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis Mount |
|

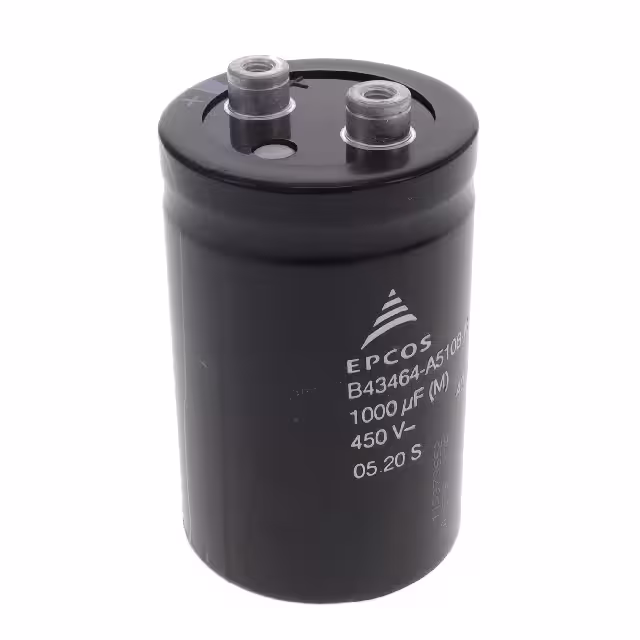

B43464A5108M000CAP ALUM 1000UF 20% 450V SCREW |
105 | - |
|
Техническая |
Bulk | B43464 | Not For New Designs | 1000 µF | ±20% | 450 V | 110mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | - | 138 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B43707A9228M600CAP ALUM 2200UF 20% 400V SCREW |
140 | - |
|
Техническая |
Bulk | B43707 | Active | 2200 µF | ±20% | 400 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.65 A @ 100 Hz | - | 85 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B43310A5278M000CAP ALUM 2700UF 20% 450V SCREW |
449 | - |
|
Техническая |
Bulk | B43310 | Not For New Designs | 2700 µF | ±20% | 450 V | 68mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 120 Hz | - | - | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.528 (115.00mm) | - | Chassis Mount |
|
B41560A8100M000CAP ALUM 100000UF 20% 63V SCREW |
313 | - |
|
Техническая |
Bulk | B41560 | Active | 100000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 6.6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.638 (143.20mm) | - | Chassis Mount |
|
B43504A2337M000CAP ALUM 330UF 20% 200V SNAP |
511 | - |
|
Техническая |
Bulk | B43504 | Not For New Designs | 330 µF | ±20% | 200 V | 390mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | 470 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

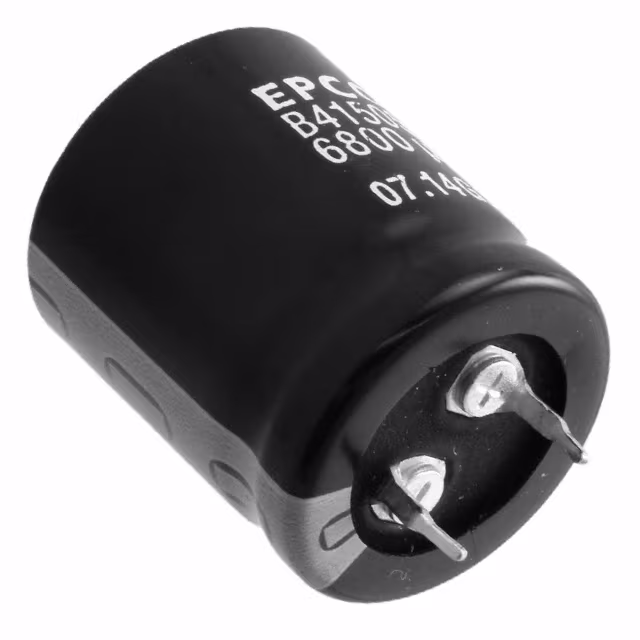

B41505A5688M000CAP ALUM 6800UF 20% 25V SNAP |
258 | - |
|
Техническая |
Bulk | B41505 | Active | 6800 µF | ±20% | 25 V | 41mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | - | 43 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
