| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43743C9478M007CAP ALUM 4700UF 20% 400V SCREW |
3,108 | - |
|
Bulk | B43743 | Active | 4700 µF | ±20% | 400 V | 20mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.5 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 3.858 (98.00mm) | - | Chassis Mount | |
|
B43564A5688M000CAP ALUM 6800UF 20% 450V SCREW |
3,008 | - |
|

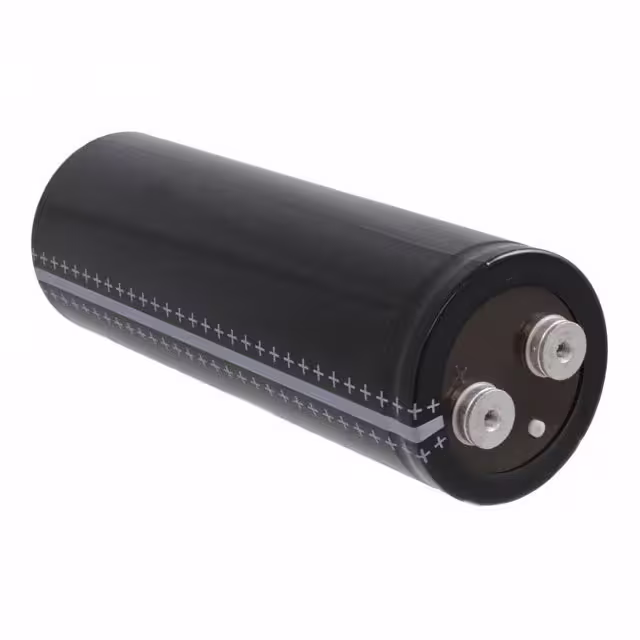

Техническая |
Bulk | B43564 | Active | 6800 µF | ±20% | 450 V | 24mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.1 A @ 100 Hz | - | 19 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
B43733A4129M000CAP ALUM 12000UF 20% 350V SCREW |
2,240 | - |
|
Bulk | B43733 | Active | 12000 µF | ±20% | 350 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 28.5 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount | |
|
B43713A4688M000CAP ALUM 6800UF 20% 350V SCREW |
3,294 | - |
|
Техническая |
Bulk | B43713 | Active | 6800 µF | ±20% | 350 V | 18mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.027 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount |
|
|
B43763B5478M000CAP ALUM 4700UF 20% 450V SCREW |
2,382 | - |
|
Bulk | B43763 | Active | 4700 µF | ±20% | 450 V | 19mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.9 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
|
B43763A5568M000CAP ALUM 5600UF 20% 450V SCREW |
2,031 | - |
|
Bulk | B43763 | Active | 5600 µF | ±20% | 450 V | 16mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 24 mOhms | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 5.677 (144.20mm) | - | Chassis Mount | |
|
B43704B6478M050CAP ALUM 4700UF 20% 500V SCREW |
3,007 | - |
|
Bulk | B43704 | Active | 4700 µF | ±20% | 500 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount | |
|
|
B43704B6478M007CAP ALUM 4700UF 20% 500V SCREW |
2,944 | - |
|
Bulk | B43704 | Active | 4700 µF | ±20% | 500 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount | |
|
|
B43704B6478M000CAP ALUM 4700UF 20% 500V SCREW |
3,699 | - |
|
Bulk | B43704 | Active | 4700 µF | ±20% | 500 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount | |
|
|
B43724A5688M000CAP ALUM 6800UF 20% 450V SCREW |
3,173 | - |
|
Bulk | B43724 | Active | 6800 µF | ±20% | 450 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 24 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount | |
|
|
B43713A9109M000CAP ALUM 10000UF 20% 400V SCREW |
3,320 | - |
|
Bulk | B43713 | Active | 10000 µF | ±20% | 400 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.1 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount | |
|
|
B43733B2189M000CAP ALUM 18000UF 20% 200V SCREW |
2,572 | - |
|
Техническая |
Bulk | B43733 | Active | 18000 µF | ±20% | 200 V | 9.2mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.8 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount |
|
|
B43584A6398M000CAP ALUM 3900UF 20% 500V SCREW |
3,622 | - |
|
Техническая |
Bulk | B43584 | Not For New Designs | 3900 µF | ±20% | 500 V | 28mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | - | 34 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
B43721A9828M000CAP ALUM 8200UF 20% 400V SCREW |
3,663 | - |
|
Техническая |
Bulk | B43721 | Active | 8200 µF | ±20% | 400 V | 16mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.3 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount |
|
|
B43712B9109M000CAP ALUM 10000UF 20% 400V SCREW |
3,106 | - |
|
Bulk | B43712 | Active | 10000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount | |
|
|
B43725A5688M000CAP ALUM 6800UF 20% 450V SCREW |
3,005 | - |
|
Bulk | B43725 | Active | 6800 µF | ±20% | 450 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.681 (169.70mm) | - | Chassis Mount | |
|
|
B43704B7398M000CAP ALUM 3900UF 20% 550V SCREW |
3,594 | - |
|
Техническая |
Bulk | B43704 | Active | 3900 µF | ±20% | 550 V | 28mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.7 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount |
|
|
B43584A4109M000CAP ALUM 10000UF 20% 350V SCREW |
3,431 | - |
|
Техническая |
Bulk | B43584 | Active | 10000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43743A9828M000CAP ALUM 8200UF 20% 400V SCREW |
2,061 | - |
|
Bulk | B43743 | Active | 8200 µF | ±20% | 400 V | 11mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.4 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount | |
|
|
B43701A5688M000CAP ALUM 6800UF 20% 450V SCREW |
2,959 | - |
|
Техническая |
Bulk | B43701 | Active | 6800 µF | ±20% | 450 V | 18mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount |
