| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43705A5129M000CAP ALUM 12000UF 20% 450V SCREW |
2,140 | - |
|
Техническая |
Bulk | B43705 | Active | 12000 µF | ±20% | 450 V | 8.4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.1 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B43704A9189M000CAP ALUM 18000UF 20% 400V SCREW |
3,513 | - |
|
Техническая |
Bulk | B43704 | Active | 18000 µF | ±20% | 400 V | 6.5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 46.4 A @ 100 Hz | - | 12 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
B43723A5159M000CAP ALUM 15000UF 20% 450V SCREW |
2,765 | - |
|
Техническая |
Bulk | B43723 | Active | 15000 µF | ±20% | 450 V | 6.7mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.7 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
B43704A7828M000CAP ALUM 8200UF 20% 550V SCREW |
3,324 | - |
|
Техническая |
Bulk | B43704 | Active | 8200 µF | ±20% | 550 V | 13mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.2 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
B43742A4189M000CAP ALUM 18000UF 20% 350V SCREW |
2,941 | - |
|
Техническая |
Bulk | B43742 | Active | 18000 µF | ±20% | 350 V | 5.1mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.559 (192.00mm) | - | Chassis Mount |
|
|
B43742A5109M000CAP ALUM 10000UF 20% 450V SCREW |
3,753 | - |
|
Техническая |
Bulk | B43742 | Active | 10000 µF | ±20% | 450 V | 9.8mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
B43762A5109M000CAP ALUM 10000UF 20% 450V SCREW |
3,415 | - |
|
Техническая |
Bulk | B43762 | Active | 10000 µF | ±20% | 450 V | 9.8mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
B43762A9189M058CAP ALUM 18000UF 20% 400V SCREW |
2,769 | - |
|
Bulk | B43762 | Active | 18000 µF | ±20% | 400 V | 6.4mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 34.3 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount | |
|
|
B43713A5109M000CAP ALUM 10000UF 20% 450V SCREW |
3,671 | - |
|
Техническая |
Bulk | B43713 | Active | 10000 µF | ±20% | 450 V | 12mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.3 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B43742A4229M000CAP ALUM 22000UF 20% 350V SCREW |
3,163 | - |
|
Техническая |
Bulk | B43742 | Active | 22000 µF | ±20% | 350 V | 4.2mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 37.9 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B43720A8568M000CAP ALUM 5600UF 20% 600V SCREW |
2,354 | - |
|
Tray | B43720 | Active | 5600 µF | ±20% | 600 V | 17mOhm @ 100Hz | 6000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.2 A @ 100 Hz | - | 24 mOhms | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 7.559 (192.00mm) | - | Chassis Mount | |
|
|
B43720B8688M000CAP ALUM 6800UF 20% 600V SCREW |
3,486 | - |
|
Техническая |
Bulk | B43720 | Active | 6800 µF | ±20% | 600 V | 15mOhm @ 100Hz | 6000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B43700B8688M050CAP ALUM 6800UF 20% 600V SCREW |
2,030 | - |
|
Техническая |
Bulk | B43700 | Active | 6800 µF | ±20% | 600 V | 15mOhm @ 100Hz | 6000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B41851F7227M000CAP ALUM 220UF 20% 35V RADIAL |
2,689 | - |
|
Техническая |
Bulk | B41851 | Active | 220 µF | ±20% | 35 V | 1.1Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

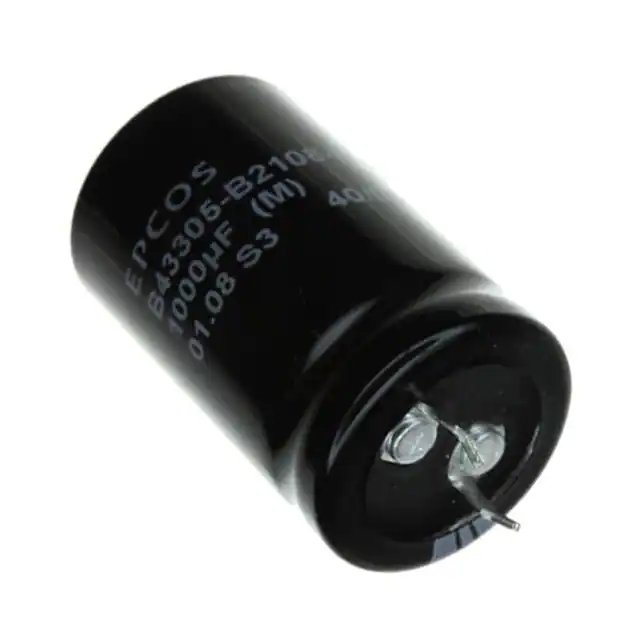

B43305B2108M000CAP ALUM 1000UF 20% 200V SNAP |
3,572 | - |
|
Техническая |
Bulk | B43305 | Active | 1000 µF | ±20% | 200 V | 130mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.76 A @ 100 Hz | - | 180 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

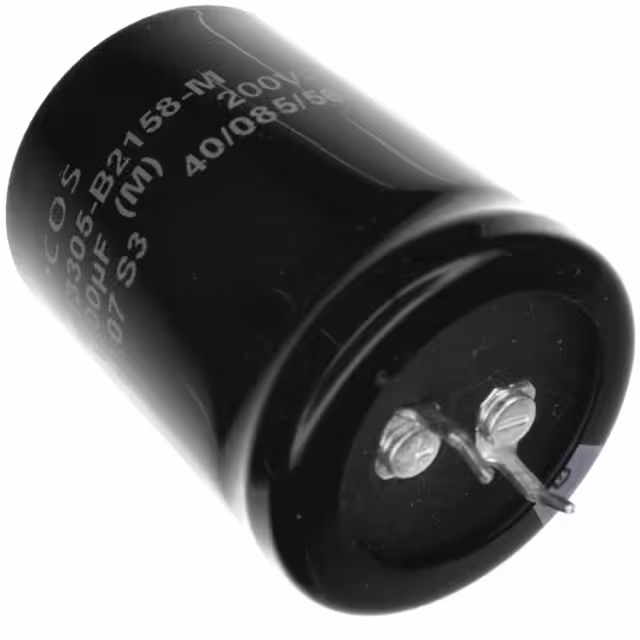

B43305B2158M000CAP ALUM 1500UF 20% 200V SNAP |
3,210 | - |
|
Техническая |
Bulk | B43305 | Active | 1500 µF | ±20% | 200 V | 85mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.44 A @ 100 Hz | - | 120 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

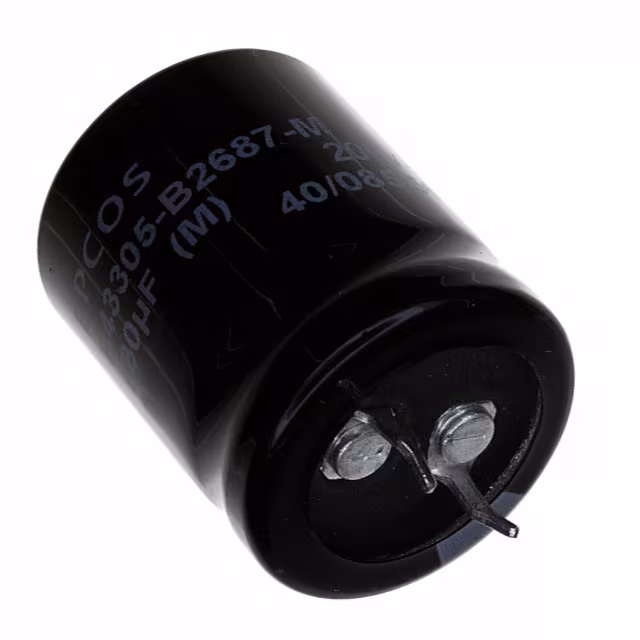

B43305B2687M000CAP ALUM 680UF 20% 200V SNAP |
3,332 | - |
|
Техническая |
Bulk | B43305 | Active | 680 µF | ±20% | 200 V | 190mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | - | 260 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
B43564A9108M000CAP ALUM 1000UF 20% 400V SCREW |
3,033 | - |
|
Техническая |
Bulk | B43564 | Obsolete | 1000 µF | ±20% | 400 V | - | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
|
B43564B9228M000CAP ALUM 2200UF 20% 400V SCREW |
3,169 | - |
|
Техническая |
Bulk | B43564 | Obsolete | 2200 µF | ±20% | 400 V | 72mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | 58 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.177 (80.70mm) | - | Chassis Mount |
|
B43564A2688M000CAP ALUM 6800UF 20% 250V SCREW |
2,747 | - |
|
Техническая |
Bulk | B43564 | Active | 6800 µF | ±20% | 250 V | 29mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | - | 23 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.638 (143.20mm) | - | Chassis Mount |
