+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25SEV33M6.3X5.5CAP ALUM 33UF 20% 25V SMD |
2,866 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 54 mA @ 120 Hz | 81 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

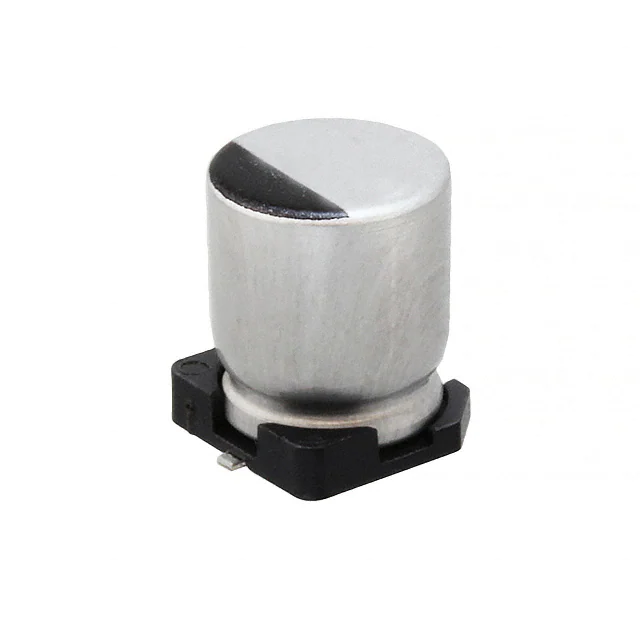

16SGV100M6.3X8CAP ALUM 100UF 20% 16V SMD |
850 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 111 mA @ 120 Hz | 133.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

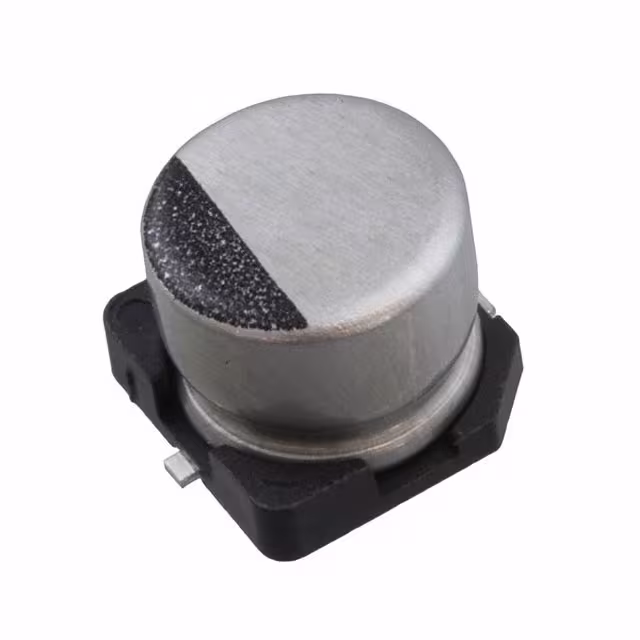

25SZV10M5X5.5CAP ALUM 10UF 20% 25V SMD |
3,411 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SZV | Active | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
16SEV100M6.3X5.5CAP ALUM 100UF 20% 16V SMD |
3,037 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 86 mA @ 120 Hz | 103.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

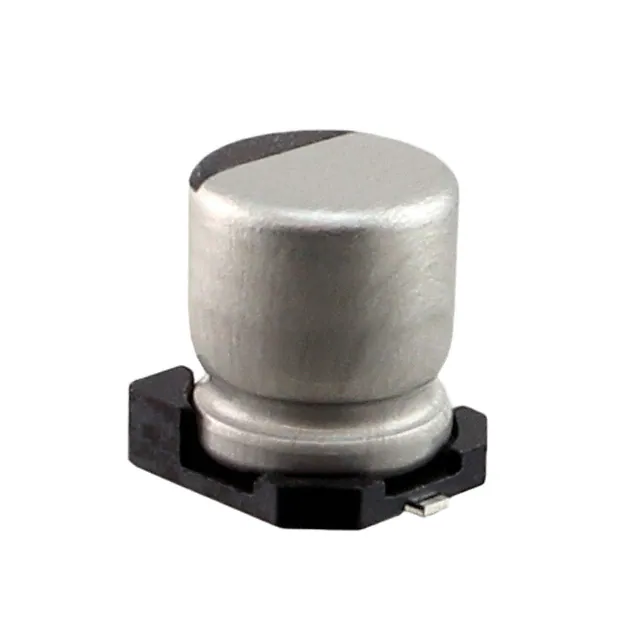

35SLV10M5X6.1CAP ALUM 10UF 20% 35V SMD |
994 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SLV | Active | 10 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
16SGV47M6.3X6.1CAP ALUM 47UF 20% 16V SMD |
2,715 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 105 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
35THV47M6.3X8CAP ALUM 47UF 20% 35V SMD |
2,850 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | THV | Active | 47 µF | ±20% | 35 V | 700mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 100 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
25SZV33M6.3X5.5CAP ALUM 33UF 20% 25V SMD |
2,195 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SZV | Active | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 77 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
35SZV22M6.3X5.5CAP ALUM 22UF 20% 35V SMD |
2,427 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SZV | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 77 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

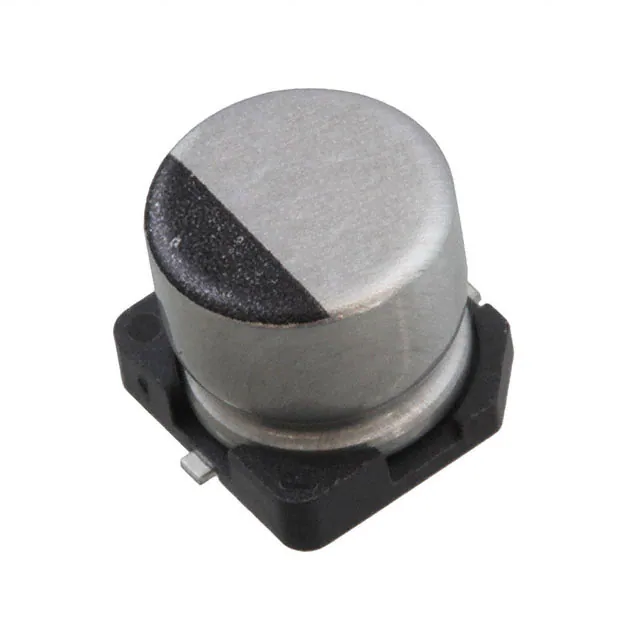

6.3SLV100M6.3X6.1CAP ALUM 100UF 20% 6.3V SMD |
2,245 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SLV | Active | 100 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 69 mA @ 120 Hz | 82.8 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
10SEV220M6.3X8CAP ALUM 220UF 20% 10V SMD |
2,988 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 175 mA @ 120 Hz | 210 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

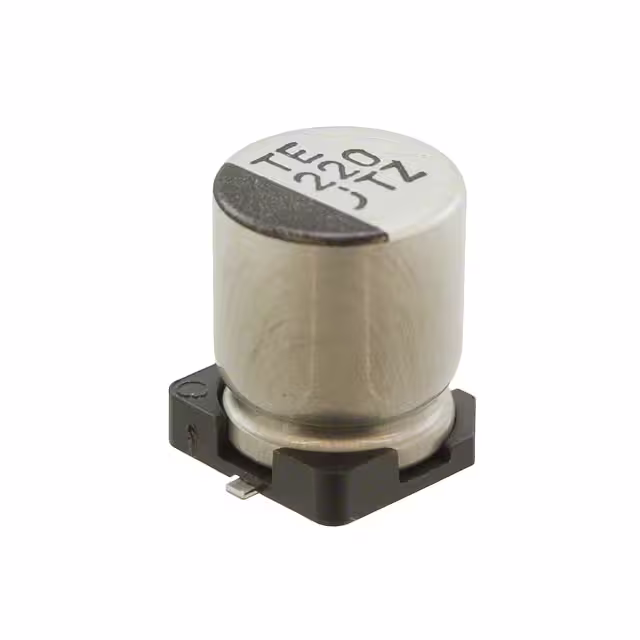

6.3TZV220M6.3X8CAP ALUM 220UF 20% 6.3V SMD |
2,845 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 300 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
50SGV22M6.3X8CAP ALUM 22UF 20% 50V SMD |
2,554 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 67 mA @ 120 Hz | 100.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
35TXV47M6.3X8CAP ALUM 47UF 20% 35V SMD |
3,479 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TXV | Active | 47 µF | ±20% | 35 V | 700mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 55 mA @ 120 Hz | 110 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
35TXV33M6.3X8CAP ALUM 33UF 20% 35V SMD |
2,963 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TXV | Active | 33 µF | ±20% | 35 V | 300mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 63 mA @ 120 Hz | 140 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
25JZV100M6.3X8CAP ALUM 100UF 20% 25V SMD |
655 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | JZV | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
50THV22M6.3X8CAP ALUM 22UF 20% 50V SMD |
3,629 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | THV | Active | 22 µF | ±20% | 50 V | 900mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 67.5 mA @ 120 Hz | 150 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
16SJV100M6.3X8CAP ALUM 100UF 20% 16V SMD |
3,032 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SJV | Active | 100 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 81 mA @ 120 Hz | 97.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
6.3SJV220M6.3X8CAP ALUM 220UF 20% 6.3V SMD |
900 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SJV | Active | 220 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 144 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
25YXG470MEFCT810X16CAP ALUM 470UF 20% 25V RADIAL |
3,452 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | YXG | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665.5 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
