| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

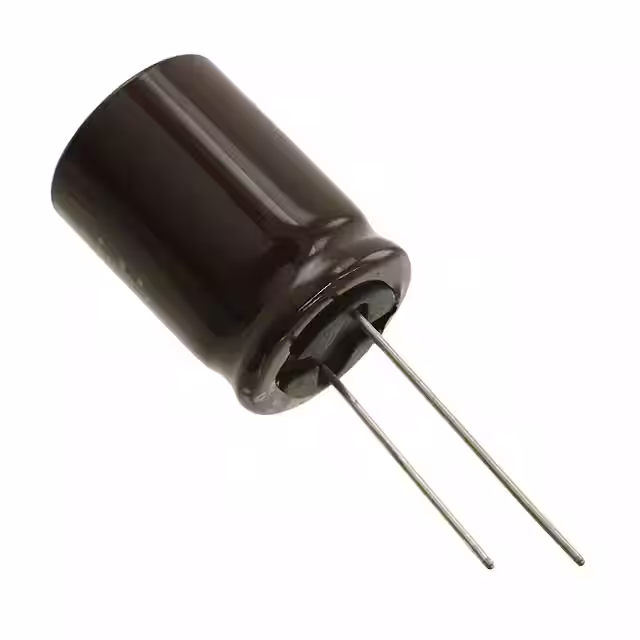

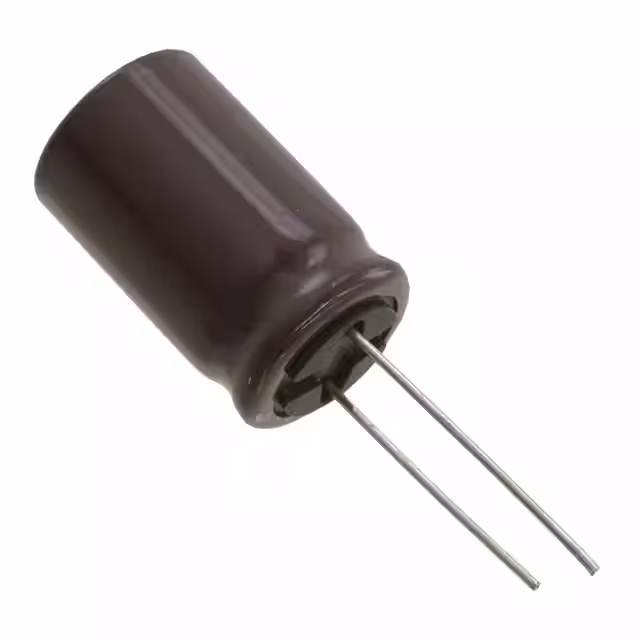

UPB2E680MHD1TNCAP ALUM 68UF 20% 250V RADIAL |
3,800 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 68 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPB2G220MHD1TOCAP ALUM 22UF 20% 400V RADIAL |
3,296 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 22 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
UPB2G330MHD1TNCAP ALUM 33UF 20% 400V RADIAL |
3,079 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 33 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPB2G470MHD1TNCAP ALUM 47UF 20% 400V RADIAL |
3,506 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 47 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPB2V100MPD1TDCAP ALUM 10UF 20% 350V RADIAL |
2,295 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 10 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

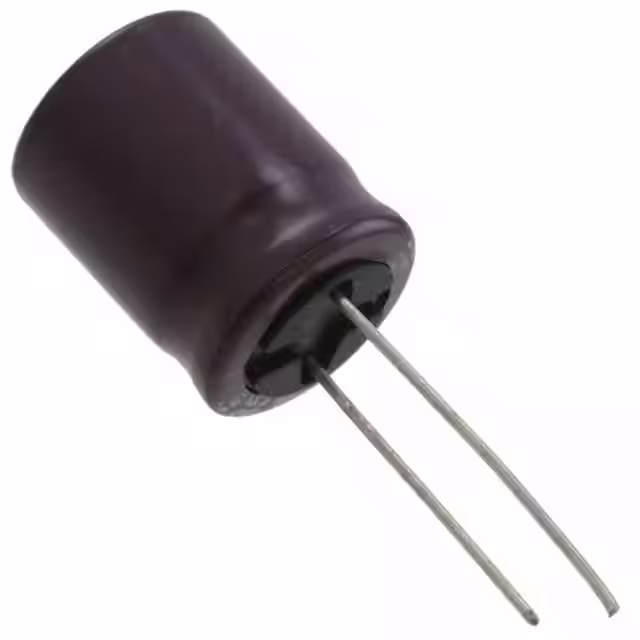

UPB2V330MHD1TNCAP ALUM 33UF 20% 350V RADIAL |
2,957 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 33 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UPB2W220MHD1TNCAP ALUM 22UF 20% 450V RADIAL |
3,898 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 22 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 275 mA @ 120 Hz | 550 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPB2W330MHD1TNCAP ALUM 33UF 20% 450V RADIAL |
2,619 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPB | Obsolete | 33 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPM1C561MHD6TOCAP ALUM 560UF 20% 16V RADIAL |
3,401 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 560 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 920 mA @ 10 kHz | 80 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.669 (17.00mm) | - | Through Hole |
|

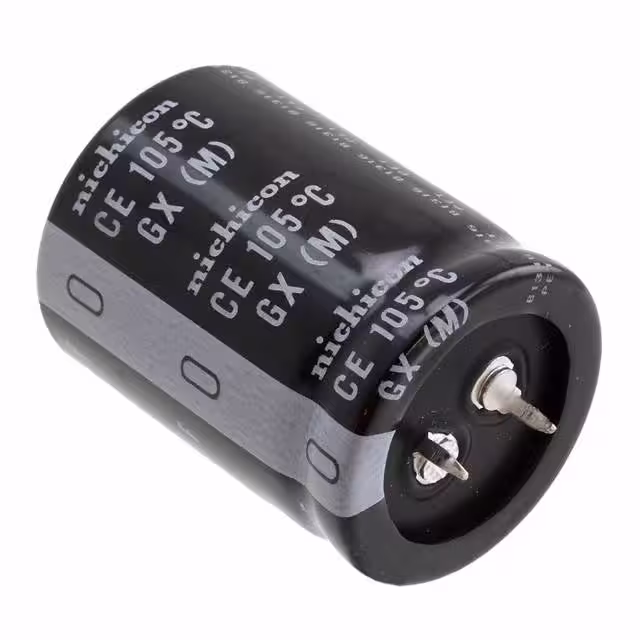

LGX2G271MELC25CAP ALUM 270UF 20% 400V SNAP |
3,310 | - |
|
Техническая |
Bulk | LGX | Obsolete | 270 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LGX2D122MELB40CAP ALUM 1200UF 20% 200V SNAP |
2,185 | - |
|
Техническая |
Bulk | LGX | Obsolete | 1200 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.795 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UWS1H470MCL1GSCAP ALUM 47UF 20% 50V SMD |
2,799 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UWS | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 140 mA @ 120 Hz | 233.8 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

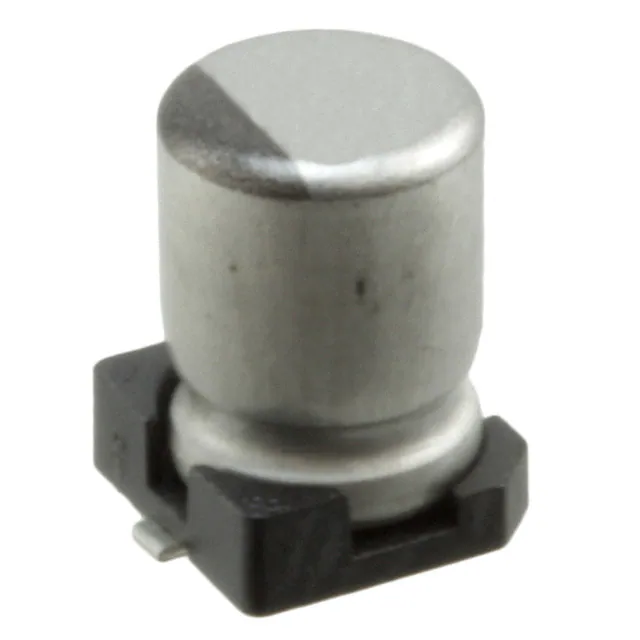

UUT1H0R1MCL1GSCAP ALUM 0.1UF 20% 50V SMD |
3,210 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUT | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UUT1HR22MCL1GSCAP ALUM 0.22UF 20% 50V SMD |
3,651 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUT | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.9 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UUT1HR33MCL1GSCAP ALUM 0.33UF 20% 50V SMD |
2,625 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUT | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 4.8 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UUT1HR47MCL1GSCAP ALUM 0.47UF 20% 50V SMD |
2,171 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUT | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 5.7 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UWS0J471MCL1GSCAP ALUM 470UF 20% 6.3V SMD |
2,983 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UWS | Obsolete | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 265 mA @ 120 Hz | 344.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UWS1A102MCL1GSCAP ALUM 1000UF 20% 10V SMD |
2,399 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UWS | Obsolete | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 454 mA @ 120 Hz | 590.2 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UWS1C471MCL1GSCAP ALUM 470UF 20% 16V SMD |
3,046 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UWS | Obsolete | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 330 mA @ 120 Hz | 429 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWS1E101MCL1GSCAP ALUM 100UF 20% 25V SMD |
2,034 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UWS | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 145 mA @ 120 Hz | 188.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
