+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCL1C100MCL1GSCAP ALUM 10UF 20% 16V SMD |
3,930 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 850 mOhms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UCD1C470MCL1GSCAP ALUM 47UF 20% 16V SMD |
5,000 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

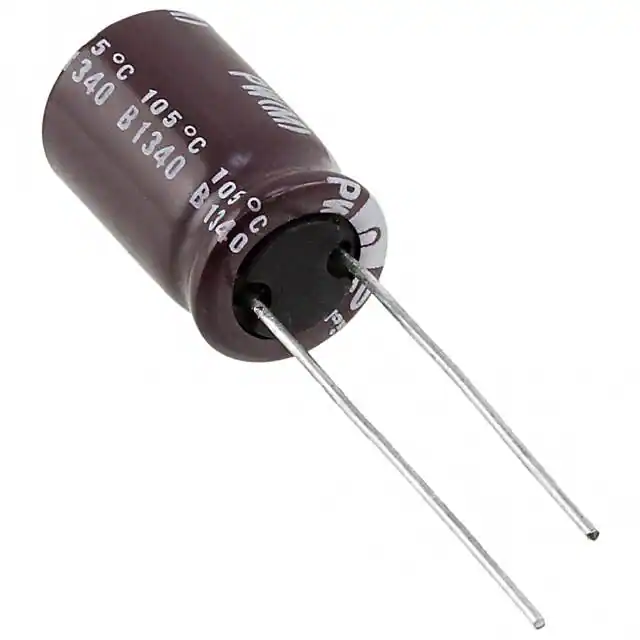

UPW1E471MPD1TDCAP ALUM 470UF 20% 25V RADIAL |
37,477 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 787.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UTT1E221MPD1TDCAP ALUM 220UF 20% 25V RADIAL |
8,605 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UTT | Active | 220 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 178.8 mA @ 120 Hz | 298 mA @ 100 kHz | 400 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UKA1C101MDD1TDCAP ALUM 100UF 20% 16V RADIAL |
5,918 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UKA | Not For New Designs | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 115 mA @ 120 Hz | 172.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPM1H101MPD1TDCAP ALUM 100UF 20% 50V RADIAL |
4,714 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 100 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | - | 140 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UUQ0J220MCL1GBCAP ALUM 22UF 20% 6.3V SMD |
2,919 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUQ | Active | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 22 mA @ 120 Hz | 33 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UZS0J470MCL1GBCAP ALUM 47UF 20% 6.3V SMD |
36,000 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 45 mA @ 120 Hz | 67.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.181 (4.60mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

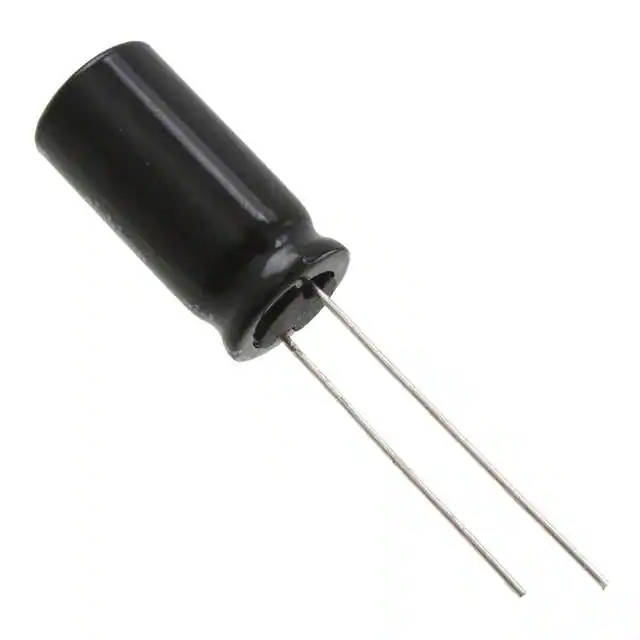

UVR1E102MPD1TDCAP ALUM 1000UF 20% 25V RADIAL |
3,054 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.104 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UCB1C100MCL1GSCAP ALUM 10UF 20% 16V SMD |
5,840 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCB | Active | 10 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UUA1H3R3MCL1GSCAP ALUM 3.3UF 20% 50V SMD |
4,271 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUA | Active | 3.3 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 25.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UPJ1H101MPD6TDCAP ALUM 100UF 20% 50V RADIAL |
675 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 580 mA @ 10 kHz | 210 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UBT1H010MPD1TDCAP ALUM 1UF 20% 50V RADIAL |
5,666 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UBT | Not For New Designs | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 17.5 mA @ 120 Hz | 35 mA @ 100 kHz | 2 Ohms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
UUR0G471MCL1GSCAP ALUM 470UF 20% 4V SMD |
4,403 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUR | Not For New Designs | 470 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 200 mA @ 120 Hz | 260 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCW1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
3,070 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCW | Active | 10 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | 2.2 Ohms | - | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
UCW1V220MCL1GSCAP ALUM 22UF 20% 35V SMD |
3,702 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCW | Active | 22 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | 2.2 Ohms | - | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

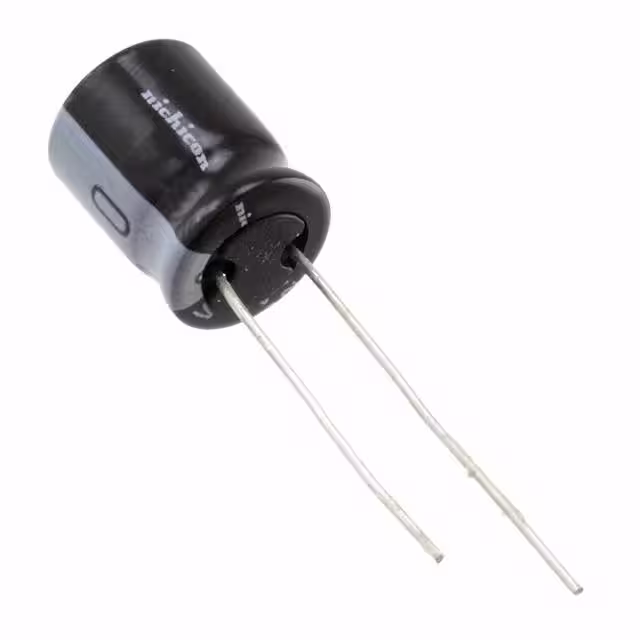

UVZ1E331MPD1TDCAP ALUM 330UF 20% 25V RADIAL |
2,718 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 330 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UUX2A4R7MCL1GSCAP ALUM 4.7UF 20% 100V SMD |
33,874 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUX | Active | 4.7 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 42 mA @ 120 Hz | 70.14 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UVR1V220MDDCAP ALUM 22UF 20% 35V RADIAL |
6,211 | - |
|
Техническая |
Bulk | UVR | Not For New Designs | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
UVR1H3R3MDDCAP ALUM 3.3UF 20% 50V RADIAL |
6,743 | - |
|
Техническая |
Bulk | UVR | Not For New Designs | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 70 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
