| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM2F010MPD1TDCAP ALUM 1UF 20% 315V RADIAL |
986 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 1 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 30.4 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPV1V560MGD1TDCAP ALUM 56UF 20% 35V RADIAL |
893 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPV | Not For New Designs | 56 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 480 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPV1V820MGD1TDCAP ALUM 82UF 20% 35V RADIAL |
674 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPV | Not For New Designs | 82 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 320 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

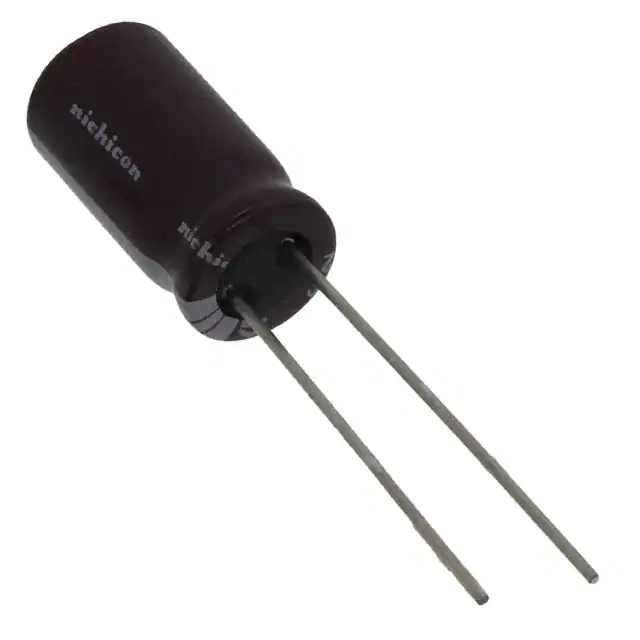

UPA1E471MPD1TDCAP ALUM 470UF 20% 25V RADIAL |
380 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 470 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 860 mA @ 100 kHz | 62 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPM1H390MED1TDCAP ALUM 39UF 20% 50V RADIAL |
936 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 39 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 260 mA @ 10 kHz | 360 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UUQ1E4R7MCL1GBCAP ALUM 4.7UF 20% 25V SMD |
710 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUQ | Active | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 13 mA @ 120 Hz | 19.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UCD1V680MCL1GSCAP ALUM 68UF 20% 35V SMD |
567 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 145 mA @ 120 Hz | 290 mA @ 100 kHz | 320 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCW1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
519 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCW | Active | 47 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 140 mA @ 100 kHz | 1.1 Ohms | - | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UUX0J221MNL1GSCAP ALUM 220UF 20% 6.3V SMD |
414 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUX | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 161 mA @ 120 Hz | 209.3 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
UPV1A271MGD1TDCAP ALUM 270UF 20% 10V RADIAL |
691 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPV | Not For New Designs | 270 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 340 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

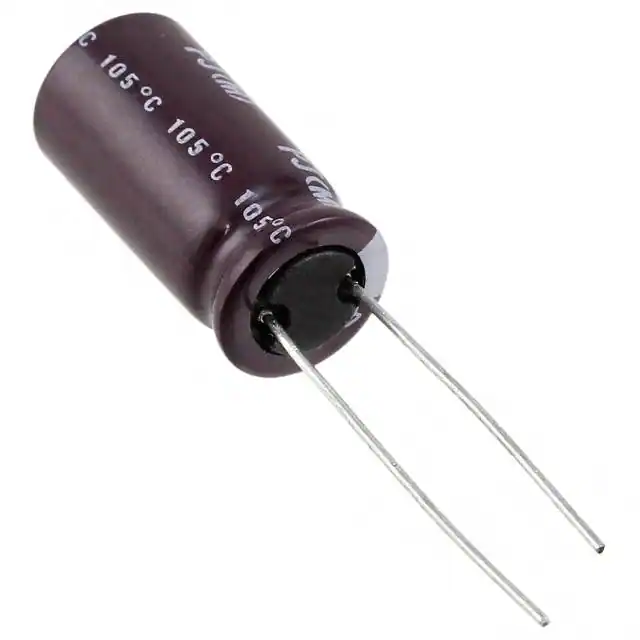

UPJ1H151MPD1TDCAP ALUM 150UF 20% 50V RADIAL |
2,624 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 150 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 820 mA @ 10 kHz | 130 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UPV0J271MGD1TDCAP ALUM 270UF 20% 6.3V RADIAL |
962 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPV | Not For New Designs | 270 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 410 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPS1A152MPD1TDCAP ALUM 1500UF 20% 10V RADIAL |
891 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 1500 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1 A @ 100 kHz | 110 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UVR2F100MPD1TDCAP ALUM 10UF 20% 315V RADIAL |
482 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 10 µF | ±20% | 315 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 184 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UFG1K330MPM1TDCAP ALUM 33UF 20% 80V RADIAL |
341 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UFG | Not For New Designs | 33 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 130 mA @ 120 Hz | 260 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UVZ2F100MPD1TDCAP ALUM 10UF 20% 315V RADIAL |
262 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 10 µF | ±20% | 315 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 128 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UFG1A221MPM1TDCAP ALUM 220UF 20% 10V RADIAL |
703 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UFG | Not For New Designs | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 170 mA @ 120 Hz | 255 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPJ0J102MHD6TOCAP ALUM 1000UF 20% 6.3V RADIAL |
415 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 765 mA @ 120 Hz | 890 mA @ 10 kHz | 130 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | - | Through Hole |
|
UPW1V331MPD1TDCAP ALUM 330UF 20% 35V RADIAL |
270 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 330 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 682.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPS1C681MPD1TDCAP ALUM 680UF 20% 16V RADIAL |
184 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 568 mA @ 120 Hz | 800 mA @ 100 kHz | 140 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
