+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

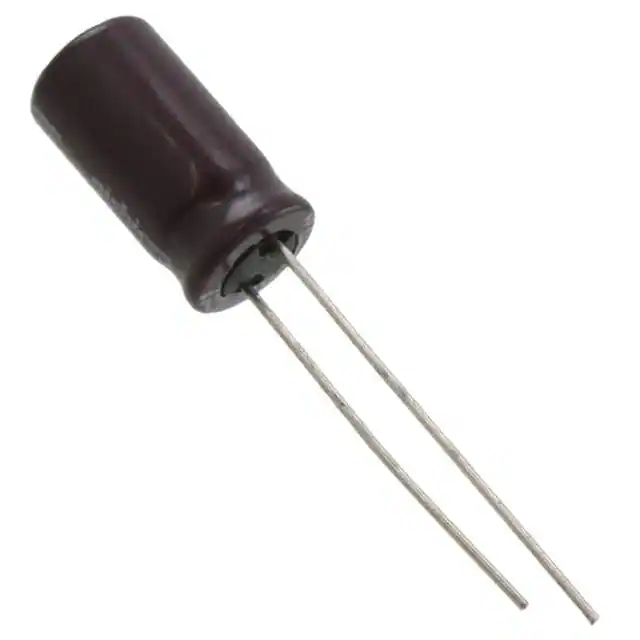

UPM0J471MPD1TDCAP ALUM 470UF 20% 6.3V RADIAL |
2,583 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 470 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | 140 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UVZ2V4R7MPDCAP ALUM 4.7UF 20% 350V RADIAL |
6,466 | - |
|
Техническая |
Bulk | UVZ | Not For New Designs | 4.7 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

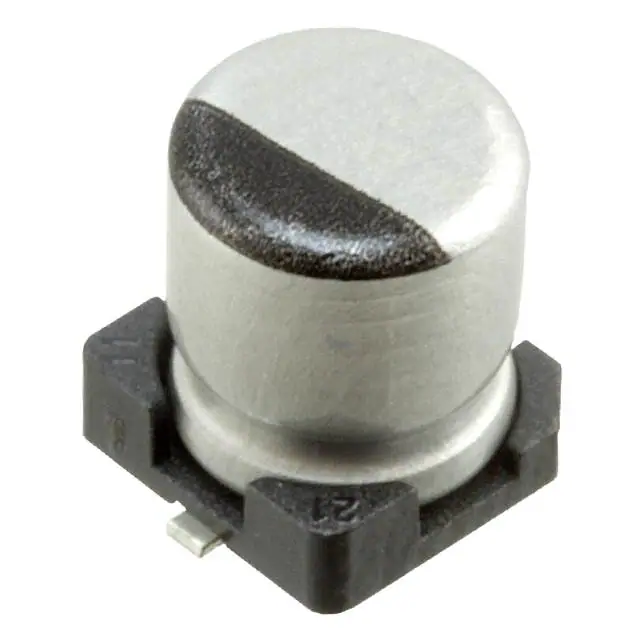

UCD1K4R7MCL1GSCAP ALUM 4.7UF 20% 80V SMD |
2,000 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 4.7 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 20 mA @ 120 Hz | 40 mA @ 100 kHz | 3 Ohms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCL1C220MCL6GSCAP ALUM 22UF 20% 16V SMD |
19,014 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 850 mOhms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UPM1K180MED1TDCAP ALUM 18UF 20% 80V RADIAL |
2,000 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 18 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 78 mA @ 120 Hz | 150 mA @ 10 kHz | 1 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|

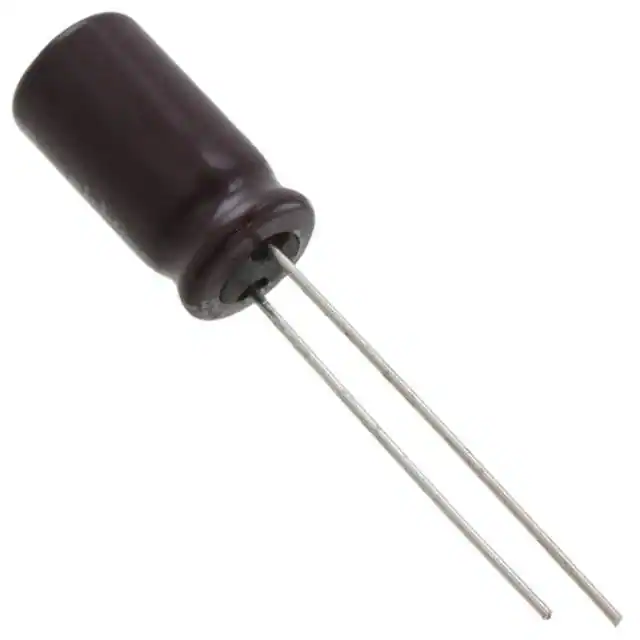

UPJ1A391MPD1TDCAP ALUM 390UF 20% 10V RADIAL |
3,141 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 390 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | - | 220 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
|
UPJ1C271MPD1TDCAP ALUM 270UF 20% 16V RADIAL |
2,220 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 270 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | - | 220 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
UKA1V330MDD1TDCAP ALUM 33UF 20% 35V RADIAL |
2,323 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UKA | Not For New Designs | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 75 mA @ 120 Hz | 150 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

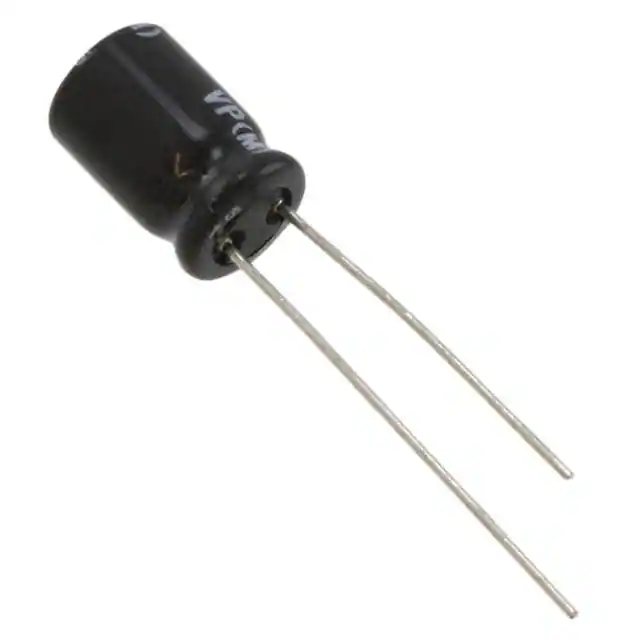

UVP1H220MPD1TACAP ALUM 22UF 20% 50V RADIAL |
6,758 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UVP | Not For New Designs | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 89 mA @ 120 Hz | 178 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UFG0J222MHM1TOCAP ALUM 2200UF 20% 6.3V RADIAL |
5,033 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UFG | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 867 mA @ 120 Hz | 997.05 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UZS1V220MCL1GBCAP ALUM 22UF 20% 35V SMD |
6,400 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 46 mA @ 120 Hz | 69 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.181 (4.60mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UUQ1A330MCL1GBCAP ALUM 33UF 20% 10V SMD |
2,604 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UUQ | Active | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 35 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
UPM1E181MPD1TDCAP ALUM 180UF 20% 25V RADIAL |
2,793 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 180 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 550 mA @ 10 kHz | 140 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UCD1J4R7MCL1GSCAP ALUM 4.7UF 20% 63V SMD |
7,933 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 4.7 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 3 Ohms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCB1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
3,559 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCB | Active | 22 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UZS1H2R2MCL1GBCAP ALUM 2.2UF 20% 50V SMD |
2,055 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 13 mA @ 120 Hz | 19.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.181 (4.60mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UPS1E151MPD1TDCAP ALUM 150UF 20% 25V RADIAL |
2,173 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 150 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UCL1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
5,000 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
UCB1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
4,000 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UCB | Active | 10 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 37.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UPW0J821MPD6CAP ALUM 820UF 20% 6.3V RADIAL |
1,230 | - |
|
Техническая |
Bulk | UPW | Not For New Designs | 820 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 566.25 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
- Это поможет вам сэкономить время и затраты.
- Надежная упаковка для вашего товара.
- Быстрая и надежная доставка для экономии времени.
- Качественное послепродажное обслуживание.
