| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

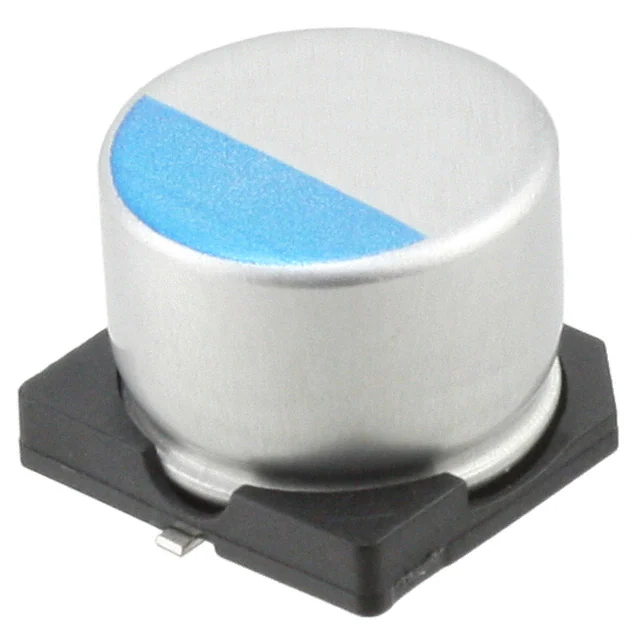

APXE100ARA471MJ80GCAP ALUM POLY 470UF 20% 10V SMD |
1,828 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXE | Active | Polymer | 470 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.303 (7.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

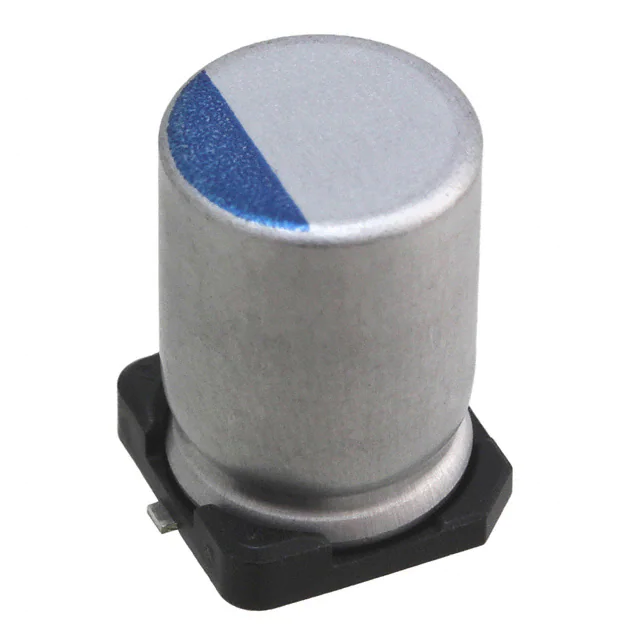

PCX1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD |
2,690 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCX | Active | Polymer | 220 µF | ±20% | 16 V | 27mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
35SEK47MCAP ALUM POLY 47UF 20% 35V T/H |
3,316 | - |
|
Техническая |
Bulk | OS-CON™, SEK | Active | Polymer | 47 µF | ±20% | 35 V | 27mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 46.5 mA @ 120 Hz | 930 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | - | Through Hole |
|

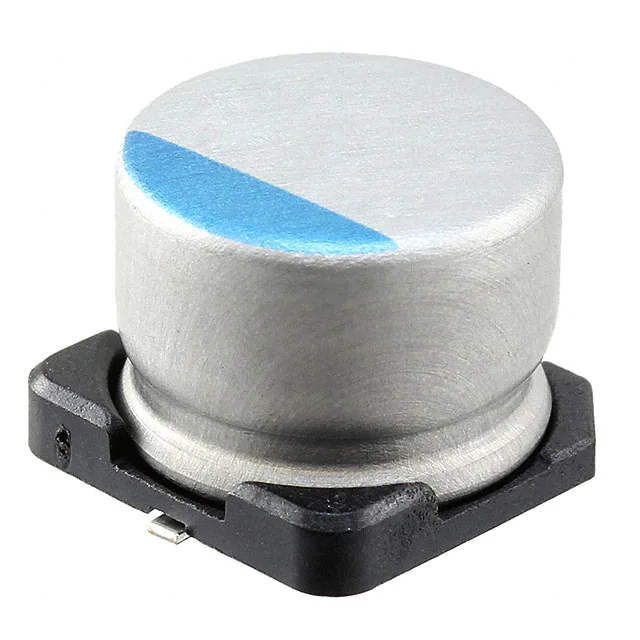

PCR1V151MCL1GSCAP ALUM POLY 150UF 20% 35V SMD |
5,375 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Active | Polymer | 150 µF | ±20% | 35 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
A759KS476M1JAAE068CAP ALUM POLY 47UF 20% 63V T/H |
5,916 | - |
|
Техническая |
Bulk | A759 | Active | Polymer | 47 µF | ±20% | 63 V | 68mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 81.5 mA @ 120 Hz | 1.63 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
PCV1K150MCL1GSCAP ALUM POLY 15UF 20% 80V SMD |
1,988 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCV | Active | Polymer | 15 µF | ±20% | 80 V | 39mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
35PZE270M10X9CAP ALUM POLY HYB 270UF 35V T/H |
8,285 | - |
|
Техническая |
Bulk | PZE | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.433 (11.00mm) | - | Through Hole |
|
|
A759MS157M1VAAE030CAP ALUM POLY 150UF 20% 35V T/H |
1,968 | - |
|
Техническая |
Bulk | A759 | Active | Polymer | 150 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 231.5 mA @ 120 Hz | 4.63 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
A759MS107M1HAAE031CAP ALUM POLY 100UF 20% 50V T/H |
2,736 | - |
|
Техническая |
Bulk | A759 | Active | Polymer | 100 µF | ±20% | 50 V | 31mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 141.5 mA @ 120 Hz | 2.83 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
APSC160ELL471MJB5SCAP ALUM POLY 470UF 20% 16V T/H |
1,026 | - |
|
Техническая |
Bulk | NPCAP™-PSC | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
875075661004CAP ALUM POLY 100UF 20% 35V SMD |
996 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | WCAP-PSLC | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PLX1V101MDL1TDCAP ALUM POLY 100UF 20% 35V T/H |
1,195 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | PLX | Active | Polymer | 100 µF | ±20% | 35 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|

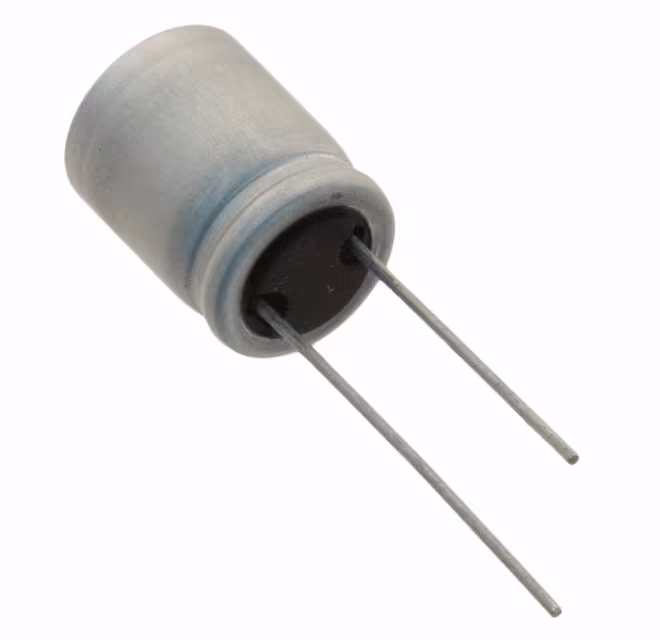

PLX1H470MDL1TDCAP ALUM POLY 47UF 20% 50V T/H |
6,293 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | PLX | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
PCR1C102MCL1GSCAP ALUM POLY 1000UF 20% 16V SMD |
5,180 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Active | Polymer | 1000 µF | ±20% | 16 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 4.3 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
227AVG035MFBJCAP ALUM POLY 220UF 20% 35V T/H |
6,878 | - |
|
Техническая |
Bulk | AVG | Active | Polymer | 220 µF | ±20% | 35 V | 26mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.532 (13.50mm) | - | Through Hole |
|
|
50SEK120MCAP ALUM POLY 120UF 20% 50V T/H |
5,908 | - |
|
Техническая |
Bulk | OS-CON™, SEK | Active | Polymer | 120 µF | ±20% | 50 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
PCV1K220MCL1GSCAP ALUM POLY 22UF 20% 80V SMD |
5,027 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCV | Active | Polymer | 22 µF | ±20% | 80 V | 38mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
870055975004CAP ALUM POLY 47UF 20% 100V T/H |
3,531 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | WCAP-PTHR | Active | Polymer | 47 µF | ±20% | 100 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
158AVG016MGBJCAP ALUM POLY 1500UF 20% 16V T/H |
4,862 | - |
|
Техническая |
Bulk | AVG | Active | Polymer | 1500 µF | ±20% | 16 V | 12mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.532 (13.50mm) | - | Through Hole |
|
PLV1K220MDL1TDCAP ALUM POLY 22UF 20% 80V T/H |
4,487 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PLV | Not For New Designs | Polymer | 22 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
