| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

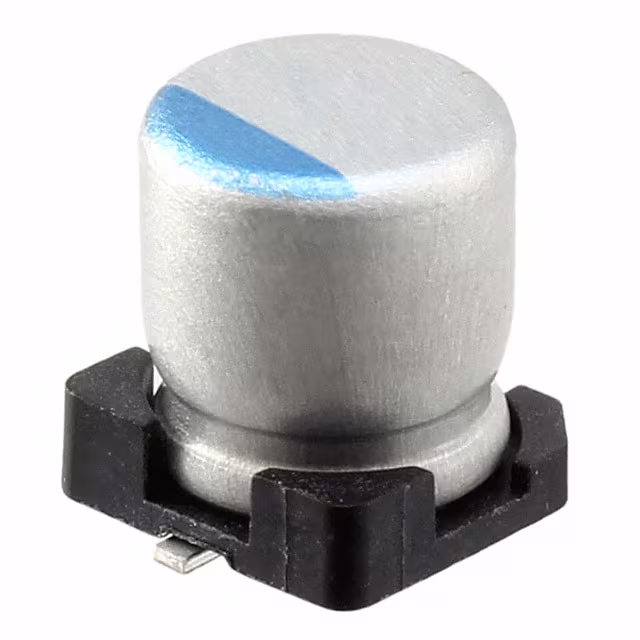

PCR1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD |
2,186 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 33 µF | ±20% | 25 V | 75mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
PCR1E560MCL1GSCAP ALUM POLY 56UF 20% 25V SMD |
2,032 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 56 µF | ±20% | 25 V | 43mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1H120MCL1GSCAP ALUM POLY 12UF 20% 50V SMD |
3,600 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 12 µF | ±20% | 50 V | 88mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCR1H220MCL1GSCAP ALUM POLY 22UF 20% 50V SMD |
3,903 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 22 µF | ±20% | 50 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1H390MCL4GSCAP ALUM POLY 39UF 20% 50V SMD |
2,716 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 39 µF | ±20% | 50 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1J120MCL1GSCAP ALUM POLY 12UF 20% 63V SMD |
3,871 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 12 µF | ±20% | 63 V | 51mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1J220MCL4GSCAP ALUM POLY 22UF 20% 63V SMD |
3,207 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 22 µF | ±20% | 63 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1J6R8MCL1GSCAP ALUM POLY 6.8UF 20% 63V SMD |
2,423 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 6.8 µF | ±20% | 63 V | 92mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCR1K120MCL1GSCAP ALUM POLY 12UF 20% 80V SMD |
2,494 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 12 µF | ±20% | 80 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1V270MCL1GSCAP ALUM POLY 27UF 20% 35V SMD |
3,202 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 27 µF | ±20% | 35 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

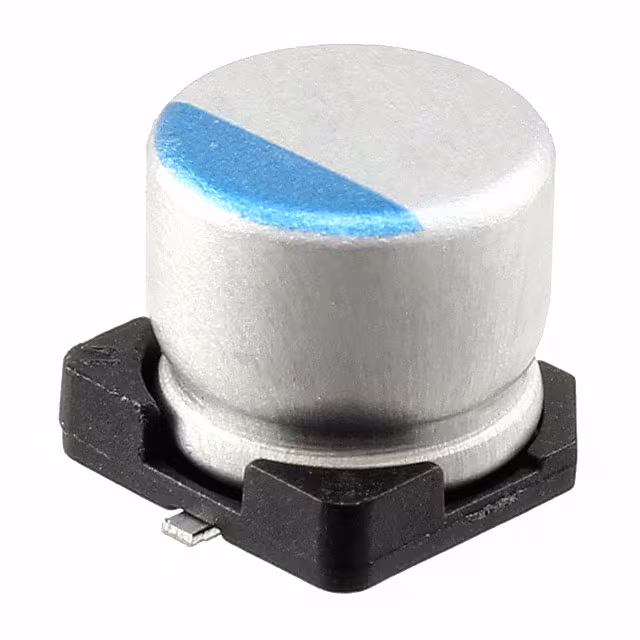

PCR1V470MCL1GSCAP ALUM POLY 47UF 20% 35V SMD |
2,528 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 47 µF | ±20% | 35 V | 48mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1V680MCL4GSCAP ALUM POLY 68UF 20% 35V SMD |
3,032 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 68 µF | ±20% | 35 V | 31mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.5 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
PCR2A120MCL1GSCAP ALUM POLY 12UF 20% 100V SMD |
3,576 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 12 µF | ±20% | 100 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCR2A180MCL1GSCAP ALUM POLY 18UF 20% 100V SMD |
2,785 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 18 µF | ±20% | 100 V | 42mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
PCR2A220MCL1GSCAP ALUM POLY 22UF 20% 100V SMD |
3,195 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 22 µF | ±20% | 100 V | 39mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PCR2A330MCL1GSCAP ALUM POLY 33UF 20% 100V SMD |
3,623 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 33 µF | ±20% | 100 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR2A5R6MCL1GSCAP ALUM POLY 5.6UF 20% 100V SMD |
2,529 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PCR | Obsolete | Polymer | 5.6 µF | ±20% | 100 V | 55mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

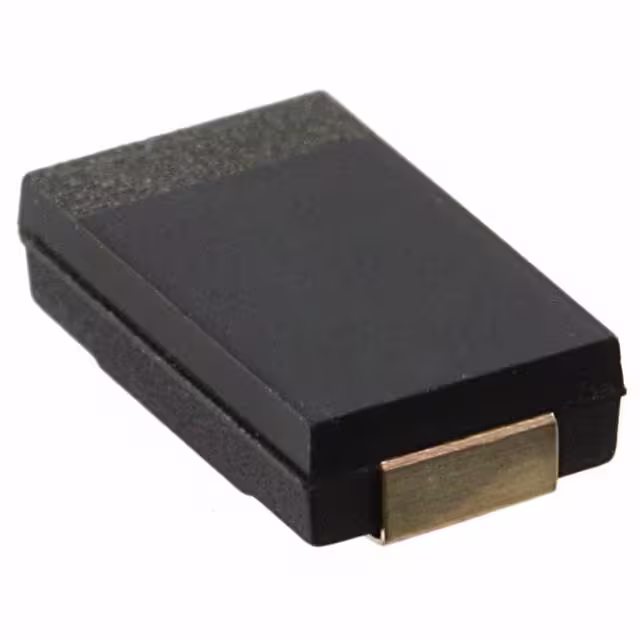

RUA1V120MLGCAP ALUM POLY 12UF 20% 35V SMD |
3,775 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FPCAP, UA | Obsolete | Polymer | 12 µF | ±20% | 35 V | 70mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.079 (2.00mm) | - | Surface Mount |
|

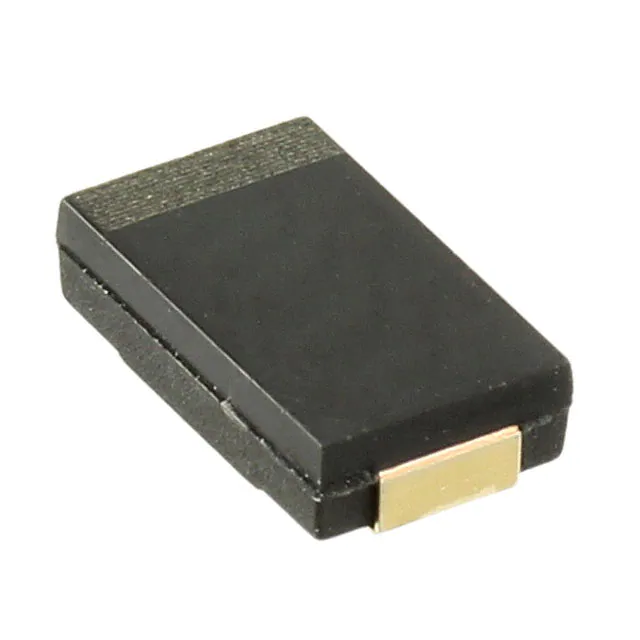

RUB0D221MLGCAP ALUM POLY 220UF 20% 2V SMD |
3,289 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FPCAP, UB | Obsolete | Polymer | 220 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.079 (2.00mm) | - | Surface Mount |
|
|
RUB1E150MLGCAP ALUM POLY 15UF 20% 25V SMD |
3,120 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FPCAP, UB | Obsolete | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.079 (2.00mm) | - | Surface Mount |
