| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUR420SF Rect, 200V, 4.00A, 25ns |
3,282 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 100pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 4A | -50°C ~ 175°C | 890 mV @ 4 A | |
|
|
MUR440SF Rect, 400V, 4.00A, 50ns |
3,157 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 50pF @ 4V, 1MHz | 75 ns | 5 µA @ 400 V | 400 V | 4A | -50°C ~ 175°C | 1.28 V @ 4 A | |
|

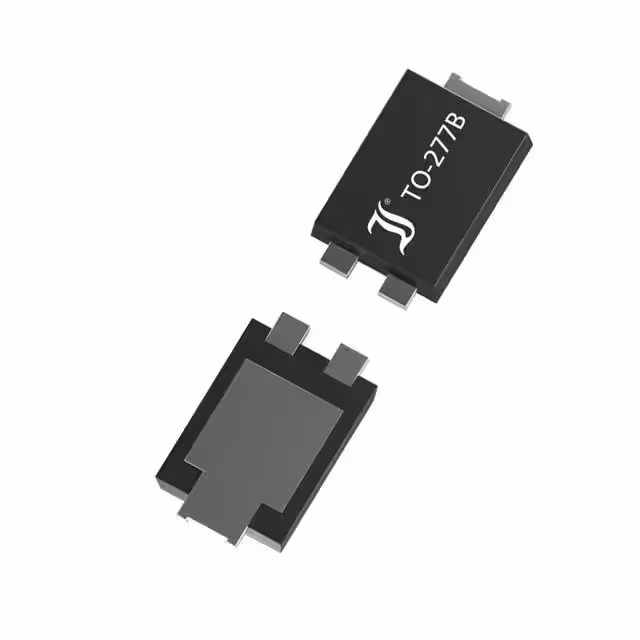

PPH10100SchottkyD, 100V, 10A |
2,895 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 100 V | 100 V | 10A | -50°C ~ 175°C | 680 mV @ 10 A | |
|
PPS1560SchottkyD, 60V, 15A |
3,888 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 60 V | 60 V | 15A | -50°C ~ 150°C | 690 mV @ 15 A | |
|
SM5405-CTCUT-TAPE VERSION. STANDARD RECO |
2,721 | - |
|
Техническая |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 500 V | 500 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|
ES3JSMBSF Rect, 600V, 3.000A, 30ns |
3,368 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
SBT1060SchottkyD, 60V, 10A |
2,242 | - |
|
Техническая |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 60 V | 60 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
P2500MST Rect, 1000V, 25A |
3,087 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
SBT1050SchottkyD, 50V, 10A |
3,335 | - |
|
Техническая |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 50 V | 50 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
FX20K150Fast Rect.,150V, 20.00A, 300ns |
3,110 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 150 V | 150 V | 20A | -50°C ~ 175°C | 940 mV @ 20 A | |
|
|
SBT1090SchottkyD, 90V, 10A |
2,358 | - |
|
Техническая |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 90 V | 90 V | 10A | -50°C ~ 150°C | 850 mV @ 10 A | |
|
|
FX2000FFast Rect., 300V, 20.00A, 200ns |
3,697 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 300 V | 300 V | 20A | -50°C ~ 150°C | 940 mV @ 20 A | |
|
SK1840D2SchottkyD, 40V, 18A |
2,717 | - |
|
Техническая |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 18A | -50°C ~ 150°C | 580 mV @ 18 A | |
|
S2G-AQ-CTCUT-TAPE VERSION. STANDARD RECO |
3,419 | - |
|
Техническая |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
15SQ045-3GSchottkyD, 45V, 15A |
2,127 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 45 V | 45 V | 15A | -50°C ~ 150°C | 550 mV @ 15 A | |
|

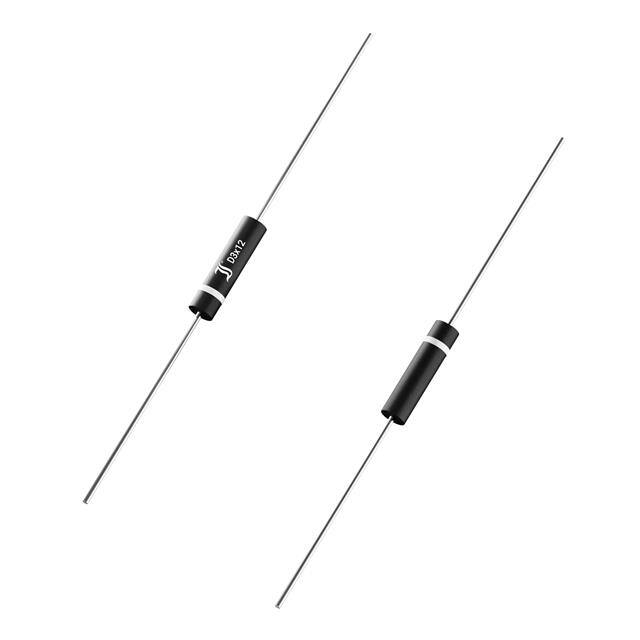

DD1400HV Rect, 14000V, 0.02A, 150ns |
2,197 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 150 ns | 5 µA @ 14000 V | 14000 V | 20mA | -50°C ~ 150°C | 40 V @ 10 mA | |
|
SBX2045-3GSchottky, 45V, 20A, 0.53V, 290A |
3,535 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 45 V | 45 V | 20A | -50°C ~ 150°C | 530 mV @ 20 A | |
|
|
SM2000-CTCUT-TAPE VERSION. STANDARD RECO |
2,906 | - |
|
Техническая |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 2000 V | 2000 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|

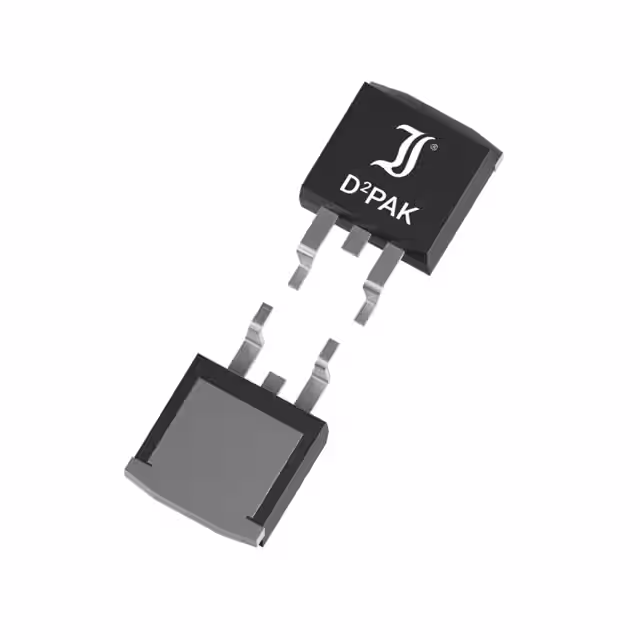

SK1845D2-3GSchottky, 45V, 18A, 0.54V, 280A |
3,451 | - |
|
Техническая |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 18A | -50°C ~ 150°C | 535 mV @ 18 A | |
|
|
SK1045D2-3GSchottkyD, 45V, 10A |
3,930 | - |
|
Техническая |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 120 µA @ 45 V | 45 V | 10A | -50°C ~ 150°C | 500 mV @ 10 A |
