| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB068LAM-40TRDIODE SCHOTTKY 40V 2A PMDTM |
1,618 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 µA @ 40 V | 40 V | 2A | 150°C (Max) | 690 mV @ 2 A | |
|
RR1VWM6STRRR1VWM6S IS RECTIFYING DIODE FOR |
1,459 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 10 µA @ 600 V | 600 V | 1A | 175°C (Max) | 1.2 V @ 1 A | |
|
|
RB088LAM-30TFTRAUTOMOTIVE SCHOTTKY BARRIER DIOD |
1,251 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2.5 µA @ 30 V | 30 V | 5A | 150°C (Max) | - |
|
RSX201VAM30TRDIODE SCHOTTKY 30V 1A TUMD2M |
4,068 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 30 V | 30 V | 1A | 150°C (Max) | 420 mV @ 1 A | |
|
RBS2LAM40ATRRBS2LAM40A IS SUPER LOW VF< |
2,984 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 20 V | 20 V | 2A | 125°C | 480 mV @ 2 A | |
|
BAS16HYFHT116HIGH SPEED SWITCHING, 80V, 215MA |
2,947 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 215mA (DC) | 150°C | 1.25 V @ 150 mA |
|
|
BAS16HYT116HIGH SPEED SWITCHING, 80V, 215MA |
2,900 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 215mA (DC) | 150°C | 1.25 V @ 150 mA | |
|
RBR3MM60ATFTRDIODE (RECTIFIER FRD) 60V-VR 3A- |
2,794 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 3A | 150°C (Max) | 660 mV @ 3 A |
|
RFN2L4SDDTE25FAST RECOVERY DIODE (AEC-Q101 QU |
1,255 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 1 µA @ 600 V | 600 V | 1.5A | 150°C | 1.55 V @ 1.5 A |
|
|
RF071LAM4STFTRRF071LAM4STF IS THE HIGH RELIABI |
2,910 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 10 µA @ 400 V | 400 V | 1A | 150°C (Max) | 1.25 V @ 700 mA |
|
RB450FT106DIODE SCHOTTKY 40V 100MA UMD3 |
2,836 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 1 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 450 mV @ 10 mA | |
|
RB531VM-40FHTE-17RB531VM-40FH IS SUPER LOW VF HIG |
2,327 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 100mA | 150°C (Max) | 610 mV @ 100 mA |
.jpg)
|
RB160QS-40T18RRASMID SERIES, ULTRA SMALL PACKA |
28,403 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 20 µA @ 40 V | 40 V | 1.5A | 150°C | 650 mV @ 1.5 A |
|
RFNL5BGE6STLSUPER FAST RECOVERY DIODE |
1,957 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 10 µA @ 600 V | 600 V | 5A | 150°C (Max) | 1.3 V @ 5 A | |
|
RFV5BM6STLRFV5BM6S IS SUPER FAST RECOVERY |
2,453 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 40 ns | 10 µA @ 600 V | 600 V | 5A | 150°C | 2.8 V @ 5 A | |
|

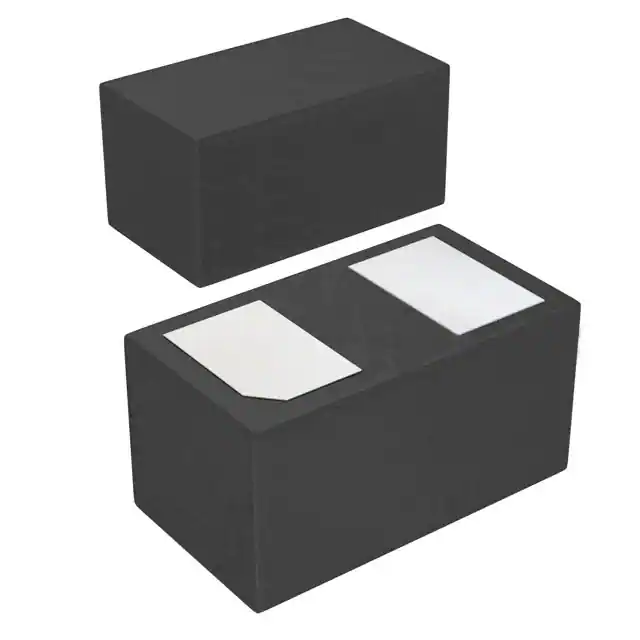

DB2L33500LDIODE SCHOTTKY 30V 100MA 0201 |
139,500 | - |
|
Tape & Reel (TR),Cut Tape (CT) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
RFN5BM6SFHTLSUPER FAST RECOVERY DIODE (CORRE |
2,449 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 600 V | 600 V | 5A | 150°C (Max) | 1.55 V @ 5 A |
|
RFN3BM6STLDIODE GEN PURP 600V 3A TO252 |
1,843 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 10 µA @ 600 V | 600 V | 3A | 150°C (Max) | 1.55 V @ 3 A | |
|
|
RF305BM6STLDIODE GEN PURP 600V 3A TO252 |
1,824 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 10 µA @ 600 V | 600 V | 3A | 150°C (Max) | 1.7 V @ 3 A | |
|
|
RB063L-30TE25DIODE SCHOTTKY 30V 2A PMDS |
1,353 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 30 V | 30 V | 2A | 125°C (Max) | 395 mV @ 2 A |
