+86 15815556552Диодный выпрямитель
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

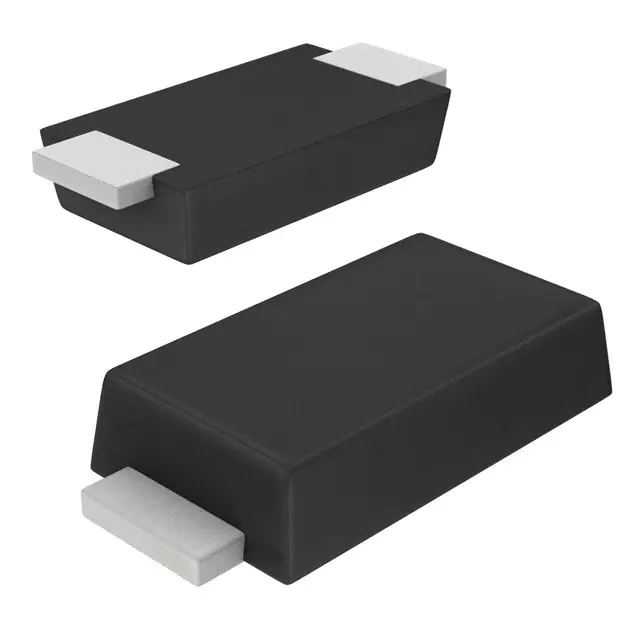

US1Q-TP1AULTRAFASTRECOVERRECTIFIERSMA |
19,300 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 75 ns | 5 µA @ 1200 V | 1200 V | 1A | -50°C ~ 150°C | 1.9 V @ 1 A | |
|
SK56AFL-TPDIODE SCHOTTKY 60V 5A DO221AC |
21,300 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 210pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 5A | -55°C ~ 125°C | 700 mV @ 5 A | |
|
|
SK510AFL-TPDIODE SCHOTTKY 100V 5A DO221AC |
32,365 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 5A | -55°C ~ 125°C | 850 mV @ 5 A | |
|
1N5822-TPDIODE SCHOTTKY 40V 3A DO201AD |
11,791 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 200pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 525 mV @ 3 A | |
|
1N4007-TPDIODE GEN PURP 1KV 1A DO41 |
193,509 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
1N4004-TPDIODE GEN PURP 400V 1A DO41 |
1,741 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
BAS16WX-TPDIODE GEN PURP 75V 100MA SOD323 |
566,576 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 6 ns | 1 µA @ 75 V | 75 V | 100mA | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|
GS1G-LTPDIODE GEN PURP 400V 1A DO214AC |
272,550 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
SD103AWS-TPDIODE SCHOTTKY 40V 350MA SOD323 |
307,268 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 30 V | 40 V | 350mA | -65°C ~ 125°C | 600 mV @ 200 mA | |
|
|
GS1MDIODE GEN PURP 1KV 1A DO214AC |
3,791 | - |
|
Техническая |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
S1ZZDIODE GEN PURP 2KV 1A DO214AA |
3,641 | - |
|
Техническая |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 2.5 µs | 10 µA @ 2000 V | 2000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
ES1J-LTPDIODE GEN PURP 600V 1A DO214AC |
109,009 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.7 V @ 1 A | |
|
BAV102-TPDIODE GP 150V 200MA MINI MELF |
2,108 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 150 V | 150 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
BAV103-TPDIODE GP 200V 200MA MINI MELF |
22,500 | - |
|
Техническая |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|

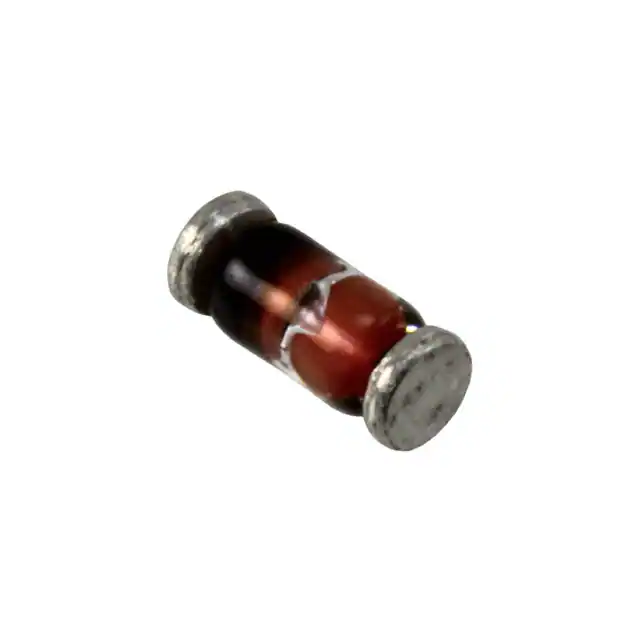

DL4150-TPDIODE GP 50V 200MA MINI MELF |
2,044 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 2.5pF @ 0V, 1MHz | 6 ns | 100 nA @ 50 V | 50 V | 200mA | 175°C (Max) | 1 V @ 200 mA | |
|
|
DL4151-TPDIODE GP 75V 150MA MINI MELF |
3,419 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | 2 ns | 50 nA @ 50 V | 75 V | 150mA | 175°C (Max) | 1 V @ 50 mA | |
|
|
DL4448-TPDIODE GP 75V 150MA MINI MELF |
2,561 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | 4 ns | 5 µA @ 75 V | 75 V | 150mA | 200°C (Max) | 1 V @ 100 mA | |
|
|
MBRX02520-TPDIODE SCHOTTKY 20V 250MA SOD323 |
3,894 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 250mA | -55°C ~ 150°C | 450 mV @ 250 mA | |
|
|
MBRX02530-TPDIODE SCHOTTKY 30V 250MA SOD323 |
2,939 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 250mA | -55°C ~ 150°C | 550 mV @ 250 mA | |
|
|
MBRX02540-TPDIODE SCHOTTKY 40V 250MA SOD323 |
2,788 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 250mA | -55°C ~ 150°C | 550 mV @ 250 mA |
