| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRS09(TE85L)DIODE SCHOTTKY 30V 1.5A SFLAT |
3,582 | - |
|
Техническая |
Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 50 µA @ 30 V | 30 V | 1.5A | -40°C ~ 150°C | 460 mV @ 1.5 A | |
|
|
CRS11(TE85L)DIODE SCHOTTKY 30V 1A SFLAT |
3,643 | - |
|
Техническая |
Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1.5 mA @ 30 V | 30 V | 1A | -40°C ~ 125°C | 360 mV @ 1 A | |
|
1SS389,H3FDIODE SCHOTTKY 40V 100MA ESC |
2,821 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 25pF @ 0V, 1MHz | - | 5 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 600 mV @ 50 mA | |
|

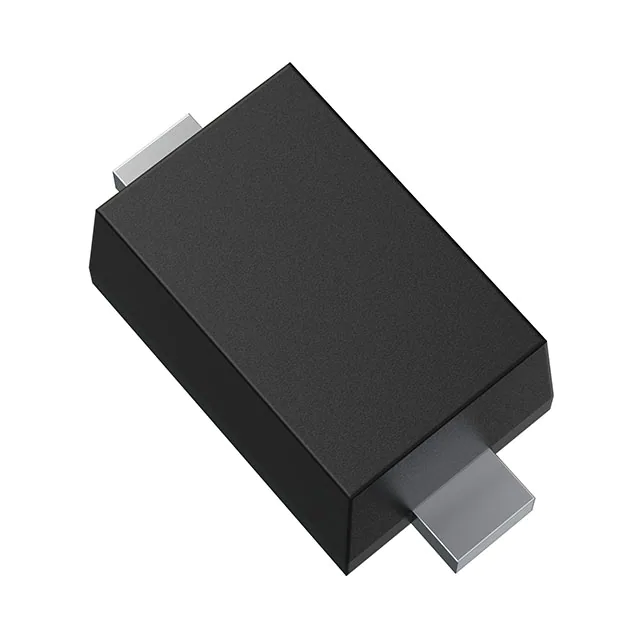

BAS516,L3FDIODE GEN PURP 100V 250MA ESC |
3,621 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 0.35pF @ 0V, 1MHz | 3 ns | 200 nA @ 80 V | 100 V | 250mA | 150°C (Max) | 1.25 V @ 150 mA | |
|
1SS385FV,L3FSMALL-SIGNAL SCHOTTKY BARRIER DI |
7,560 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 20pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
CUS357,H3FSMALL SIGNAL SCHOTTKY BARRIER DI |
2,685 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 11pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 100mA | 125°C (Max) | 600 mV @ 100 mA | |
|
1SS370TE85LFDIODE GEN PURP 200V 100MA SC70 |
2,911 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 60 ns | 1 µA @ 200 V | 200 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|
CTS521,L3FDIODE SCHOTTKY 30V 200MA CST2 |
10,008 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 0V, 1MHz | - | 30 µA @ 30 V | 30 V | 200mA | 125°C (Max) | 500 mV @ 200 mA | |
|
|
CUS520,H3FDIODE SCHOTTKY 30V 200MA |
2,268 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 17pF @ 0V, 1MHz | - | 5 µA @ 30 V | 30 V | 200mA | 125°C (Max) | 280 mV @ 10 mA | |
|
TRS6E65C,S1AQDIODE SCHOTTKY 650V 6A TO220-2L |
2,562 | - |
|
Техническая |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 35pF @ 650V, 1MHz | 0 ns | 90 µA @ 650 V | 650 V | 6A (DC) | 175°C (Max) | 1.7 V @ 6 A | |
|
TRS8E65C,S1QDIODE SCHOTTKY 650V 8A TO220-2L |
2,008 | - |
|
Техническая |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 44pF @ 650V, 1MHz | 0 ns | 90 µA @ 650 V | 650 V | 8A (DC) | 175°C (Max) | 1.7 V @ 8 A | |
|

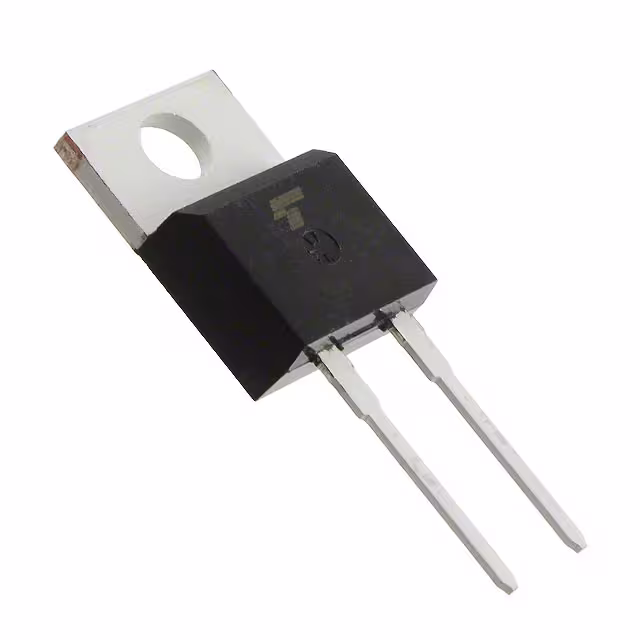

TRS12E65C,S1QDIODE SCHOTTKY 650V 12A TO220-2L |
3,084 | - |
|
Техническая |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 65pF @ 650V, 1MHz | 0 ns | 90 µA @ 170 V | 650 V | 12A (DC) | 175°C (Max) | 1.7 V @ 12 A | |
|
|
1SS405,H3FDIODE SCHOTTKY 20V 50MA ESC |
11,993 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 3.9pF @ 0V, 1MHz | - | 500 nA @ 20 V | 20 V | 50mA | 125°C (Max) | 550 mV @ 50 mA | |
|
CUS551V30,H3FDIODE SCHOTTKY 30V 500MA USC |
2,793 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 30 V | 500mA | 125°C (Max) | 470 mV @ 500 mA | |
|
1SS417CT,L3FDIODE SCHOTTKY 40V 100MA FSC |
7,177 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 15pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 100mA | 125°C (Max) | 620 mV @ 100 mA | |
|
|
CUS05F30,H3FDIODE SCHOTTKY 30V 500MA USC |
8,949 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 500mA | - | 450 mV @ 500 mA | |
|
|
CUS15S30,H3FDIODE SCHOTTKY 30V 1.5A |
1,264 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 0V, 1MHz | - | 500 µA @ 30 V | 30 V | 1.5A | 125°C (Max) | 400 mV @ 1 A | |
|
CUHS15F40,H3FSMALL-SIGNAL SCHOTTKY BARRIER DI |
3,226 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 200 µA @ 40 V | 40 V | 1.5A | 150°C (Max) | 510 mV @ 1.5 A | |
|
CCS15S40,L3FDIODE SCHOTTKY 40V 1.5A CST2C |
12,453 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 200 µA @ 40 V | 40 V | 1.5A | 125°C (Max) | 550 mV @ 1.5 A | |
|
|
CCS15S30,L3FDIODE SCHOTTKY 20V 1.5A CST2C |
2,156 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 0V, 1MHz | - | 500 µA @ 30 V | 20 V | 1.5A | 125°C (Max) | 400 mV @ 1 A |
