Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

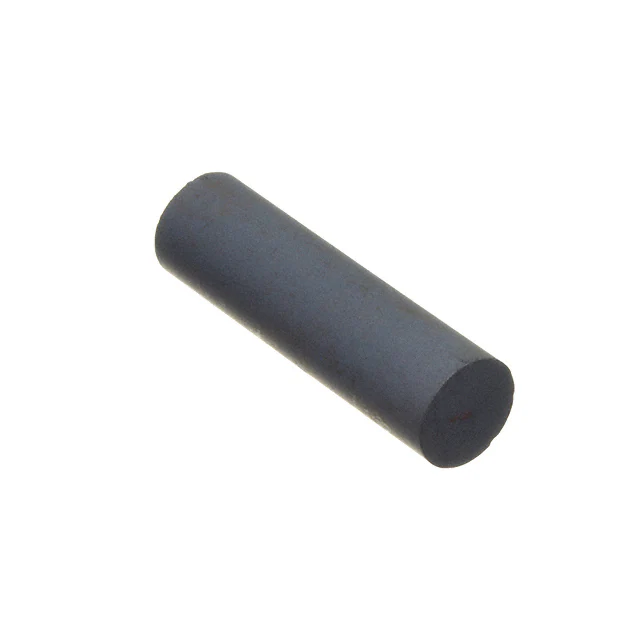

4061287011 61 ROD Fair-Rite Products Corp.	3,757	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	61	0.250 (6.35mm)	-	-	Ungapped	29	125	-	25	7.07	-	-	Uncoated	-
3067990871 67 ROD Fair-Rite Products Corp.	3,638	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	67	0.118 (3.00mm)	-	-	Ungapped	20	40	-	-	7.07	-	-	Uncoated	-
3078990881 78 ROD Fair-Rite Products Corp.	3,677	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	78	0.157 (4.00mm)	-	-	Ungapped	31	2300	-	-	12.6	-	-	Uncoated	-
5967000201 67 TOROID Fair-Rite Products Corp.	2,097	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	67	0.375 (9.53mm)	-	-	Ungapped	-	40	-	20.7	7.2	-	150	Uncoated	0.125 (3.18mm)

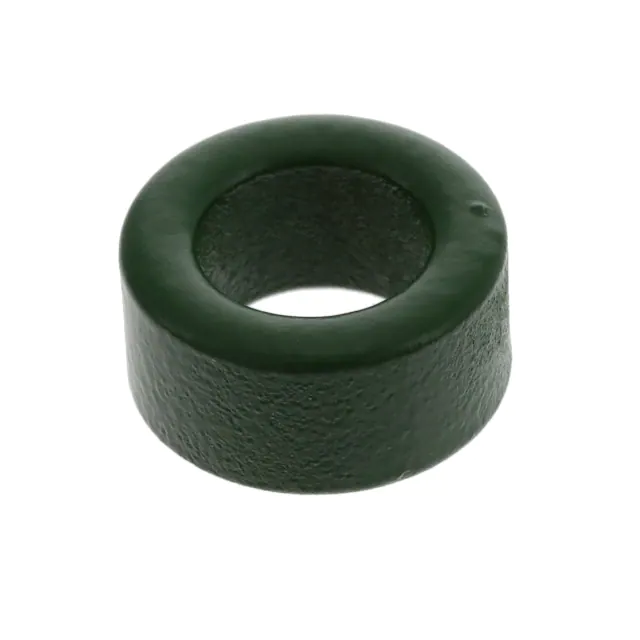

5961001121 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	900	-	запрос цен	Техническая	Box	-	Active	Toroid	-	61	0.530 (13.45mm)	75 nH	±25%	Ungapped	-	125	2.08	31.2	15	-	470	Plastic	0.280 (7.11mm)
5967000301 67 TOROID Fair-Rite Products Corp.	2,868	-	запрос цен	Техническая	Box	-	Active	Toroid	-	67	0.500 (12.70mm)	-	-	Ungapped	-	40	-	29.5	12.9	-	380	Uncoated	0.188 (4.78mm)

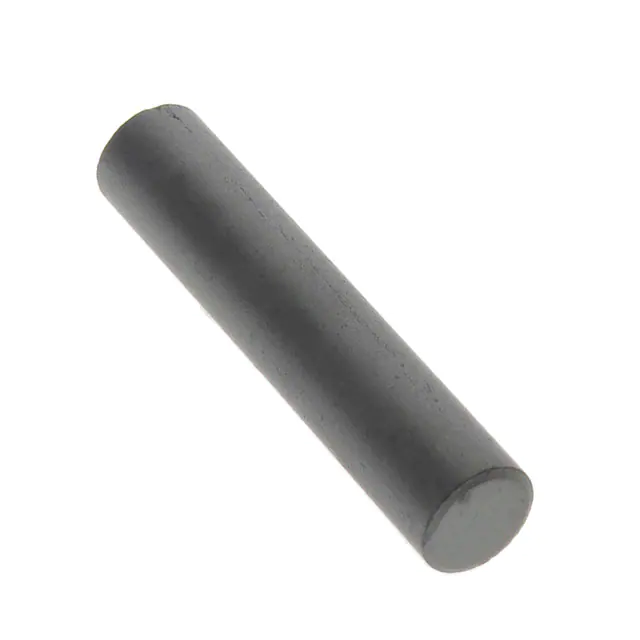

4077296011 77 SOLID ROD Fair-Rite Products Corp.	2,781	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	77	0.250 (6.35mm)	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
5968000301 68 TOROID Fair-Rite Products Corp.	2,363	-	запрос цен	Техническая	Box	-	Active	Toroid	-	68	0.500 (12.70mm)	-	-	Ungapped	-	16	-	29.5	12.9	-	380	Uncoated	0.188 (4.78mm)
3078990901 78 ROD Fair-Rite Products Corp.	3,317	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	78	0.250 (6.35mm)	-	-	Ungapped	26	2300	-	-	28.3	-	-	Uncoated	-
5975004901 75 TOROID Fair-Rite Products Corp.	3,818	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	75	0.630 (16.00mm)	-	±20%	Ungapped	-	5000	-	38.5	19.9	-	770	Uncoated	0.250 (6.35mm)
5943001001 43 TOROID Fair-Rite Products Corp.	3,583	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	43	1.142 (29.00mm)	-	±20%	Ungapped	-	800	-	73	37	-	2700	Uncoated	0.295 (7.50mm)

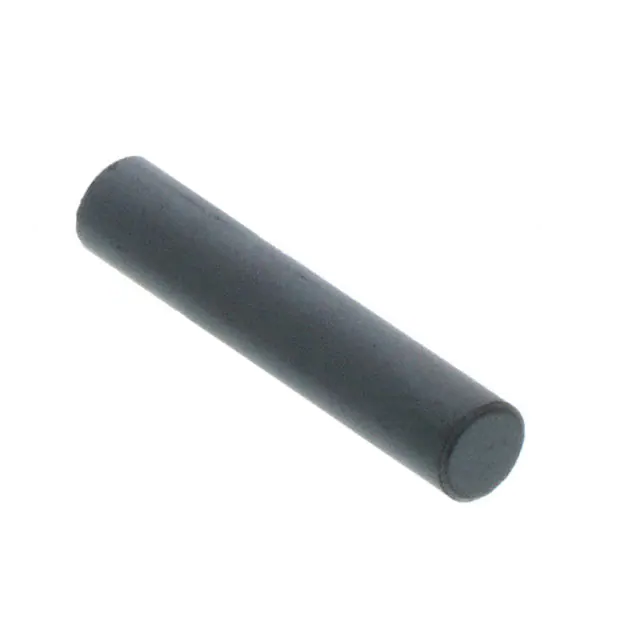

4061378111 61 ROD Fair-Rite Products Corp.	3,641	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	61	0.374 (9.50mm)	-	-	Ungapped	-	125	-	-	-	-	-	Uncoated	-
5961000621 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	3,232	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	61	0.860 (21.84mm)	75 nH	±25%	Ungapped	-	125	213	52	24.3	-	1260	Plastic	0.280 (7.11mm)
5977001201 77 TOROID Fair-Rite Products Corp.	2,961	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	77	1.142 (29.00mm)	-	±25%	Ungapped	-	2000	-	73	68	-	5000	Uncoated	0.545 (13.84mm)
4078375111 78 ROD Fair-Rite Products Corp.	3,171	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	78	0.372 (9.45mm)	-	-	Ungapped	-	2300	-	-	-	-	-	Uncoated	-

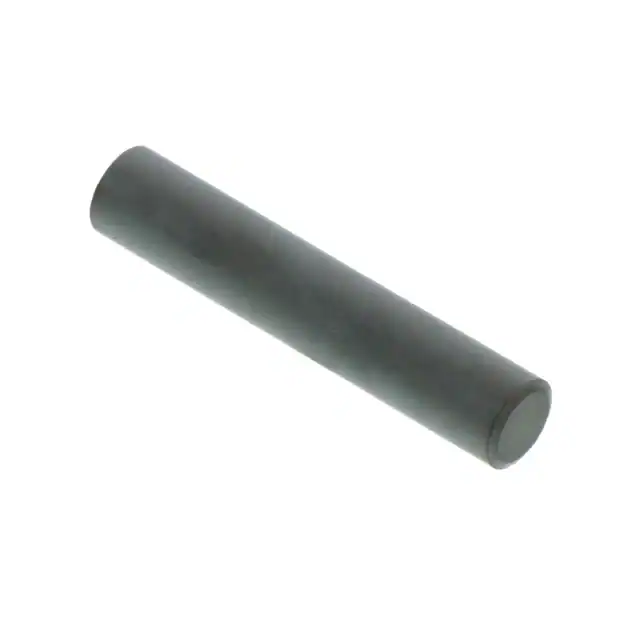

4077375211 77 SOLID ROD Fair-Rite Products Corp.	3,206	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	77	0.372 (9.45mm)	-	-	Ungapped	29	2000	-	25	7.07	-	-	Uncoated	-

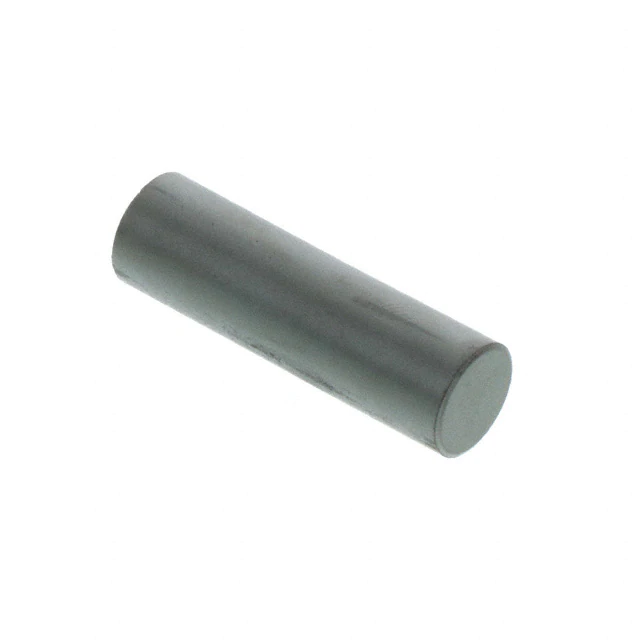

4077484611 77 ROD Fair-Rite Products Corp.	2,247	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	77	0.484 (12.30mm)	-	-	Ungapped	29	2000	-	25	7.07	-	-	Uncoated	-
5978007601 78 TOROID Fair-Rite Products Corp.	2,796	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	78	0.870 (22.10mm)	-	±25%	Ungapped	-	2300	-	54	52	-	2830	Uncoated	0.500 (12.70mm)
3061990911 61 ROD Fair-Rite Products Corp.	3,571	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	61	0.315 (8.00mm)	-	-	Ungapped	18	125	-	-	50.3	-	-	Uncoated	-

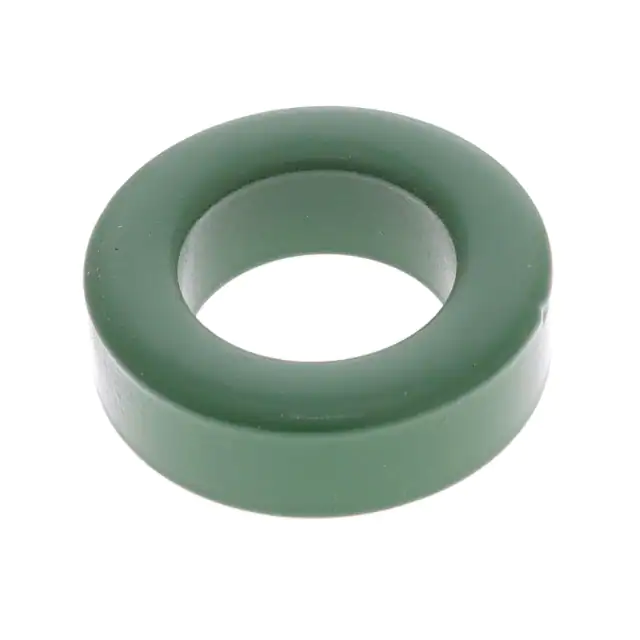

5961001721 61 TOROID COATED Fair-Rite Products Corp.	290	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	61	1.299 (33.00mm)	120 nH	±25%	Ungapped	-	125	1.2947	76.4	59	-	4512	Plastic	0.406 (10.30mm)
