Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

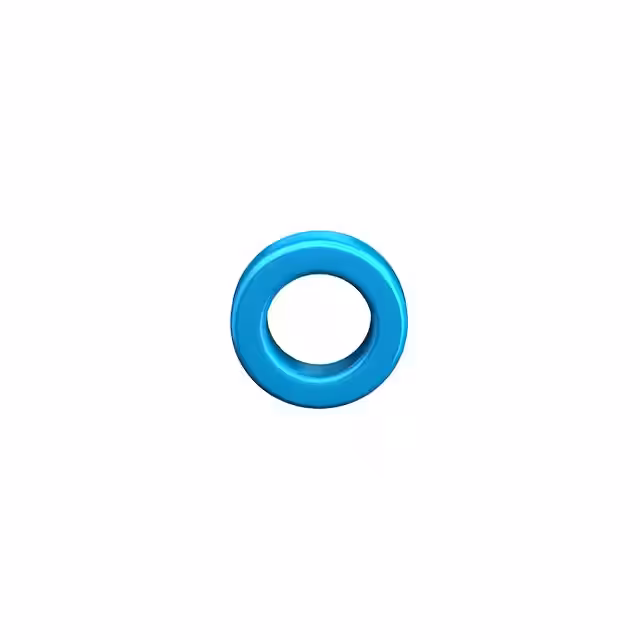

B64290L0044X065 FERRITE CORE TOROID 2.4UH T65 EPCOS - TDK Electronics	2,393	-	запрос цен	Техническая	Box	TX12.5/7.5/5	Active	Toroid	-	T65	0.535 (13.60mm)	2.4 µH	±30%	Ungapped	-	4700	2.46	30.09	12.23	-	368	Epoxy	0.234 (5.95mm)
B62110A1001X022 FERRITE CORES EPCOS - TDK Electronics	3,660	-	запрос цен		Box	TUB1.81/0.8/2.7	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B64290L0044X072 FERRITE CORE EPCOS - TDK Electronics	2,612	-	запрос цен		Box	TX12.5/7.5/5	Active	Toroid	-	N72	-	-	-	Gapped	-	2500	-	-	-	-	-	Epoxy	-
B64290P0732X038 FERRITE CORE TOROID 2.83UH T38 EPCOS - TDK Electronics	3,493	-	запрос цен	Техническая	Box	TC3.94/1.78/1.78	Active	Toroid	-	T38	0.156 (3.96mm)	2.83 µH	±30%	Ungapped	-	10000	4.44	8.1	1.82	-	14.8	Parylene	0.071 (1.80mm)
B66305U0100K165 FERRITE CORE EPCOS - TDK Electronics	3,448	-	запрос цен		Box	E13/7/4	Active	E	E 13 x 7 x 4	T65	-	-	-	Gapped	-	5200	2.39	29.6	12.4	12.2	367	Uncoated	0.256 (6.50mm)
B64290L0644X065 FERRITE CORE TOROID 2.3UH T65 EPCOS - TDK Electronics	3,743	-	запрос цен	Техническая	Box	TX13.3/8.3/5	Active	Toroid	-	T65	0.567 (14.40mm)	2.3 µH	±30%	Ungapped	-	4900	2.67	32.7	12.27	-	401	Epoxy	0.234 (5.95mm)
B64290A0681X046 FERRITE CORE EPCOS - TDK Electronics	2,078	-	запрос цен	Техническая	Box	T9.53/4.75/2	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B62152A0008X022 FERRITE CORE EPCOS - TDK Electronics	3,587	-	запрос цен		Box	MHB2-2.5/3.6/2.1	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B64290P0723X046 FERRITE CORE TOROID 3.89UH T46 EPCOS - TDK Electronics	2,862	-	запрос цен	Техническая	Box	TC3.94/2.24/2.3	Active	Toroid	-	T46	0.156 (3.96mm)	3.89 µH	±30%	Ungapped	-	15000	4.85	9.21	1.9	-	17.5	Parylene	0.091 (2.30mm)
B65531W0000R030 FERRITE CORE P 3.5UH N30 2PCS EPCOS - TDK Electronics	3,633	-	запрос цен	Техническая	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N30	0.445 (11.30mm)	3.5 µH	-20%, +30%	Ungapped	2560	4300	0.92	16.3	17.7	14.1	289	Uncoated	0.130 (3.30mm)
B64290P0630X065 FERRITE CORE EPCOS - TDK Electronics	2,677	-	запрос цен	Техническая	Box	TC6.3/3.8/4	Active	Toroid	-	T65	-	-	-	Gapped	-	5200	-	-	-	-	-	Parylene	-
B64290A0783X010 FERRITE CORE TOROID 450NH K10 EPCOS - TDK Electronics	3,811	-	запрос цен	Техническая	Box	T10/6/7	Active	Toroid	R 10 x 6 x 7	K10	0.394 (10.00mm)	450 nH	±25%	Ungapped	-	630	1.76	24.07	13.7	-	330	Uncoated	0.275 (7.00mm)
B64290P0767X038 FERRITE CORE EPCOS - TDK Electronics	3,698	-	запрос цен	Техническая	Box	TC6.3/3.8/3.18	Active	Toroid	-	T38	-	-	-	Gapped	-	10000	-	-	-	-	-	Parylene	-
B64290L0742X830 FERRITE CORE TOROID 2.6UH N30 EPCOS - TDK Electronics	3,955	-	запрос цен	Техническая	Box	TX13/7.9/6.4	Active	Toroid	-	N30	0.535 (13.60mm)	2.6 µH	±25%	Ungapped	-	4300	2.08	31.17	14.96	-	466	Epoxy	0.281 (7.15mm)
B66379G0000X135 FERRITE CORE EPCOS - TDK Electronics	3,872	-	запрос цен	Техническая	Box	-	Not For New Designs	E	E 19 x 8 x 5	T35	-	-	-	-	-	6000	1.76	39.6	22.5	22.1	891	Uncoated	0.315 (8.00mm)
B64290A0037X830 FERRITE CORE TOROID 1.09UH N30 EPCOS - TDK Electronics	3,277	-	запрос цен	Техническая	Box	T6.3/3.8/2.5	Active	Toroid	R 6.3 x 3.8 x 2.5	N30	0.248 (6.30mm)	1.09 µH	±25%	Ungapped	-	4300	4.97	15.21	3.06	-	46.5	Uncoated	0.098 (2.50mm)
B64290A0036X001 FERRITE CORE EPCOS - TDK Electronics	2,652	-	запрос цен	Техническая	Box	T4/2.4/1.6	Active	Toroid	R 4 x 2.4 x 1.6	K1	0.157 (4.00mm)	-	±25%	Ungapped	-	-	-	-	-	-	-	Uncoated	0.063 (1.60mm)
B64290L0062X830 FERRITE CORES EPCOS - TDK Electronics	2,054	-	запрос цен	Техническая	Tape & Reel (TR)	TX9.5/4.8/3.2	Active	Toroid	R 9.53 × 4.75 × 3.17	N30	-	1.9 µH	±25%	Ungapped	-	4300	2.85	20.72	7.28	-	151	Epoxy	-

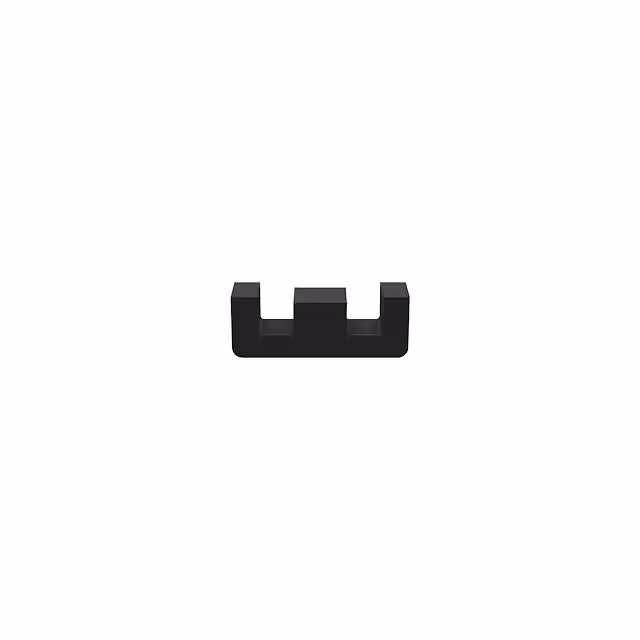

B66219G0000X141 FERRITE CORE EPCOS - TDK Electronics	2,316	-	запрос цен	Техническая	Box	E14/8/4	Active	E	-	N41	-	1.05 µH	-20%, +30%	Ungapped	1830	2800	2.19	33.9	15.5	13.1	525	Uncoated	0.307 (7.80mm)
B66434G0100X187 FERRITE CORE EPCOS - TDK Electronics	3,417	-	запрос цен	Техническая	Box	-	Not For New Designs	EV	EV 15 x 9 x 7	N87	-	-	-	-	-	2200	1.4	38.7	27.7	25.8	1070	Uncoated	0.354 (9.00mm)
