Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65819P0250J087 FERRITE CORE EPCOS - TDK Electronics	2,791	-	запрос цен	Техническая	Box	RM7/LP	Active	RM	RM 7 LP	N87	-	-	-	Gapped	-	2200	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
B65819P0275J087 FERRITE CORE EPCOS - TDK Electronics	3,518	-	запрос цен	Техническая	Box	RM7/LP	Active	RM	RM 7 LP	N87	-	-	-	Gapped	-	2200	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
B65819P0315J087 FERRITE CORE EPCOS - TDK Electronics	3,214	-	запрос цен	Техническая	Box	RM7/LP	Active	RM	RM 7 LP	N87	-	-	-	Gapped	-	2200	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
B65819P0060A087 FERRITE CORE EPCOS - TDK Electronics	3,517	-	запрос цен	Техническая	Box	RM7/LP	Active	RM	RM 7 LP	N87	-	-	-	Gapped	-	2200	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
B65809A0000R035 FERRITE CORE EPCOS - TDK Electronics	3,970	-	запрос цен		Box	RM6/R	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65807P0000R097 FERRITE CORE EPCOS - TDK Electronics	2,372	-	запрос цен	Техническая	Box	RM6	Active	RM	RM 6 LP	N97	-	-	-	-	-	2300	0.58	21.8	37.5	31.2	820	Uncoated	0.177 (4.50mm)
B66363G0100X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	2,641	-	запрос цен	Техническая	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B66363G0200X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,350	-	запрос цен	Техническая	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B66363G2000X127 FERRITE CORE EPCOS - TDK Electronics	2,827	-	запрос цен	Техническая	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	2000	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B65807J0000R045 FERRITE CORE RM 3.5UH N45 2PCS EPCOS - TDK Electronics	2,084	-	запрос цен	Техническая	Box	RM6	Active	RM	RM 6	N45	-	3.5 µH	-20%, +30%	Ungapped	2180	3800	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65807N0200A048 FERRITE CORE EPCOS - TDK Electronics	3,939	-	запрос цен	Техническая	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	2300	0.78	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B65807N0500A048 FERRITE CORE EPCOS - TDK Electronics	3,444	-	запрос цен	Техническая	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	2300	0.78	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B65807P0000R049 FERRITE CORE RM 2.2UH N49 2PCS EPCOS - TDK Electronics	2,068	-	запрос цен	Техническая	Box	RM6	Active	RM	RM 6 LP	N49	-	2.2 µH	-20%, +30%	Ungapped	1020	1500	0.58	21.8	37.5	31.2	820	Uncoated	0.177 (4.50mm)

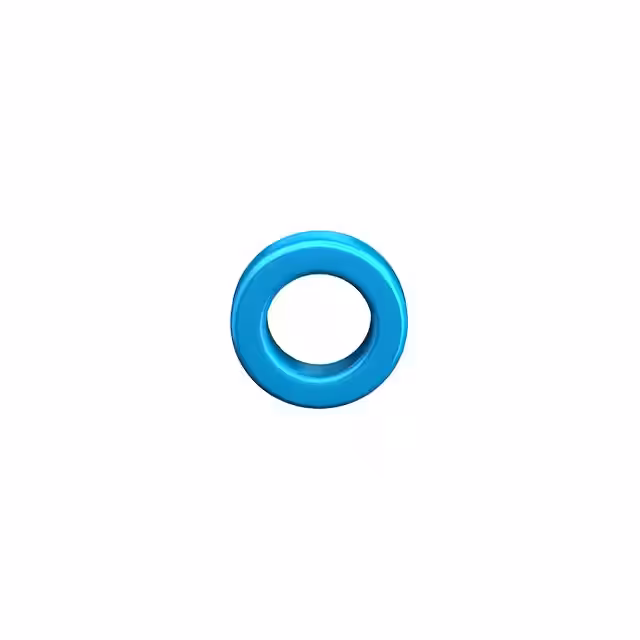

B64290L0710X035 FERRITE CORE EPCOS - TDK Electronics	2,536	-	запрос цен	Техническая	Box	TX20/10/15	Active	Toroid	-	T35	-	10.8 µH	±25%	Gapped	-	6000	-	-	-	-	-	Epoxy	-

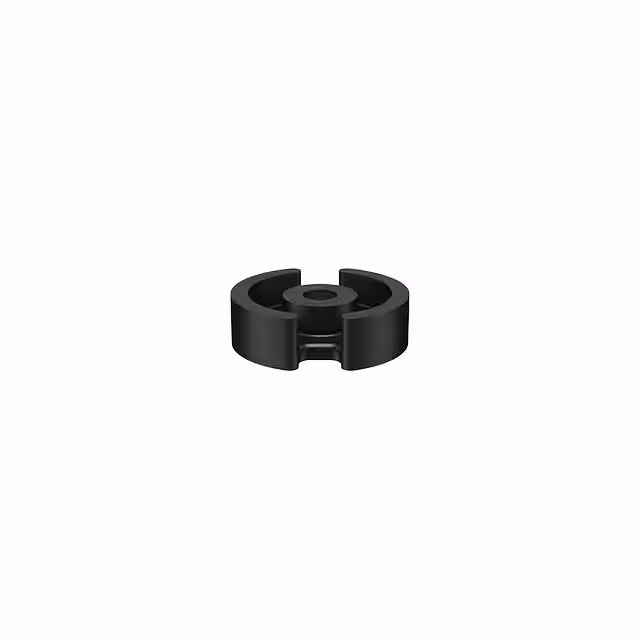

B65517T0100A048 FERRITE CORE P 100NH N48 2PCS EPCOS - TDK Electronics	2,772	-	запрос цен	Техническая	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	100 nH	±3%	Gapped	100	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65517T0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	3,129	-	запрос цен	Техническая	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	160 nH	±3%	Gapped	159	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B64290A0672X037 FERRITE CORE EPCOS - TDK Electronics	3,951	-	запрос цен	Техническая	Box	T26/14.5/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B65807J1000K045 FERRITE CORE EPCOS - TDK Electronics	2,634	-	запрос цен	Техническая	Box	RM6	Active	RM	RM 6	N45	-	-	-	Gapped	-	3800	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65511A0000Y065 FERRITE CORE P 2PCS EPCOS - TDK Electronics	3,482	-	запрос цен	Техническая	Box	P7/4	Active	P (Pot Core)	P 7 x 4	-	0.289 (7.35mm)	-	-	Ungapped	-	-	1.43	10	7	-	70	Uncoated	0.083 (2.10mm)
B65805N0020A033 FERRITE CORE EPCOS - TDK Electronics	2,884	-	запрос цен	Техническая	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
