+86 15815556552Постоянный индуктор
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402DC-5N4XGRWFIXED IND 5.4NH 1.8A 57MOHM SMD |
3,639 | - |
|
Техническая |
0402 (1005 Metric) | Strip | 0402DC | Active | Drum Core, Wirewound | Ceramic | 5.4 nH | ±2% | 1.8 A | - | Unshielded | 57mOhm Max | 68 @ 900MHz | 11.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
0402DC-3N5XGRWFIXED IND 3.5NH 2.05A 46MOHM SMD |
2,532 | - |
|
Техническая |
0402 (1005 Metric) | Strip | 0402DC | Active | Drum Core, Wirewound | Ceramic | 3.5 nH | ±2% | 2.05 A | - | Unshielded | 46mOhm Max | 67 @ 900MHz | 13.71GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
0402DC-43NXGRWFIXED IND 43NH 640MA 430MOHM SMD |
997 | - |
|
Техническая |
0402 (1005 Metric) | Strip | 0402DC | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±2% | 640 mA | - | Unshielded | 430mOhm Max | 55 @ 900MHz | 3.82GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
0402DC-6N6XGRWFIXED IND 6.6NH 1.65A 63MOHM SMD |
3,743 | - |
|
Техническая |
0402 (1005 Metric) | Strip | 0402DC | Active | Drum Core, Wirewound | Ceramic | 6.6 nH | ±2% | 1.65 A | - | Unshielded | 63mOhm Max | 68 @ 900MHz | 10.65GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
0402DC-11NXGRWFIXED IND 11NH 1.45A 78.2MOHM SM |
3,121 | - |
|
Техническая |
0402 (1005 Metric) | Strip | 0402DC | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±2% | 1.45 A | - | Unshielded | 78.2mOhm Max | 68 @ 900MHz | 5.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
XGL4030-471MECFIXED IND 470NH 21.2A 3.9MOHM SM |
2,090 | - |
|
Техническая |
Nonstandard | Strip | XGL4030 | Active | - | - | 470 nH | ±20% | 21.2 A | 14.2A | Shielded | 3.9mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|

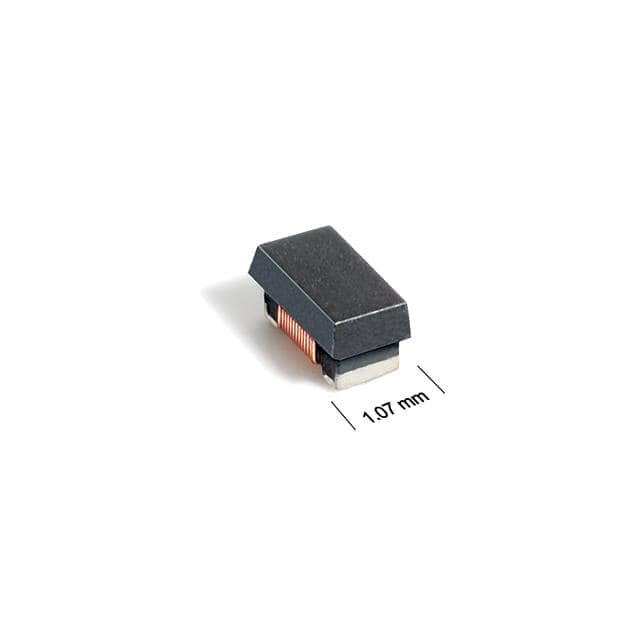

PFL1609-561MEWPOWER INDUCTOR, SHIELDED, 20% TO |
1,603 | - |
|
Техническая |
Nonstandard | Strip | PFL1609 | Active | - | Metal Composite | 560 nH | - | 1.4 A | 1.1A | Shielded | 130mOhm Max | - | 600MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - |
|

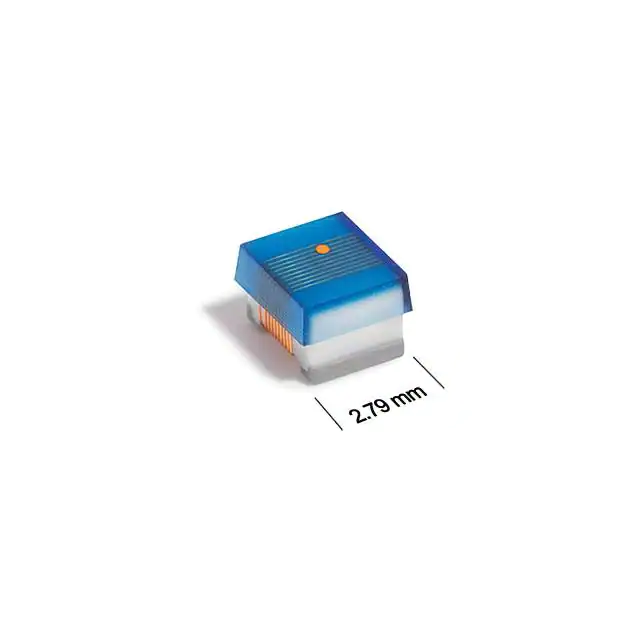

1008CS-390XJRCRF INDUCTOR, CERAMIC CORE, 5% TO |
3,006 | - |
|
Техническая |
1008 (2520 Metric) | Strip | 1008CS | Active | - | Ceramic | 39 nH | - | 1 A | - | Unshielded | 150mOhm Max | - | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - |
|
|
1008CS-562XJRCRF INDUCTOR, CERAMIC CORE, 5% TO |
2,176 | - |
|
Техническая |
1008 (2520 Metric) | Strip | 1008CS | Active | - | Ceramic | 5.6 µH | - | 240 mA | - | Unshielded | 4Ohm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - |
|
|
1008CS-821XJRCRF INDUCTOR, CERAMIC CORE, 5% TO |
1,227 | - |
|
Техническая |
1008 (2520 Metric) | Strip | 1008CS | Active | - | Ceramic | 820 nH | - | 400 mA | - | Unshielded | 1.61Ohm Max | - | 350MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - |
|
|
1008CS-680XJRCRF INDUCTOR, CERAMIC CORE, 5% TO |
896 | - |
|
Техническая |
1008 (2520 Metric) | Strip | 1008CS | Active | - | Ceramic | 68 nH | - | 1 A | - | Unshielded | 200mOhm Max | - | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - |
|

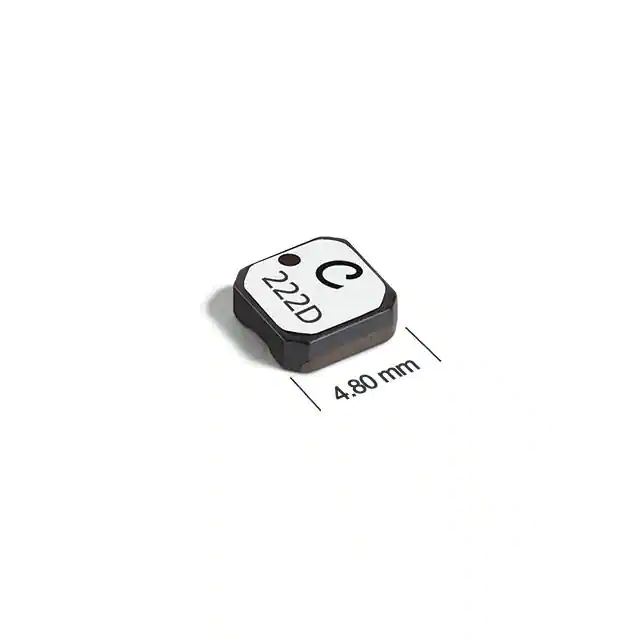

LPS5015-474MRCPOWER INDUCTOR, SHIELDED, 20% TO |
2,389 | - |
|
Техническая |
Nonstandard | Strip | LPS5015 | Active | - | Ferrite | 470 µH | - | 210 mA | 130mA | Shielded | 7.5Ohm Max | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
0603LS-781XJRCRF INDUCTOR, FERRITE CORE, 5% TO |
2,102 | - |
|
Техническая |
0603 (1608 Metric) | Strip | 0603LS | Active | - | Ceramic, Ferrite | 780 nH | - | 390 mA | - | Unshielded | 830mOhm Max | - | 460MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | - |
|

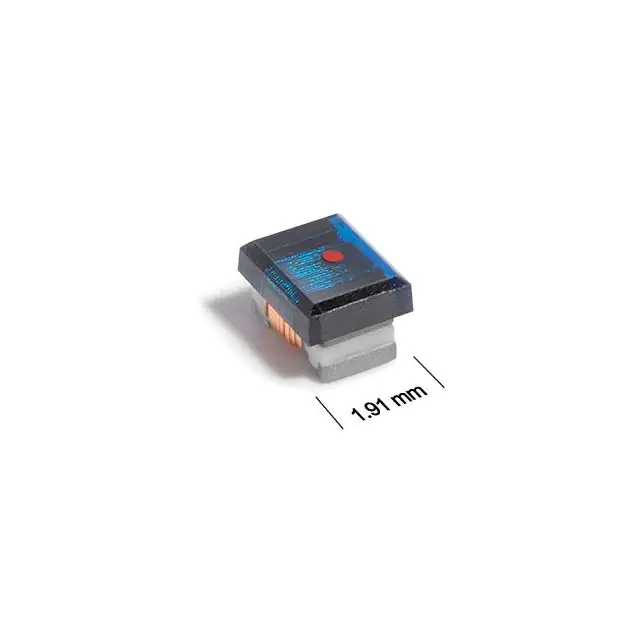

0805LS-111XJRCRF INDUCTOR, FERRITE CORE, 5% TO |
3,889 | - |
|
Техническая |
0805 (2012 Metric) | Strip | 0805LS | Active | - | Ceramic, Ferrite | 110 nH | - | - | - | Unshielded | 50mOhm Max | - | 1.2GHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | - |
|
|
0603LS-153XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
10,082 | - |
|
Техническая |
0603 (1608 Metric) | Strip | 0603LS | Active | - | Ceramic, Ferrite | 15 µH | - | 170 mA | - | Unshielded | 7.1Ohm Max | - | 23MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | - |
|

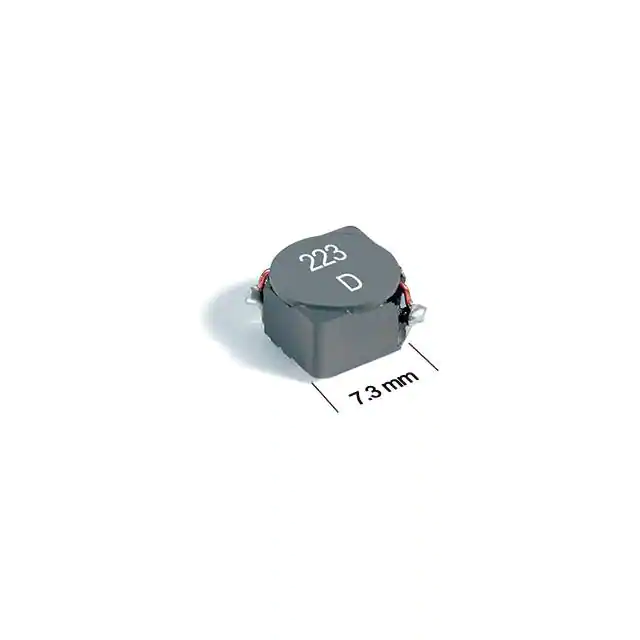

MSS7341-223MLDPOWER INDUCTOR, SHIELDED, 20/30% |
3,705 | - |
|
Техническая |
Nonstandard | Strip | MSS7341 | Active | - | Ferrite | 22 µH | - | 2.35 A | 1.42A | Shielded | 82mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
MSS7341-333MLDPOWER INDUCTOR, SHIELDED, 20/30% |
3,734 | - |
|
Техническая |
Nonstandard | Strip | MSS7341 | Active | - | Ferrite | 33 µH | - | 1.95 A | 1.16A | Shielded | 124mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
XGL3520-102MECFIXED INDUCTOR 1UH SMD |
2,497 | - |
|
Nonstandard | Strip | XGL3520 | Active | Molded | - | 1 µH | ±20% | 7.5 A | 5.4A | Shielded | 14.8mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | |
|
XGL5030-222MECPOWER INDUCTOR, SHIELDED, COMPOS |
5,541 | - |
|
Техническая |
Nonstandard | Strip | XGL5030 | Active | - | Metal Composite | 2.2 µH | - | 12.9 A | 9.4A | Shielded | 10.6mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
XGL5050-332MECPOWER INDUCTOR, SHIELDED, COMPOS |
2,648 | - |
|
Техническая |
Nonstandard | Strip | XGL5050 | Active | - | Metal Composite | 3.3 µH | - | 11.3 A | 8.6A | Shielded | 11.5mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
