+86 15815556552Постоянный индуктор
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW100505-56NJ3FIXED IND 56NH 200MA 970MOHM SMD |
2,125 | - |
|
Техническая |
0402 (1005 Metric) | Tape & Reel (TR) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 200 mA | - | Unshielded | 970mOhm | 22 @ 200MHz | 1.76GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-18NJ3FIXED IND 18NH 420MA 230MOHM SMD |
3,723 | - |
|
Техническая |
0402 (1005 Metric) | Tape & Reel (TR) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 420 mA | - | Unshielded | 230mOhm | 25 @ 250MHz | 3.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-33NJ3FIXED IND 33NH 400MA 350MOHM SMD |
2,239 | - |
|
Техническая |
0402 (1005 Metric) | Tape & Reel (TR) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 400 mA | - | Unshielded | 350mOhm | 24 @ 250MHz | 2.35GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-15NJ3FIXED IND 15NH 560MA 172MOHM SMD |
2,025 | - |
|
Техническая |
0402 (1005 Metric) | Tape & Reel (TR) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 560 mA | - | Unshielded | 172mOhm | 26 @ 250MHz | 3.28GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-39NJ3FIXED IND 39NH 320MA 550MOHM SMD |
3,411 | - |
|
Техническая |
0402 (1005 Metric) | Tape & Reel (TR) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 320 mA | - | Unshielded | 550mOhm | 25 @ 250MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|

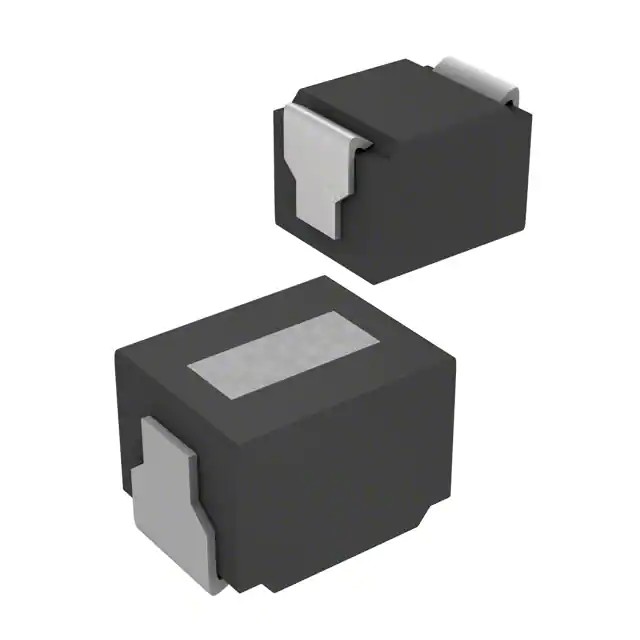

CM252016-4R7KLFIXED IND 4.7UH 125MA 1.6OHM SMD |
3,995 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM252016 | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 125 mA | - | Unshielded | 1.6Ohm Max | 25 @ 7.96MHz | 55MHz | - | -20°C ~ 100°C | 7.96 MHz | - | Surface Mount | - |
|

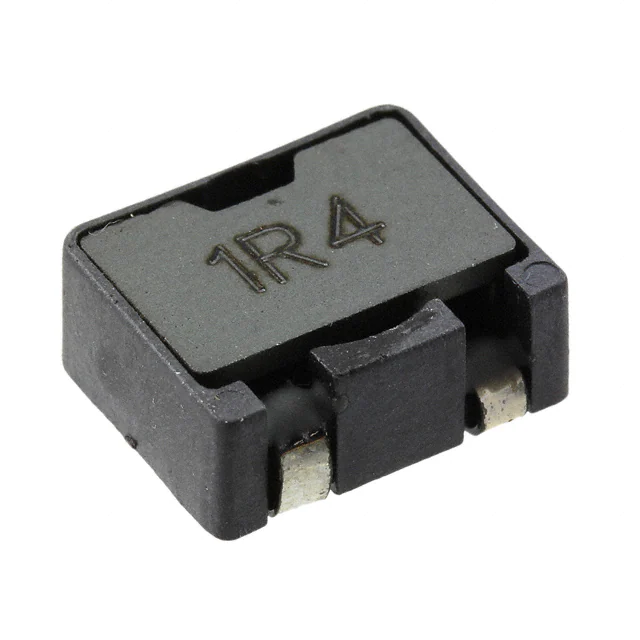

SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD |
3,307 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1045 | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 13 A | 14A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRP1055-5R7MFIXED IND 5.7UH 7.6A 13.2MOHM SM |
2,549 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1055 | Obsolete | Drum Core, Wirewound | Ferrite | 5.7 µH | ±20% | 7.6 A | 7A | Shielded | 13.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRP1205-1R0YFIXED IND 1UH 14A 3.4 MOHM SMD |
2,826 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1205 | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 14 A | 22A | Shielded | 3.4mOhm Max | - | 75MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|

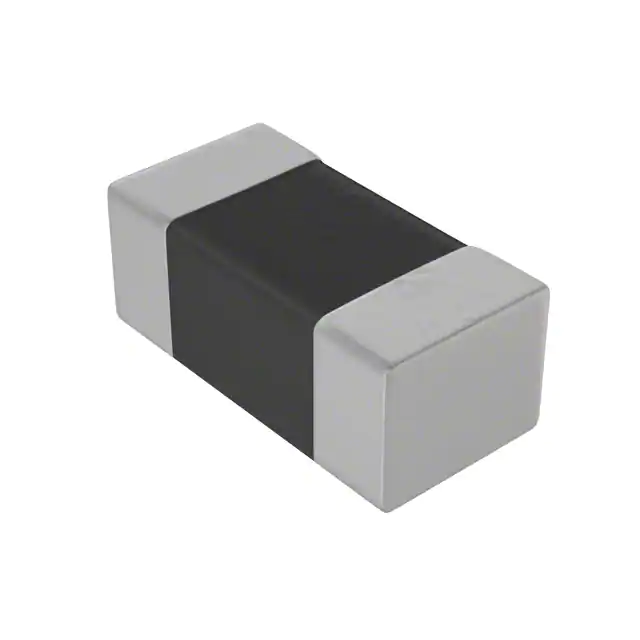

CS321613-1R5KFIXED IND 1.5UH 50MA 300MOHM SMD |
2,482 | - |
|
Техническая |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CS321613 | Obsolete | Multilayer | Ferrite | 1.5 µH | ±10% | 50 mA | - | Shielded | 300mOhm Max | 80 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) |
|
|
CS321613-R47KFIXED IND 470NH 200MA 300MOHM SM |
3,934 | - |
|
Техническая |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CS321613 | Obsolete | Multilayer | Ferrite | 470 nH | ±10% | 200 mA | - | Shielded | 300mOhm Max | 50 @ 25MHz | 125MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 (3216 Metric) |
|
|

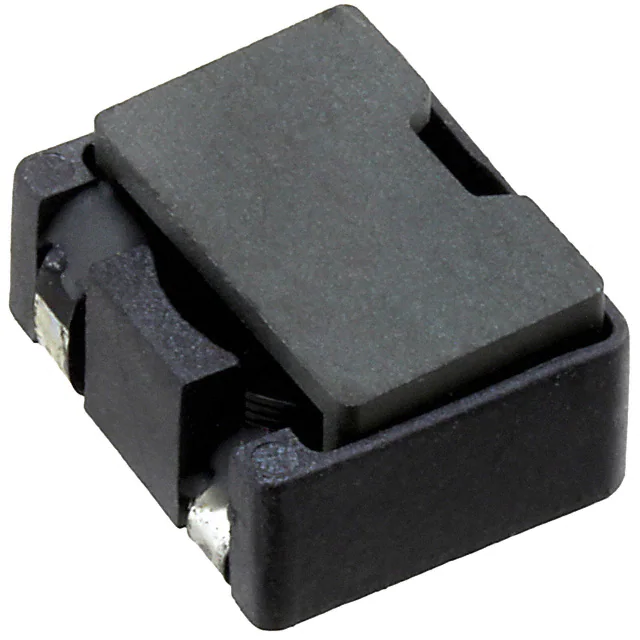

SRP1055-3R2MFIXED IND 3.2UH 11A 7.2 MOHM SMD |
2,897 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1055 | Obsolete | Drum Core, Wirewound | Ferrite | 3.2 µH | ±20% | 11 A | 9A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|

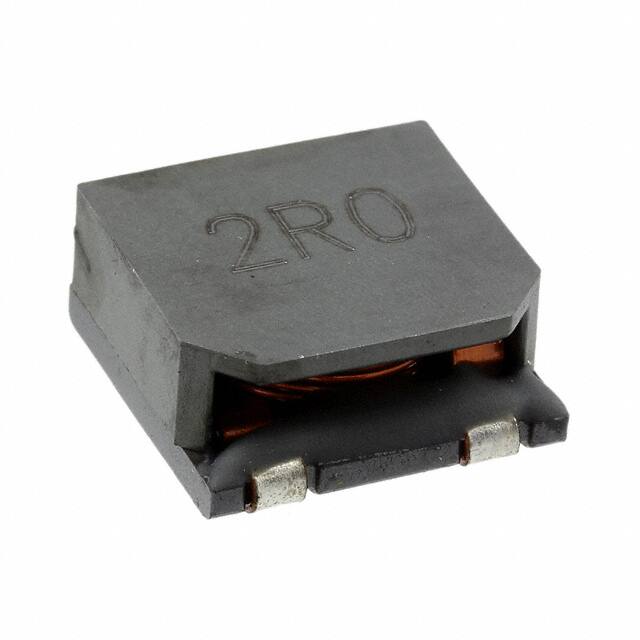

SRP1206-2R0YFIXED IND 2UH 17A 6 MOHM SMD |
3,917 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1206 | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 17 A | 15A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRR1280-271V4KFIXED IND 270UH 1.2A 450MOHM SMD |
3,420 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280 | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.2 A | 1.6A | Shielded | 450mOhm Max | 20 @ 796kHz | 3.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
CM201212-47NKLFIXED IND 47NH 385MA 420MOHM SMD |
2,315 | - |
|
Техническая |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CM201212 | Obsolete | Wirewound | Polymer | 47 nH | ±10% | 385 mA | - | Unshielded | 420mOhm Max | 15 @ 100MHz | 1.6GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) |
|

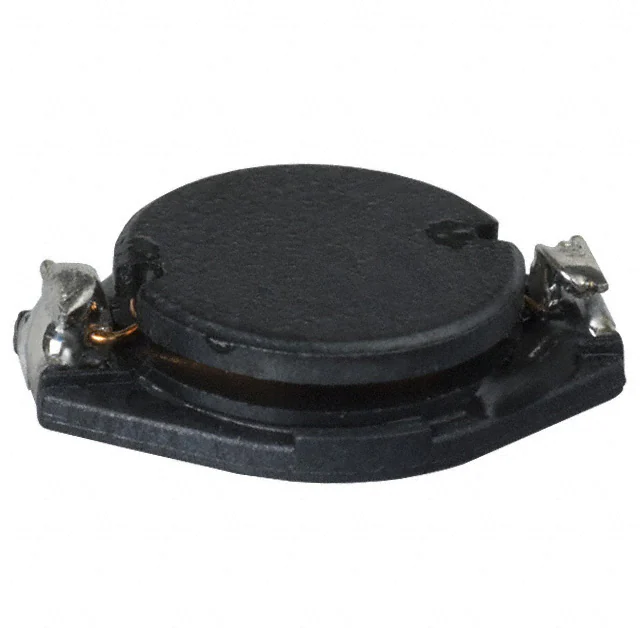

PM3308-151M-RCFIXED IND 150UH 500MA 1.2MOHM SM |
3,783 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PM3308 | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 500 mA | 600mA | Unshielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SRP1040-3R3MFIXED IND 3.3UH 10A 10 MOHM SMD |
3,972 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1040 | Obsolete | - | Iron | 3.3 µH | ±20% | 10 A | 14A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRP1235-R47MFIXED IND 470NH 32A 2 MOHM SMD |
2,508 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1235 | Obsolete | - | Iron | 470 nH | ±20% | 32 A | 44A | Shielded | 2mOhm Max | - | 85MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
2000-1R5-V-RCFIXED IND 1.5UH 18.7A 2 MOHM TH |
2,369 | - |
|
Техническая |
Radial, Vertical (Open) | Bulk | 2000 | Obsolete | Toroidal | - | 1.5 µH | ±20% | 18.7 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
2000-2R0-H-RCFIXED IND 2UH 15.6A 2.7 MOHM TH |
2,936 | - |
|
Техническая |
Radial, Horizontal (Open) | Bulk | 2000 | Obsolete | Toroidal | - | 2 µH | ±20% | 15.6 A | - | Unshielded | 2.7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
