+86 15815556552Интерфейс - аналоговый переключатель, мультиплексор, мультиплексор
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG408DJIC MULTIPLEXER 8X1 16DIP |
3,274 | - |
|
Техническая |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 34V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG411DJIC SWITCH QUAD SPST 16DIP |
3,930 | - |
|
Техническая |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
DG411DYIC SWITCH QUAD SPST 16SOIC |
3,830 | - |
|
Техническая |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG412DJIC SWITCH QUAD SPST 16DIP |
3,357 | - |
|
Техническая |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NO | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG412DYIC SWITCH QUAD SPST 16SOIC |
3,297 | - |
|
Техническая |
16-SOIC (0.154, 3.90mm Width) | Bag | - | Obsolete | SPST - NO | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
HI1-0506A-5IC MULTIPLEXER 16X1 28CDIP |
2,415 | - |
|
Техническая |
28-CDIP (0.600, 15.24mm) | Tube | - | Obsolete | - | 16:1 | 1 | 1.8kOhm | - | - | ±15V | 500ns, 500ns | - | - | 10pF, 52pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | Through Hole |
|
|
HI3-0508A-5IC MULTIPLEXER 8X1 16DIP |
2,181 | - |
|
Техническая |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | - | 8:1 | 1 | 1.8kOhm | - | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 25pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | Through Hole |
|
|
ISL43240IAIC SWITCH QUAD SPDT 20SSOP |
3,663 | - |
|
Техническая |
20-SSOP (0.209, 5.30mm Width) | Bag | - | Obsolete | SPDT | 2:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 10pF | 200pA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL43L210IH-TIC SWITCH SPDT SC70-6 |
3,771 | - |
|
Техническая |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | - | Obsolete | SPDT | 2:1 | 1 | 360mOhm (Typ) | 2mOhm | 1.1V ~ 4.5V | - | 15ns, 10ns | - | 25pC | 40pF | 30nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL84781IVIC MUX/DEMUX 8X1 16TSSOP |
3,868 | - |
|
Техническая |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Obsolete | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
HI3-5043-5ZIC SWITCH DUAL SPDT 16DIP |
2,024 | - |
|
Техническая |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPDT | 2:1 | 2 | 75Ohm | 2Ohm | - | ±15V | 500ns, 500ns | - | - | 11pF, 11pF | 2nA | -88dB @ 100kHz | 0°C ~ 75°C (TA) | Through Hole |
|
ISL43L111IHZ-TIC SWITCH SPST SC70-5 |
3,221 | - |
|
Техническая |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPST - NC | 1:1 | 1 | 220mOhm (Typ) | - | 1.1V ~ 4.5V | - | 15ns, 10ns | - | 89pC | 68pF | 30nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL43L220IRZ-TIC SWITCH DUAL SPDT 10TDFN |
2,762 | - |
|
Техническая |
10-VFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 2 | 350mOhm | 30mOhm | 1.1V ~ 4.5V | - | 17ns, 10ns | - | 128pC | 115pF | 60nA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL43L420IRZ-TIC SWITCH QUAD SPDT 16QFN |
2,147 | - |
|
Техническая |
16-VFQFN Exposed Pad | Tape & Reel (TR) | - | Obsolete | SPDT | 2:1 | 4 | 450Ohm | 50mOhm | 1.1V ~ 4.5V | - | 13ns, 10ns | - | -120pC | 106pF | 50nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ISL43L410IRZ-TIC SWITCH DPDT 10TDFN |
2,448 | - |
|
Техническая |
10-VFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | DPDT | 2:2 | 1 | 400mOhm | 30mOhm | 1.65V ~ 3.6V | - | 20ns, 12ns | - | 95pC | 115pF | 2nA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL84684IUZ-TIC SWITCH DUAL SPDT 10MSOP |
3,798 | - |
|
Техническая |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR) | - | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 55mOhm | 1.65V ~ 3.6V | - | 50ns, 27ns | - | 94pC | 65pF | 4nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ISL84780IVZ-TIC SWITCH QUAD SPDT 16TSSOP |
3,648 | - |
|
Техническая |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 4 | 600mOhm | 130mOhm | 1.65V ~ 3.6V | - | 20ns, 14ns | - | -97pC | 62pF | 3nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL84780IRZ-TIC SWITCH QUAD SPDT 16TQFN |
2,845 | - |
|
Техническая |
16-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 4 | 600mOhm | 130mOhm | 1.65V ~ 3.6V | - | 20ns, 14ns | - | -97pC | 62pF | 3nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ISL84684IRZ-TIC SWITCH DUAL SPDT 10TDFN |
3,281 | - |
|
Техническая |
10-VFDFN Exposed Pad | Tape & Reel (TR) | - | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 55mOhm | 1.65V ~ 3.6V | - | 50ns, 27ns | - | 94pC | 65pF | 4nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|

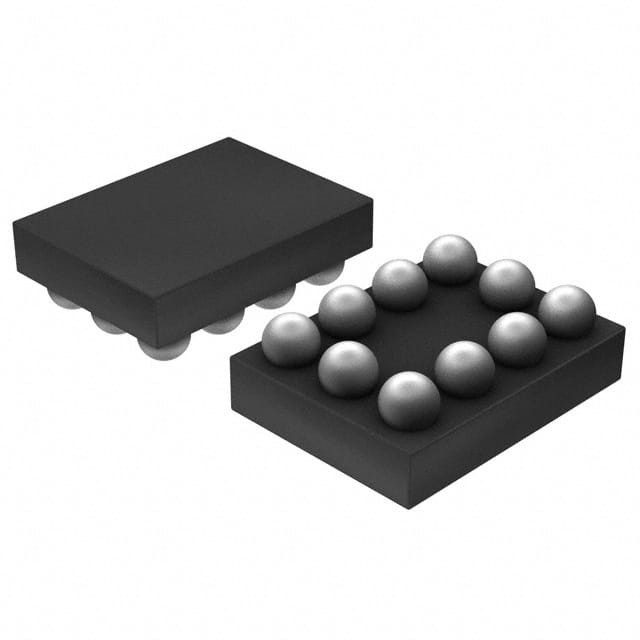

ISL84684IIZ-TIC SWITCH DUAL SPDT 10WLCSP |
3,869 | - |
|
Техническая |
10-WFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 2 | 140mOhm (Typ) | 50mOhm | 1.8V ~ 4.5V | - | 40ns, 35ns | - | 260pC | 140pF | 900nA (Typ) | -105dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
