Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
ELSH-F91Y3-0LPNM-BA3A5 LED SHUEN AMBER 589NM SMD Everlight Electronics Co Ltd	2,734	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHUEN	Active	Amber	589nm (585nm ~ 593nm)	700mA	2.65V	51 lm/W	750mA	95lm (90lm ~ 100lm)	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSW-E91B3-0LPNM-DB6B8 LED SHWO BLUE 463NM SMD Everlight Electronics Co Ltd	3,240	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHWO	Active	Blue	463nm (455nm ~ 470nm)	700mA	3.55V	10 lm/W	750mA	25lm (23lm ~ 27lm)	25°C	120°	Surface Mount	1414 (3535 Metric)
EAHP3045BA1 LED EAHP3045 BLUE 463NM 3045 Everlight Electronics Co Ltd	3,998	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Blue	463nm (455nm ~ 470nm)	350mA	3.55V	-	750mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3045RA2 LED EAHP3045 RED 623NM 3045 Everlight Electronics Co Ltd	2,270	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Red	623nm (615nm ~ 630nm)	350mA	2.65V	-	750mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3045YA2 LED EAHP3045 AMBER 589NM 3045 Everlight Electronics Co Ltd	3,356	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Amber	589nm (585nm ~ 593nm)	350mA	2.65V	-	750mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3535BA1 LED EAHP3535 BLUE 463NM 3535 Everlight Electronics Co Ltd	3,969	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3535	Active	Blue	463nm (455nm ~ 470nm)	350mA	3.55V	-	750mA	-	25°C	120°	Surface Mount	1414 (3535 Metric)
EAHP3535RA1 LED EAHP3535 RED 623NM 3535 Everlight Electronics Co Ltd	2,258	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3535	Active	Red	623nm (615nm ~ 630nm)	350mA	2.65V	-	750mA	-	25°C	120°	Surface Mount	1414 (3535 Metric)
EAHP3535YA1 LED EAHP3535 AMBER 589NM 3535 Everlight Electronics Co Ltd	2,735	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3535	Active	Amber	589nm (585nm ~ 593nm)	350mA	2.65V	-	750mA	-	25°C	120°	Surface Mount	1414 (3535 Metric)
EAHP3045OA1 LED EAHP3045 ORANGE 615NM 3045 Everlight Electronics Co Ltd	2,284	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Orange	615nm (610nm ~ 620nm)	350mA	2.35V	-	600mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSH-E81B3-0LPNM-DB6B8 LED SHUEN BLUE 463NM SMD Everlight Electronics Co Ltd	3,041	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHUEN	Active	Blue	463nm (455nm ~ 470nm)	700mA	3.55V	9 lm/W	750mA	22lm (20lm ~ 23lm)	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSW-E81B3-0LPNM-DB6B8 LED SHWO BLUE 463NM SMD Everlight Electronics Co Ltd	3,479	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHWO	Active	Blue	463nm (455nm ~ 470nm)	700mA	3.55V	9 lm/W	750mA	22lm (20lm ~ 23lm)	25°C	120°	Surface Mount	1414 (3535 Metric)
ELSW-F71G1-0LPNM-CG1G2 LED SHWO GREEN 525NM SMD Everlight Electronics Co Ltd	2,274	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHWO	Active	Green	525nm (520nm ~ 530nm)	350mA	3.25V	66 lm/W	400mA	75lm (70lm ~ 80lm)	25°C	120°	Surface Mount	1414 (3535 Metric)
EAHP3045RA3 LED EAHP3045 RED 733NM 3045 Everlight Electronics Co Ltd	2,503	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Red	733nm (725nm ~ 740nm)	350mA	2.35V	-	600mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSH-J11G3-0LPNM-DG1G3 LED SHUEN GREEN 528NM SMD Everlight Electronics Co Ltd	3,203	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHUEN	Active	Green	528nm (520nm ~ 535nm)	700mA	3.55V	42 lm/W	750mA	105lm (100lm ~ 110lm)	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3045GA4 LED EAHP3045 GREEN 530NM 3045 Everlight Electronics Co Ltd	2,985	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Green	530nm (525nm ~ 535nm)	350mA	3.25V	-	600mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3535GA2 LED EAHP3535 GREEN 528NM 3535 Everlight Electronics Co Ltd	2,230	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3535	Active	Green	528nm (520nm ~ 535nm)	350mA	3.55V	-	750mA	-	25°C	120°	Surface Mount	1414 (3535 Metric)

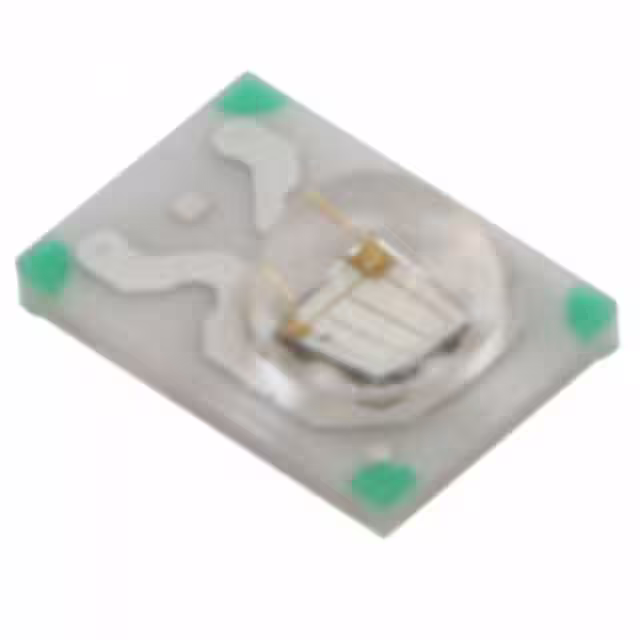

ELSH-E71B1-0CPNM-CB7B8 LED SHUEN BLUE 465NM SMD Everlight Electronics Co Ltd	2,214	-	запрос цен		Tape & Reel (TR),Cut Tape (CT)	SHUEN	Active	Blue	465nm (460nm ~ 470nm)	350mA	3.25V	15 lm/W	600mA	19lm (17lm ~ 20lm)	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSH-F91G3-0LPNM-DG1G3 LED SHUEN GREEN 528NM SMD Everlight Electronics Co Ltd	2,609	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHUEN	Active	Green	528nm (520nm ~ 535nm)	700mA	3.55V	38 lm/W	750mA	95lm (90lm ~ 100lm)	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSW-F91G3-0LPNM-DG1G3 LED SHWO GREEN 528NM SMD Everlight Electronics Co Ltd	3,034	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHWO	Active	Green	528nm (520nm ~ 535nm)	700mA	3.55V	38 lm/W	750mA	95lm (90lm ~ 100lm)	25°C	120°	Surface Mount	1414 (3535 Metric)
ELSH-F61O1-0LPNM-AR3R4 LED SHUEN ORANGE 615NM SMD Everlight Electronics Co Ltd	2,641	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHUEN	Active	Orange	615nm (610nm ~ 620nm)	350mA	2.35V	79 lm/W	600mA	65lm (60lm ~ 70lm)	25°C	120°	Surface Mount	1218 (3246 Metric)

Общий 94 Записывать«Предыдущая 1 2 345 Следующий»
