Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
LY G6SP-CBFA-36-3B5A-140-R18-Z LED TOPLED YELLOW 590NM 6PLCC ams-OSRAM USA Inc.	2,558	-	запрос цен	Техническая	Tape & Reel (TR)	Advanced Power TOPLED®	Active	Yellow	590nm	140mA	2.35V	76 lm/W	200mA	25lm (12lm ~ 38lm)	25°C	120°	Surface Mount	6-PLCC
GD PSLR31.13-1U3U-25-1 LED DURIS S5 BLUE 453NM SMD ams-OSRAM USA Inc.	2,386	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	DURIS® S 5	Active	Blue	453nm (444nm ~ 461nm)	150mA	6.25V	-	200mA	-	25°C	120°	Surface Mount	1212 (3030 Metric)

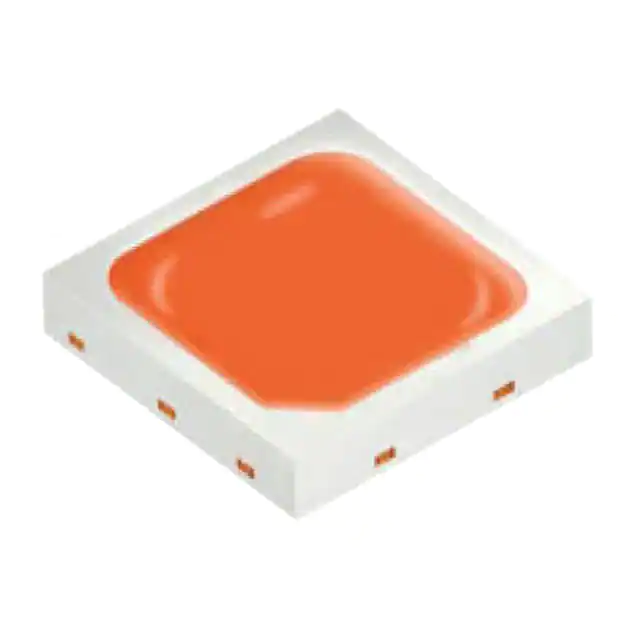

GA PSLR31.13-JPJR-A1A2-1-150-R18 LED DURIS S5 AMBER 610NM SMD ams-OSRAM USA Inc.	2,257	-	запрос цен	Техническая	Tape & Reel (TR)	DURIS® S 5	Active	Amber	610nm (Typ)	150mA	6.25V	54 lm/W	200mA	51lm (Typ)	25°C	120°	Surface Mount	1212 (3030 Metric)
GA PSLM31.23-GQGS-23-1-100-R18 LED DURIS S5 AMBER 617NM SMD ams-OSRAM USA Inc.	2,125	-	запрос цен		Tape & Reel (TR)	DURIS® S 5	Active	Amber	617nm (Typ)	100mA	2.11V	105 lm/W	200mA	22lm (19lm ~ 24lm)	25°C	120°	Surface Mount	1212 (3030 Metric)
GT PSLM31.13-HRHT-26-KM-100-R18 LED DURIS S5 GREEN 528NM SMD ams-OSRAM USA Inc.	3,854	-	запрос цен	Техническая	Tape & Reel (TR)	DURIS® S 5	Active	Green	528nm (Typ)	100mA	2.9V	66 lm/W	200mA	38lm (33lm ~ 42lm)	25°C	120°	Surface Mount	1212 (3030 Metric)
GY PSLM31.13-HQHS-5F5G-L2M2-100-R18 LED DURIS S5 YELLOW SMD ams-OSRAM USA Inc.	2,894	-	запрос цен	Техническая	Tape & Reel (TR)	DURIS® S 5	Active	Yellow	-	100mA	2.96V	117 lm/W	200mA	35lm (Typ)	25°C	120°	Surface Mount	1212 (3030 Metric)
GT DASPA2.13-HQHS-35-JL-100-R18 LED OSCONIQ P 2226 GRN 525NM SMD ams-OSRAM USA Inc.	2,908	-	запрос цен	Техническая	Tape & Reel (TR)	OSCONIQ® P 2226	Active	Green	525nm (Typ)	100mA	2.75V	127 lm/W	250mA	35lm (Typ)	25°C	110°	Surface Mount	1009 (2622 Metric)
GD DASPA2.14-ROSK-24-LM-100-R18 LED OSCONIQ P 2226 BLU 450NM SMD ams-OSRAM USA Inc.	3,857	-	запрос цен	Техническая	Tape & Reel (TR)	OSCONIQ® P 2226	Active	Blue	450nm (Typ)	100mA	2.9V	-	250mA	-	25°C	110°	Surface Mount	1009 (2622 Metric)
GT PSLR31.13-LUMQ-T1T2-1-150-R18 LED DURIS S5 GREEN 540NM SMD ams-OSRAM USA Inc.	2,562	-	запрос цен	Техническая	Tape & Reel (TR)	DURIS® S 5	Active	Green	540nm (Typ)	150mA	6.25V	199 lm/W	200mA	187lm (164lm ~ 210lm)	25°C	120°	Surface Mount	1212 (3030 Metric)

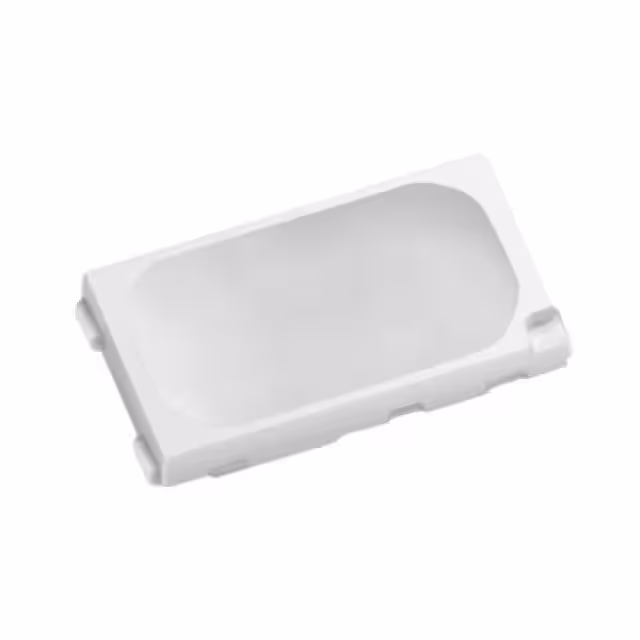

EAHP5630RA0 LED EAHP5630 RED 626NM 2PLCC Everlight Electronics Co Ltd	3,241	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP5630	Active	Red	626nm (620nm ~ 632nm)	150mA	2.2V	-	150mA	-	25°C	120°	Surface Mount	2212 (5630 Metric)
LY A67B-T2V1-26-0-30-R33-Z LED SIDELED YELLOW SMD ams-OSRAM USA Inc.	2,516	-	запрос цен	Техническая	Tape & Reel (TR)	SIDELED	Last Time Buy	Yellow	-	30mA	2.1V	-	-	-	-	120°	Surface Mount, Right Angle	2-SMD, Boomerang
LTW-5630SD458 LED 5630 458NM 4SMD Lite-On Inc.	2,858	-	запрос цен	Техническая	Tape & Reel (TR)	5630	Active	-	458nm (Typ)	150mA	3.1V	19 lm/W	-	9lm (Typ)	-	120°	Surface Mount	4-SMD, Flat Lead Exposed Pad
GF JTLPS1.24-KXK5-1-1-150-R33 LED DURIS RED SMD ams-OSRAM USA Inc.	2,744	-	запрос цен	Техническая	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-
KB DMLN31.13-7D8F-36-15B5-200-R18 LED SYNIOS P2720 BLUE 455NM SMD ams-OSRAM USA Inc.	3,145	-	запрос цен	Техническая	Tape & Reel (TR)	SYNIOS® P2720	Active	Blue	455nm (Typ)	200mA	3V	13 lm/W	300mA	12lm (Typ)	25°C	120°	Surface Mount	1108 (2720 Metric)
LV T6SG-V1BB-25-Z LED TOPLED GREEN 505NM 2PLCC ams-OSRAM USA Inc.	3,492	-	запрос цен	Техническая	Tape & Reel (TR)	TOPLED	Not For New Designs	Green	505nm (Typ)	20mA	3.2V	-	50mA	-	25°C	120°	Surface Mount	2-PLCC
XI3030P/RK3C-D1025PAR160681Z15/2N LED RED 618NM 1212 Everlight Electronics Co Ltd	2,024	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red	618nm (610nm ~ 625nm)	150mA	6.4V	48 lm/W	200mA	46lm (36lm ~ 55lm)	25°C	120°	Surface Mount	1212 (3030 Metric)
XSM2CRK383W LED RED 624NM SunLED	3,645	-	запрос цен	Техническая	Tube	-	Active	Red	624nm (Typ)	20mA	2V	25 lm/W	30mA	1lm (Typ)	25°C	110°	Through Hole	4-DIP (0.200, 5.08mm)
XSM2CRK983W LED RED 625NM SunLED	2,154	-	запрос цен	Техническая	Tube	-	Active	Red	625nm (Typ)	70mA	2V	43 lm/W	70mA	6lm (Typ)	25°C	70°	Through Hole	4-DIP (0.200, 5.08mm)
XSM2CYK983W LED YELLOW 590NM SunLED	3,834	-	запрос цен	Техническая	Tube	-	Active	Yellow	590nm (Typ)	70mA	2.4V	30 lm/W	70mA	5lm (Typ)	25°C	70°	Through Hole	4-DIP (0.200, 5.08mm)
XQABLU-00-0000-000000T01 LED XLAMP XQA BLUE 475NM SMD CreeLED, Inc.	2,706	-	запрос цен	Техническая	Bulk	Xlamp® XQ-A	Active	Blue	475nm (465nm ~ 485nm)	175mA	3V	21 lm/W	250mA	12lm (Typ)	25°C	105°	Surface Mount	0606 (1616 Metric)

Общий 3875 Записывать«Предыдущая 1... 33 34 35 363738 39 40...194 Следующий»
