Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
XPEBAM-L1-R250-00701 LED XLAMP XPE2 AMBER 590NM SMD CreeLED, Inc.	2,598	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E2	Active	Amber	590nm (585nm ~ 595nm)	350mA	2.2V	92 lm/W	1A	71lm (67lm ~ 74lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEBGR-L1-R250-00A03 LED XLAMP XPE2 GREEN 530NM SMD CreeLED, Inc.	2,841	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E2	Active	Green	530nm (525nm ~ 535nm)	350mA	2.85V	81 lm/W	1A	91lm (87lm ~ 94lm)	25°C	135°	Surface Mount	1414 (3535 Metric)
XPEBGR-L1-R250-00C01 LED XLAMP XPE2 GREEN 528NM SMD CreeLED, Inc.	2,408	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E2	Active	Green	528nm (520nm ~ 535nm)	350mA	2.85V	93 lm/W	1A	104lm (100lm ~ 107lm)	25°C	135°	Surface Mount	1414 (3535 Metric)
XPEBRO-L1-R250-00901 LED XLAMP XPE2 RED-ORG 615NM SMD CreeLED, Inc.	3,517	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E2	Active	Red-Orange	615nm (610nm ~ 620nm)	350mA	2.2V	109 lm/W	1A	84lm (81lm ~ 87lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEBRY-L1-R250-00J03 LED XLAMP XPE2 BLU 460NM SMD CreeLED, Inc.	2,364	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E2	Active	Blue	460nm (455nm ~ 465nm)	350mA	3.1V	-	1A	463mW (450mW ~ 475mW)	25°C	135°	Surface Mount	1414 (3535 Metric)
LCB CRBP-JXKX-3B6B-1-350-R18-Z LED OSLON SIGNAL BLUE SMD ams-OSRAM USA Inc.	3,266	-	запрос цен	Техническая	Tape & Reel (TR)	OSLON® Signal	Not For New Designs	Blue	-	350mA	2.95V	62 lm/W	1A	64lm (45lm ~ 82lm)	25°C	125°	Surface Mount	1212 (3030 Metric)
EAHP3535YA0 LED EAHP3535 AMBER 589NM 3535 Everlight Electronics Co Ltd	3,241	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3535	Active	Amber	589nm (585nm ~ 593nm)	350mA	2.35V	-	600mA	-	25°C	120°	Surface Mount	1414 (3535 Metric)
EAHP3045GA0 LED EAHP3045 GREEN 525NM 3045 Everlight Electronics Co Ltd	2,406	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Green	525nm (520nm ~ 530nm)	350mA	3.25V	-	600mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3045GA1 LED EAHP3045 GREEN 530NM 3045 Everlight Electronics Co Ltd	2,308	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3045	Active	Green	530nm (525nm ~ 535nm)	350mA	3.25V	-	600mA	-	25°C	120°	Surface Mount	1218 (3246 Metric)
EAHP3535GA1 LED EAHP3535 GREEN 530NM 3535 Everlight Electronics Co Ltd	2,322	-	запрос цен	Техническая	Tape & Reel (TR)	EAHP3535	Active	Green	530nm (525nm ~ 535nm)	350mA	3.25V	-	600mA	-	25°C	120°	Surface Mount	1414 (3535 Metric)
XPEAMB-L1-0000-00303 LED XLAMP XPE AMB 593NM SMD CreeLED, Inc.	2,687	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E	Active	Amber	593nm (590nm ~ 595nm)	350mA	2.1V	67 lm/W	500mA	49lm (46lm ~ 52lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEBRO-L1-0000-00C02 LED XLAMP XPE2 RED-ORG 613NM SMD CreeLED, Inc.	2,467	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XP-E2	Active	Red-Orange	613nm (610nm ~ 615nm)	350mA	2.2V	135 lm/W	1A	104lm (100lm ~ 107lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XQERDO-00-0000-000000A03 LED XLAMP XQE RED-ORG 618NM SMD CreeLED, Inc.	2,275	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XQ-E	Active	Red-Orange	618nm (615nm ~ 620nm)	350mA	2.2V	118 lm/W	1A	91lm (87lm ~ 94lm)	25°C	130°	Surface Mount	0606 (1616 Metric)
XQERDO-00-0000-000000B02 LED XLAMP XQE RED-ORG 613NM SMD CreeLED, Inc.	3,972	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XQ-E	Active	Red-Orange	613nm (610nm ~ 615nm)	350mA	2.2V	126 lm/W	1A	97lm (94lm ~ 100lm)	25°C	130°	Surface Mount	0606 (1616 Metric)
LXML-PR02-A900 LED LUXEON REBEL BLUE 448NM SMD Lumileds	3,035	-	запрос цен	Техническая	Tape & Reel (TR)	LUXEON Rebel Color ES	Active	Blue	448nm (Typ)	700mA	2.9V	-	1A	965mW (900mW ~ 1030mW)	25°C	125°	Surface Mount	1812 (4532 Metric)

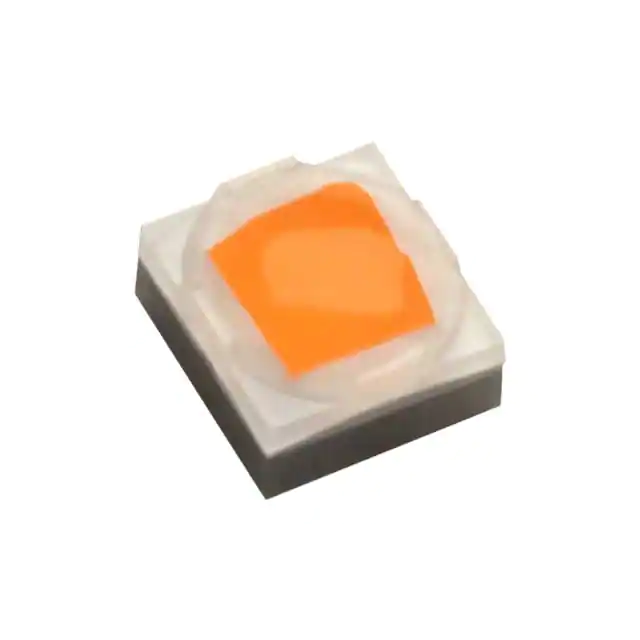

L1C1-PCA1000000000 LED LUXEON C AMBER SMD Lumileds	3,262	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	LUXEON C	Active	Amber	-	350mA	2.75V	98 lm/W	1.05A	94lm (Typ)	85°C	150°	Surface Mount	0707 (1919 Metric)
XQEROY-02-0000-000000M03 LED XLAMP XQE BLUE 460NM SMD CreeLED, Inc.	3,203	-	запрос цен	Техническая	Tape & Reel (TR)	XLamp® XQ-E	Active	Blue	460nm (455nm ~ 465nm)	350mA	3.1V	-	1A	538mW (525mW ~ 550mW)	25°C	125°	Surface Mount	0606 (1616 Metric)
ELSH-E61B1-0LPNM-CB7B8 LED SHUEN BLUE 465NM SMD Everlight Electronics Co Ltd	2,231	-	запрос цен	Техническая	Tape & Reel (TR)	SHUEN	Active	Blue	465nm (460nm ~ 470nm)	350mA	3.25V	11 lm/W	600mA	15lm (13lm ~ 17lm)	25°C	120°	Surface Mount	1218 (3246 Metric)
ELSW-E61B1-0LPNM-CB7B8 LED SHWO BLUE 465NM SMD Everlight Electronics Co Ltd	3,544	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHWO	Active	Blue	465nm (460nm ~ 470nm)	350mA	3.25V	13 lm/W	400mA	15lm (13lm ~ 17lm)	25°C	120°	Surface Mount	1414 (3535 Metric)
ELSW-F51O1-0LPNM-AR3R4 LED SHWO ORANGE 615NM SMD Everlight Electronics Co Ltd	3,028	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SHWO	Active	Orange	615nm (610nm ~ 620nm)	350mA	2.35V	68 lm/W	400mA	56lm (52lm ~ 60lm)	25°C	120°	Surface Mount	1414 (3535 Metric)

Общий 3875 Записывать«Предыдущая 1... 58 59 60 616263 64 65...194 Следующий»
