+86 15815556552реле с сухими пружинами
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIL05-1A72-71DRELAY REED SPST 0.5A 5V |
600 | - |
|
Техническая |
Tube | SIL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL03-1A72-71DRELAY REED SPST 0.5A 3V |
2,760 | - |
|
Техническая |
Tube | SIL | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | Diode | PC Pin | - | 2.1 VDC | 0.45 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C |
|
DIP05-2A72-21LRELAY REED DPST 1A 5V |
2,344 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
SHV05-1A85-78D2KRELAY REED SPST 1A 5V |
392 | - |
|
Техническая |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 105°C |
|
|
SHV05-1A85-78D4KRELAY REED SPST 1A 5V |
897 | - |
|
Техническая |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|

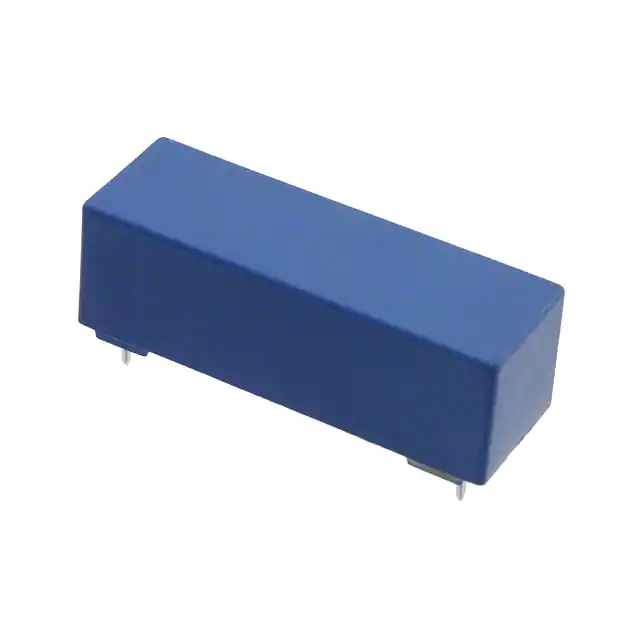

LI24-1A85RELAY REED SPST 1A 24V |
527 | - |
|
Техническая |
Tube | LI | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-1A72-11LRELAY REED SPST 1A 5V |
932 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-1A72-11DRELAY REED SPST 1A 5V |
221 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL12-1A72-71LRELAY REED SPST 0.5A 12V |
2,534 | - |
|
Техническая |
Tube | SIL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-2A72-21DRELAY REED DPST 1A 5V |
257 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-1C90-51LRELAY REED SPDT 250MA 5V |
103 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
CRR05-1BRELAY REED SPST-NC 500MA 5V |
2,329 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | CRR | Active | Surface Mount | 5VDC | SPST-NC (1 Form B) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C |
|
DIL05-2C90-63LRELAY REED DPDT 250MA 5V |
2,164 | - |
|
Техническая |
Tube | DIL | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 175VAC, 175VDC - Max | 33.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
CRR05-1ASRELAY REED SPST 500MA 5V |
3,126 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | CRR | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | BGA | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C |
|

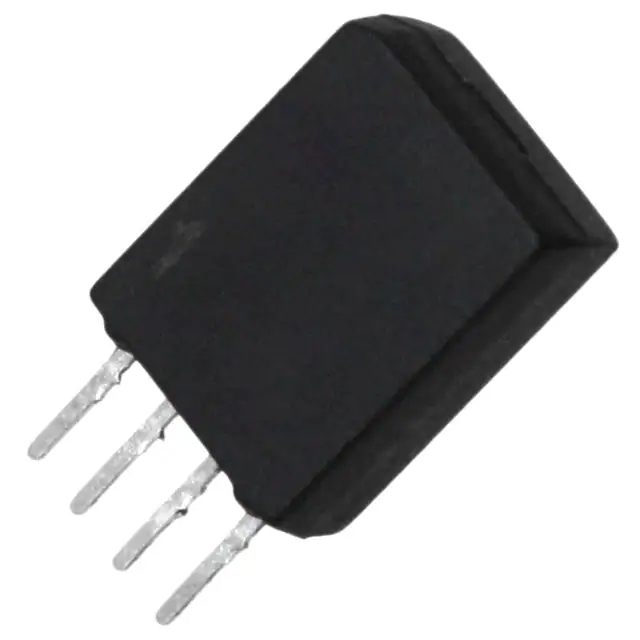

UMS05-1A80-75DRELAY REED SPST 500MA 5V |
3,433 | - |
|
Техническая |
Tube | UMS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C |
|
DIP24-2A72-21DRELAY REED DPST 1A 24V |
3,922 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|

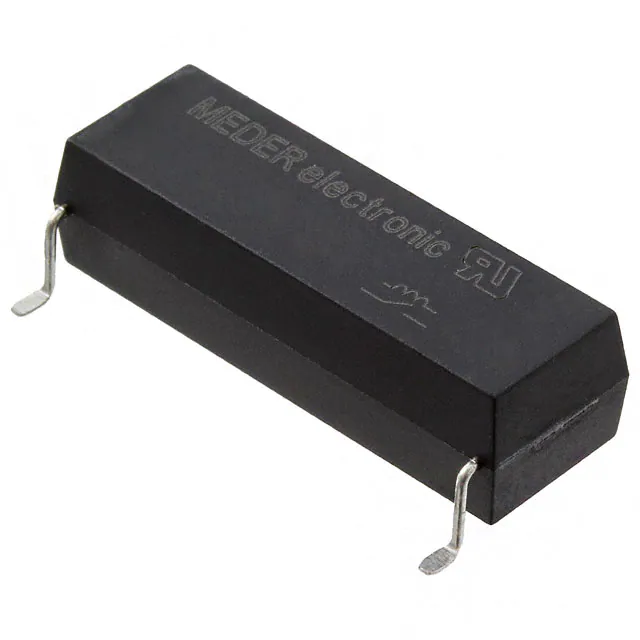

KT12-1A-40L-SMDREED RELAY 1 FORM A 12V SMD |
2,251 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | KT | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | Gull Wing | Sealed - Fully | 9 VDC | 1 VDC | - | - | -40°C ~ 100°C |
|
KT24-1A-40L-SMDREED RELAY 1 FORM A 24V SMD |
3,598 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | KT | Active | Surface Mount | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C |
|
|
DIP05-1A72-13LRELAY REED SPST 1A 5V |
2,826 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP12-1A72-12LRELAY REED SPST 1A 12V |
3,793 | - |
|
Техническая |
Tube | DIP | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
