| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8L61-12-101RELAY REED SPDT 250MA 12V |
2,698 | - |
|
Техническая |
Bulk | 8L | Active | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
2271-12-001RELAY REED SPDT 250MA 12V |
3,758 | - |
|
Техническая |
Tube | 2270 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 125°C |
|

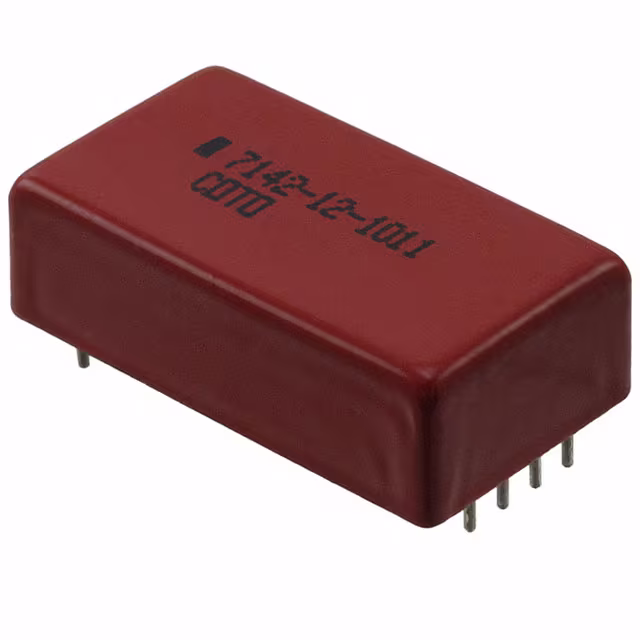

7142-12-1011RELAY REED DPDT 250MA 12V |
2,572 | - |
|
Техническая |
Bulk | 7000 | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C |
|
9001-05-00RELAY REED SPST 500MA 5V |
2,223 | - |
|
Техническая |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
9091-05-11RELAY REED SPST 500MA 5V |
2,403 | - |
|
Техническая |
Tube | 9091 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|
9913-05-20RELAY REED SPST-NO 250MA 5V |
2,740 | - |
|
Техническая |
Tube | 9913 | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C |
|
9117-05-10RELAY REED SPST 250MA 5V |
2,490 | - |
|
Техническая |
Bulk | 9117 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 12.5 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C |
|
5000-0408RELAY REED CONMED REV K |
2,232 | - |
|
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
9007-05-10RELAY REED SPST 500MA 5V |
3,890 | - |
|
Техническая |
Tube | 9000, Spartan | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
9007-12-10RELAY REED SPST 500MA 12V |
2,792 | - |
|
Техническая |
Tube | 9000, Spartan | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|

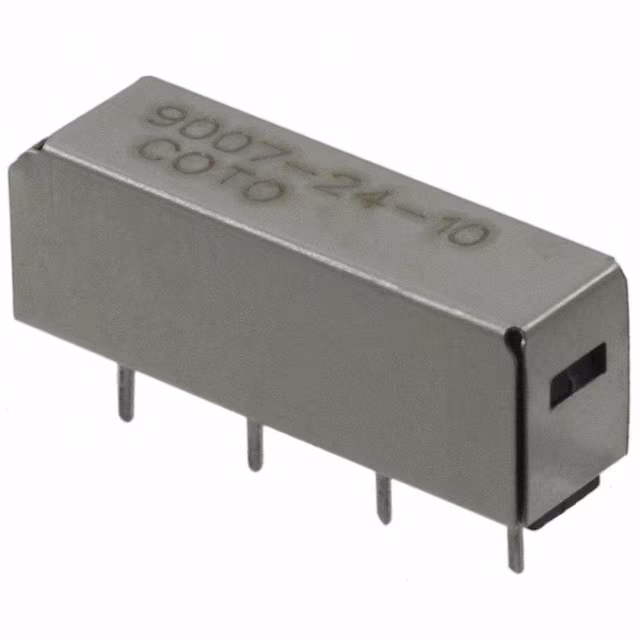

9007-24-10RELAY REED SPST 500MA 24V |
2,284 | - |
|
Техническая |
Tube | 9000, Spartan | Not For New Designs | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
9091-12-00RELAY REED SPST 500MA 12V |
2,081 | - |
|
Техническая |
Tube | 9091 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|
9001-05-10RELAY REED SPST 500MA 5V |
3,838 | - |
|
Техническая |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
8L01-12-111RELAY REED SPST 500MA 12V |
2,758 | - |
|
Техническая |
Tube | 8L | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
9001-12-11RELAY REED SPST 500MA 12V |
3,375 | - |
|
Техническая |
Tube | 9000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
|
8L02-24-10RELAY REED DPST 500MA 24V |
2,929 | - |
|
Техническая |
Tube | 8L | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
9201-12-00TRRELAY REED SPST 500MA 12V |
2,417 | - |
|
Техническая |
Tape & Reel (TR) | 9200 | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C |
|
|
1340-0251RELAY REED HV CUSTOM |
2,482 | - |
|
Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
9091-12-10RELAY REED SPST 500MA 12V |
3,160 | - |
|
Техническая |
Tube | 9091 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|
|
9091-12-11RELAY REED SPST 500MA 12V |
3,791 | - |
|
Техническая |
Tube | 9091 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
