| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBR72475PURELAY REED SPST-NC 7.5KV 24V |
3,554 | - |
|
Техническая |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT70510F-HRRELAY REED SPST-NO 2A 5V |
3,191 | - |
|
Техническая |
Tray | D-HR | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

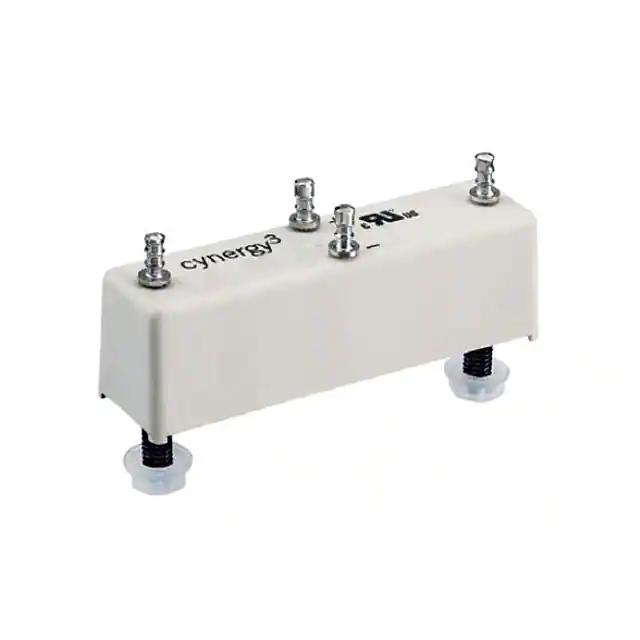

DAR70510PURELAY REED SPST-NO 3A 5V |
2,967 | - |
|
Техническая |
Bulk | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR70510SURELAY REED SPST-NO 3A 5V |
3,263 | - |
|
Техническая |
Bulk | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR70510TURELAY REED SPST-NO 3A 5V |
3,413 | - |
|
Техническая |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR71210PURELAY REED SPST-NO 3A 12V |
3,277 | - |
|
Техническая |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR71210SURELAY REED SPST-NO 3A 12V |
2,144 | - |
|
Техническая |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR71210TURELAY REED SPST-NO 3A 12V |
2,891 | - |
|
Техническая |
Bulk | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR72410PURELAY REED SPST-NO 3A 24V |
2,020 | - |
|
Техническая |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR72410SURELAY REED SPST-NO 3A 24V |
3,431 | - |
|
Техническая |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR72410TURELAY REED SPST-NO 3A 24V |
3,092 | - |
|
Техническая |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR70510FURELAY REED SPST-NO 3A 5V |
3,166 | - |
|
Техническая |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DBT70510FRELAY REED SPST-NC 2A 5V |
2,557 | - |
|
Техническая |
Tray | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|

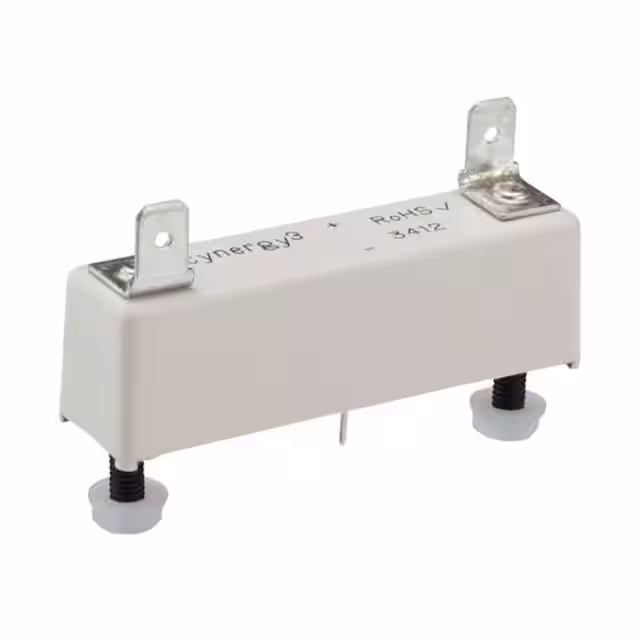

DBT70510SRELAY REED SPST-NC 2A 5V |
3,285 | - |
|
Техническая |
Tray | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBT70510PRELAY REED SPST-NC 2A 5V |
2,755 | - |
|
Техническая |
Tray | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71275TURELAY REED SPST-NC 7.5KV 12V |
2,475 | - |
|
Техническая |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBT70575FURELAY REED SPST-NC 7.5KV 5V |
2,748 | - |
|
Техническая |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72475SURELAY REED SPST-NC 7.5KV 24V |
2,313 | - |
|
Техническая |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT70575F-HRRELAY REED 7.5KV 5V SPST-NC |
3,323 | - |
|
Техническая |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72475TURELAY REED SPST-NC 7.5KV 24V |
3,677 | - |
|
Техническая |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
