| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QSH2818-32-07-006STEP MOTOR HYBRID BIPOLAR 3.8V |
134 | - |
|
Bulk | QMot QSH2818 | Active | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.905 (22.98mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | |
|
QSH4218-41-10-035STEP MOTOR HYBRID BIPOLAR 4.5V |
218 | - |
|
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 4.5VDC | 1 A | 200 | 1.8° | ±5% | 49.56 / 350 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms | |
|
QSH4218-51-10-049STEPPER MOTOR HYBRID BIPOLAR 5V |
165 | - |
|
Техническая |
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 5VDC | 1 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms |
|
QSH5718-51-28-101STEP MOTOR HYBRID BIPOLAR 2.3V |
382 | - |
|
Техническая |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.05 / 1010 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.83 Ohms |
|
QSH6018-56-28-165STEP MOTOR HYBRID BIPOLAR 2.52V |
3,666 | - |
|
Техническая |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 2.52VDC | 2.8 A | 200 | 1.8° | ±5% | 233.66 / 1650 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms |
|
QSH6018-86-28-310STEP MOTOR HYBRID BIPOLAR 4.17V |
2,456 | - |
|
Техническая |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms |
|
QSH8618-96-55-700STEP MOTOR HYBRID BIPOLAR 2.56V |
3,257 | - |
|
Техническая |
Bulk | QMot QSH8618 | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.380 x 3.380 (85.85mm x 85.85mm) | 34 | 0.500 (12.70mm) | 1.310 (33.27mm) | 2.740 (69.60mm) | Wire Leads | -20°C ~ 50°C | 0.45 Ohms |
|
PD60-3-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
3,578 | - |
|
Техническая |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
PD60-3-1260-TMCLPANDRIVE NEMA24, 48V, 2.10NM |
3,375 | - |
|
Техническая |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - |
|
QSH4218-47-28-040STEP MOTOR HYBRID BIPOLAR 1.4V |
260 | - |
|
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 1.4VDC | 2.81 A | 200 | 1.8° | ±5% | 56.3 / 400 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms | |
|
QSH5718-76-28-189STEP MOTOR HYBRID BIPOLAR 3.2V |
212 | - |
|
Техническая |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200 | 1.8° | ±5% | 267.64 / 1890 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms |
|
PD42-1-1141STEPPER MOTOR HYBRID BIPOLAR 24V |
105 | - |
|
Техническая |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 38.2 / 270 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|
QSH2818-32-07-006-8KSTEP MOTOR HYBRID NEMA11 ENC 819 |
3,849 | - |
|
Bulk | QMot QSH2818 | Active | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | |
|
PD42-2-1141STEPPER MOTOR HYBRID BIPOLAR 24V |
3,339 | - |
|
Техническая |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 49.56 / 350 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|
QSH4218-51-10-049-10KSTEP MOTOR HYBRID NEMA17 ENC 100 |
3,712 | - |
|
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 5VDC | 1 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | |
|
PD42-3-1141STEPPER MOTOR HYBRID BIPOLAR 24V |
3,811 | - |
|
Техническая |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|

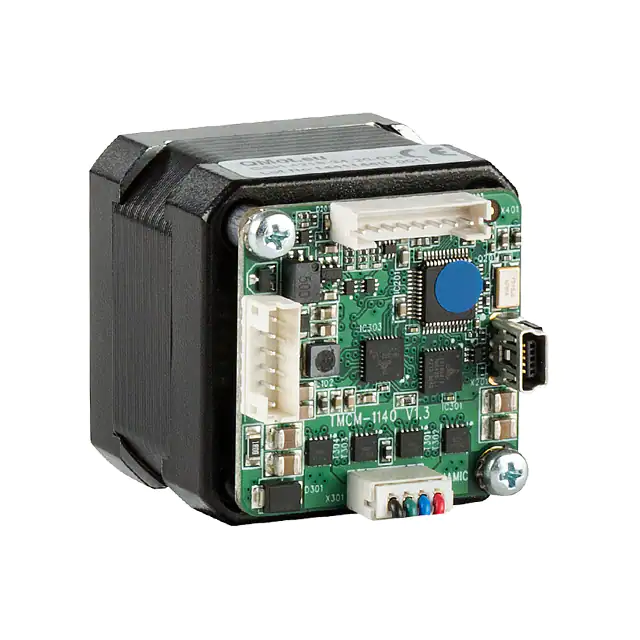

PD42-1-1240-TMCLPANDRIVE NEMA17, 24V, 0.22NM |
3,899 | - |
|
Техническая |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 31.15 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1 Ohms |
|

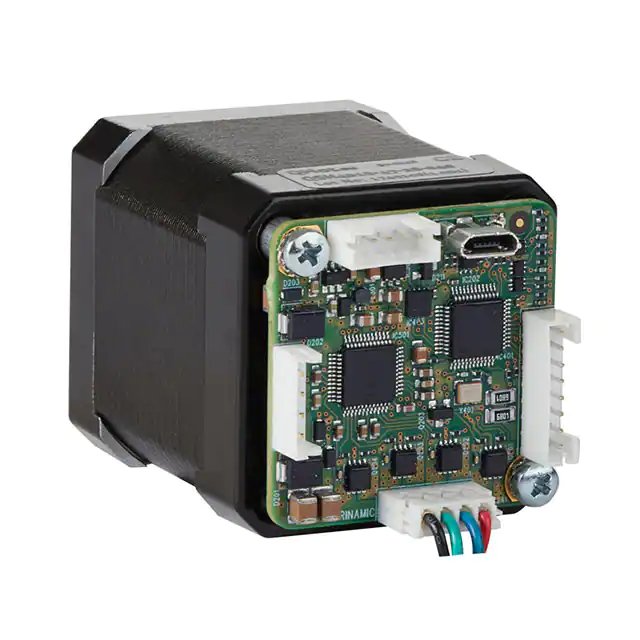

PD42-3-1241-CANOPENPANDRIVE NEMA17, 24V, 0.4NM |
3,862 | - |
|
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 56.66 / 400 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 0.5 Ohms | |
|
PD60-4-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
2,114 | - |
|
Техническая |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
QSH5718-56-28-126STEP MOTOR HYBRID BIPOLAR 2.5V |
3,261 | - |
|
Техническая |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 2.5VDC | 2.8 A | 200 | 1.8° | ±5% | 178.43 / 1260 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms |
