| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

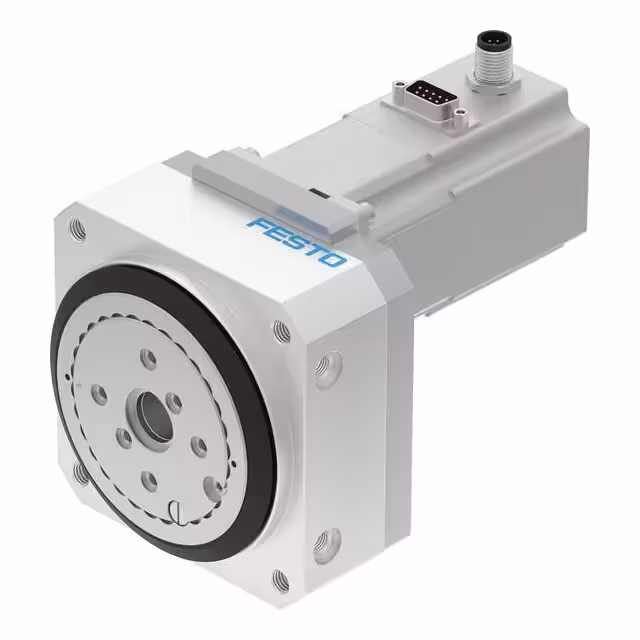

ERMO-32-ST-EROTARY DRIVE |
2,588 | - |
|
Техническая |
Bulk | - | Active | Hybrid | - | 24VDC | 4.2 A | 200 | 1.8° | - | 991.28 / 7000 | Square - 4.134 x 4.134 (105.00mm x 105.00mm) | - | - | 0.472 (12.00mm) | 3.346 (85.00mm) | Wire Leads with Connector | 0°C ~ 50°C | - |
|
2424AUTOMOTIVE GAUGE STEPPER MOTOR |
2,544 | - |
|
Bulk | - | Active | - | Bipolar | - | - | 600 | 315° | - | - | Round - 1.299 Dia (33.00mm) | 17 | - | - | - | Through Hole | - | 260 Ohms | |
|
WO-417-11-03STEPPER MOTOR |
3,917 | - |
|
Техническая |
Tray | - | Active | - | Bipolar | 24VDC | 1.2 A | 400 | 0.9° | - | 16 / 113 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 3 Ohms |
|
WO-4209S-01SSTEPPER MOTOR |
3,885 | - |
|
Техническая |
Tray | - | Active | - | Bipolar | 24VDC | 670 mA | 400 | 0.9° | - | 31 / 219 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 9.6 Ohms |
|
WO-211-18-02-ROSTEPPER MOTOR |
3,956 | - |
|
Техническая |
Tray | - | Active | - | Bipolar | 24VDC | 1.3 A | 200 | 1.8° | - | 13.7 / 96.74 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 1.3 Ohms |
|
WO-4118M-06SSTEPPER MOTOR |
2,028 | - |
|
Техническая |
Tray | - | Active | - | Bipolar | 24VDC | 700 mA | 200 | 1.8° | - | 63 / 444.88 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 10.8 Ohms |
|
A6K-G264STEPPER MOTOR 2PHASE 56MM 2A |
3,558 | - |
|
Box | AK-2 | Active | - | Bipolar | - | 2 A | 200 | 1.8° | - | 80.7 / 570 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | 0°C ~ 50°C | 1.3 Ohms | |
|
|
A1K-M543WSTEPPER MOTOR 5PHASE 42MM 1.4A |
2,022 | - |
|
Box | AK | Active | - | Unipolar | 24VDC | 1.4 A | 500 | 0.72° | - | 18.41 / 130 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | - | |
|
|
A1K-S543WSTEPPER MOTOR 5PHASE 42MM 0.75A |
3,439 | - |
|
Box | AK | Active | - | Unipolar | 24VDC | 750 mA | 500 | 0.72° | - | 18.41 / 130 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 1.7 Ohms | |
|
|
A8K-S566STEPPER MOTOR 5PHASE 60MM 0.75A |
2,270 | - |
|
Box | AK | Active | - | Unipolar | 24VDC | 750 mA | 500 | 0.72° | - | 117.5 / 830 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.969 (50.00mm) | Wire Leads | -10°C ~ 50°C | 4 Ohms | |
|
|
A2K-S544W-SSTEPPER MOTOR 5PHASE 42MM 0.75A |
3,268 | - |
|
Box | AK | Active | - | Unipolar | 24VDC | 750 mA | 500 | 0.72° | - | 25.49 / 180 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 2.2 Ohms | |
|
|
SS2422-50XE100STPR MTR BIPOLAR 5.4V 1A/PHASE |
3,530 | - |
|
Техническая |
Bulk | SS | Active | Hybrid | Bipolar | 5.4VDC | 1 A | 200 | 1.8° | ±0.09% | 26.33 / 186 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.276 (7.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 5.4 Ohms |
|
|
AH3K-S545STEPPER MOTOR 5PHASE 42MM 0.75A |
3,845 | - |
|
Box | AHK | Active | - | Unipolar | 24VDC | 750 mA | 500 | 0.72° | - | 34 / 240 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | - | - | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 2.2 Ohms | |
|
|
A15K-S545-G10STEPPER MOTOR 5PHASE 42MM 0.75A |
3,128 | - |
|
Box | AK-G | Active | - | Unipolar | 24VDC | 750 mA | 5000 | 0.72° | - | 212.5 / 1500 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.315 (8.00mm) | 1.102 (28.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 2.2 Ohms | |
|
|
A21K-M596STEPPER MOTOR 5PHASE 85MM 1.4A |
3,322 | - |
|
Box | AK | Active | - | Unipolar | 24VDC | 1.4 A | 500 | 0.72° | - | 297.4 / 2100 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | - | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.756 (70.00mm) | Wire Leads | -10°C ~ 50°C | 1.76 Ohms | |
|
DMX-J-SA-17-3-DMNEMA 17 + DRIVER + CONTROLLER |
2,634 | - |
|
Box | - | Active | Hybrid | - | 12 ~ 24VDC | 2 A | 200 | 1.8° | - | - | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.940 (23.88mm) | 1.220 (31.00mm) | Connector | 0°C ~ 85°C | 1.4 Ohms | |
|
|
A50K-M566-R10STEPPER MOTOR 5PHASE 60MM 1.4A |
3,226 | - |
|
Box | AK-R | Active | - | Unipolar | 24VDC | 1.4 A | 5000 | 0.072° | - | 708.1 / 5000 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 1.693 (43.00mm) | - | - | Wire Leads | -10°C ~ 50°C | 1.1 Ohms | |
|
|
A63K-G5913STEPPER MOTOR 5PHASE 85MM 2.8A |
2,163 | - |
|
Box | AK | Active | - | Unipolar | 24VDC | 2.8 A | 500 | 0.72° | - | 892.2 / 6300 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | - | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.756 (70.00mm) | Wire Leads | -10°C ~ 50°C | 0.86 Ohms | |
|

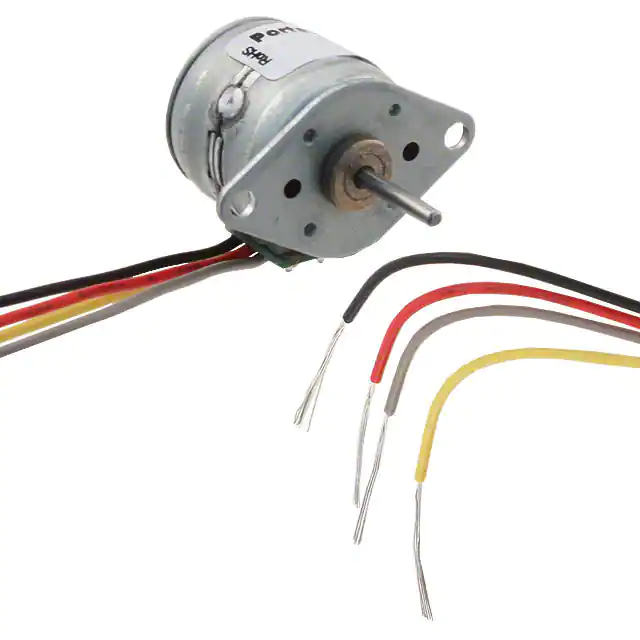

15M020D1B-NSTEPPER MOTOR PM BIPOLAR 5V |
3,634 | - |
|
Техническая |
Bulk | 15M | Active | Permanent Magnet | Bipolar | 5VDC | 125 mA | 20 | 18° | - | 0.55 / 3.9 | Round - 0.610 Dia (15.50mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.787 (20.00mm) | Wire Leads | -20°C ~ 70°C | 40 Ohms |
|

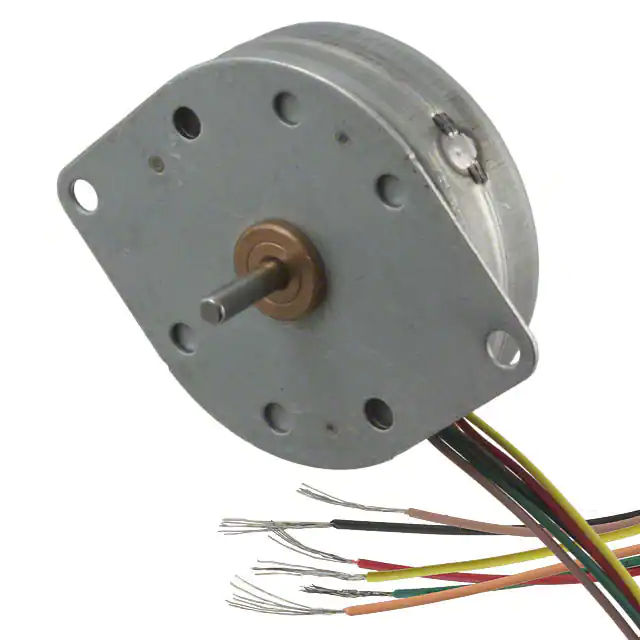

42S048D2USTEPPER MOTOR PM UNIPOLAR 12V |
2,270 | - |
|
Техническая |
Bulk | 42S | Active | Permanent Magnet | Unipolar | 12VDC | 160 mA | 48 | 7.5° | ±15% | 6.3 / 44.5 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 75 Ohms |
