| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82924035STEPPER MOTOR PM GEARED UNI 6.3V |
3,302 | - |
|
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 590 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 10.7 Ohms | |
|
|
82924038STEPPER MOTOR PM GEARED BI 6.3V |
2,695 | - |
|
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Bipolar | 6.3VDC | 590 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 10.7 Ohms | |
|
|
82924047STEPPER MOTOR PM GEARED UNI 6.3V |
3,568 | - |
|
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 280 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 46 Ohms | |
|
|
82924069STEPPER MOTOR PM GEARED UNI 6.3V |
3,756 | - |
|
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 590 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 10.7 Ohms | |
|
|
82940022MOTOR 829400 - 7 5 48STEP/T - 2 |
2,076 | - |
|
Bulk | 82940 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
82940023MOTOR 829400 - 7 5 48STEP/T - 4 |
3,111 | - |
|
Bulk | 82940 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
82910029MOTOR 829100 -75 SENS=2 PHASE=4 |
3,325 | - |
|
Техническая |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

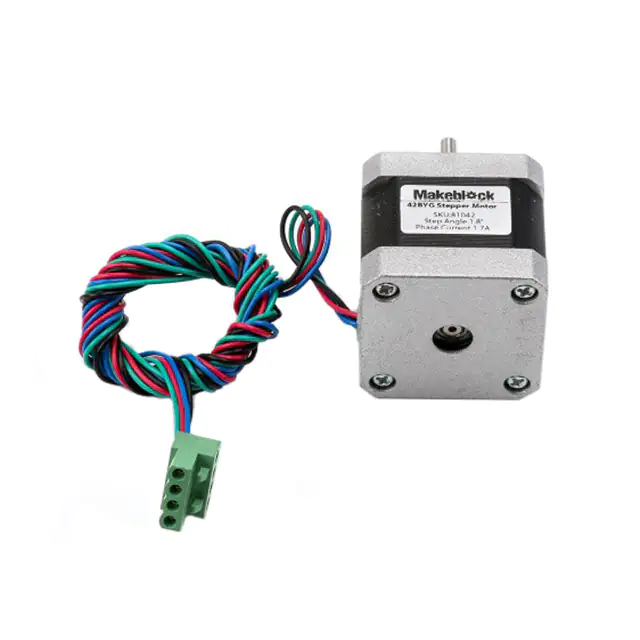

8104242BYG STEPPER MOTOR |
3,295 | - |
|
Техническая |
Bulk | 42BYG | Active | - | Bipolar | 12VDC | 1.7 A | 200 | 1.8° | - | 56.3 / 400 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.157 (4.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | - | 1.5 Ohms |
|
|
89940102MOTORED.899401 RAP=3000 115V 50/ |
2,497 | - |
|
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
8106242BYG THROUGH-TYPE LEAD SCREW ST |
2,602 | - |
|
Техническая |
Bulk | 42BYG | Not For New Designs | - | Bipolar | - | 1.5 A | 200 | 1.8° | - | - | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | - | - | - | 1.220 (31.00mm) | Connector | - | - |
|
|
8105757BYG STEPPER MOTOR |
3,517 | - |
|
Техническая |
Bulk | - | Not For New Designs | - | - | - | 2.8 A | 200 | 1.8° | - | 169.96 / 1200 | Square - 2.217 x 2.217 (56.30mm x 56.30mm) | - | 0.315 (8.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | - | - |
|
|
8050242BYG GEARED STEPPER MOTOR |
3,780 | - |
|
Bulk | - | Obsolete | - | - | - | 2.8 A | 200 | 1.8° | - | - | Square - 2.217 x 2.217 (56.30mm x 56.30mm) | - | 0.315 (8.00mm) | - | - | Connector | - | - | |
|
|
SM2862-5052STEP, F2, SQ.86, 1.8, HALF INCH |
2,349 | - |
|
Box | - | Active | Hybrid | Bipolar | 100VAC | 2 A | 200 | 1.8° | - | 906.3 / 6400 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 3.2 Ohms | |
|
103H7823-5730STEP, F2, SQ.60, 1.8, NEMA, , BI |
2,403 | - |
|
Техническая |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 382.4 / 2700 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.4 Ohms |
|
103H7123-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
2,971 | - |
|
Техническая |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 141.6 / 1000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.5 Ohms |
|
|
SM2861-5052STEP, F2, SQ.86, 1.8, HALF INCH |
3,644 | - |
|
Box | - | Active | Hybrid | Bipolar | 100VAC | 2 A | 200 | 1.8° | - | 467.3 / 3300 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 2.2 Ohms | |
|
|
103H7822-5760STEP, F2, SQ.60, 1.8, NEMA, , BI |
3,307 | - |
|
Техническая |
Box | H | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 194 / 1370 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.55 Ohms |
|
|
103H7126-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
3,605 | - |
|
Техническая |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 226.6 / 1600 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms |
|
|
103H7823-5760STEP, F2, SQ.60, 1.8, NEMA, , BI |
2,104 | - |
|
Техническая |
Box | H | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 382.4 / 2700 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.4 Ohms |
|
|
103H7123-5740STEP, F2, SQ.56, 1.8, , , BIPOLA |
3,704 | - |
|
Техническая |
Box | H | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 141.6 / 1000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.5 Ohms |
