Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
PA0803NL XFMR DC/DC CONV SMD Pulse Electronics Power	2,565	-	запрос цен	Техническая	Tray	PA08XXNL	Active	For DC/DC Converters	-	-	-	18 ~ 76V	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.920 W (21.60mm x 23.37mm)	0.348 (8.85mm)	0.850 L x 0.920 W (21.60mm x 23.37mm)

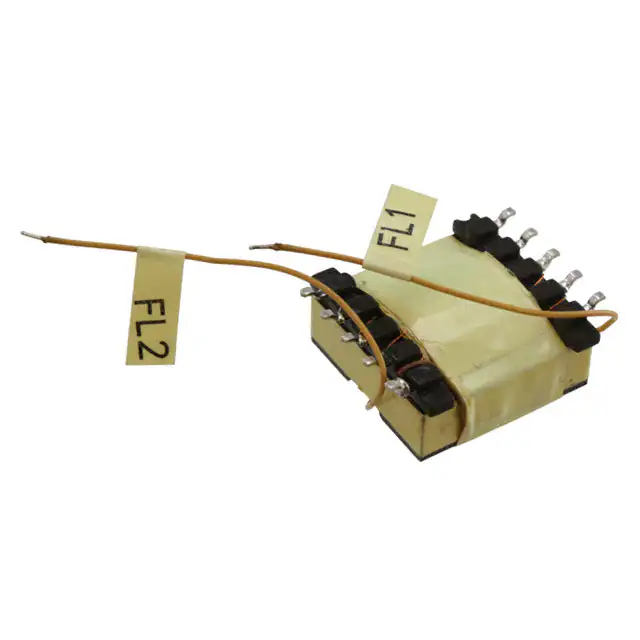

750311620 TRANS FLYBACK NCL30000 1.90MH Würth Elektronik	2,663	-	запрос цен	Техническая	Tray	WE-UNIT, MID-OLON	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCL30000	On Semiconductor	30 ~ 190V	19V @ 5mA	4500Vrms	1.9mH @ 10kHz	53 ~ 120kHz	-40°C ~ 125°C	Surface Mount	-	0.435 (11.05mm)	0.910 L x 1.020 W (23.11mm x 25.91mm)
PH0803CNL XFMR DC/DC CONV SMD Pulse Electronics Power	2,695	-	запрос цен	Техническая	Tray	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.65mm)	0.368 (9.35mm)	0.850 L x 0.970 W (21.59mm x 24.65mm)
PH0806CNL XFMR DC/DC CONV SMD Pulse Electronics Power	2,144	-	запрос цен	Техническая	Tray	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.65mm)	0.368 (9.35mm)	0.850 L x 0.970 W (21.59mm x 24.65mm)
PH0815CNL XFMR DC/DC CONV SMD Pulse Electronics Power	290	-	запрос цен	Техническая	Tray	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.65mm)	0.388 (9.85mm)	0.850 L x 0.970 W (21.59mm x 24.65mm)

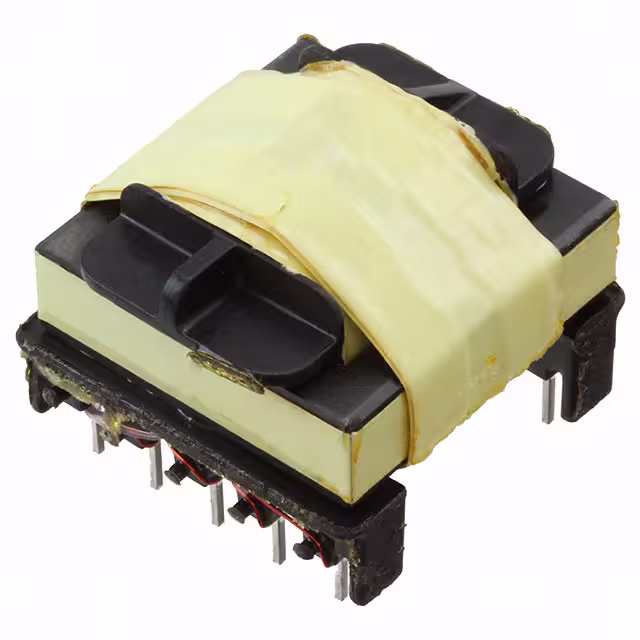

750813550 OFFLINE XFRM WE-UNIT TI LM3450 Würth Elektronik	2,728	-	запрос цен	Техническая	Tray	WE-UNIT, MID-OLTI	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 191V	12.5V @ 80mA	3000Vrms	1.02mH @ 10kHz	55 ~ 85kHz	-	Through Hole	1.125 L x 1.150 W (28.58mm x 29.21mm)	0.905 (22.99mm)	1.125 L x 1.150 W (28.58mm x 29.21mm)

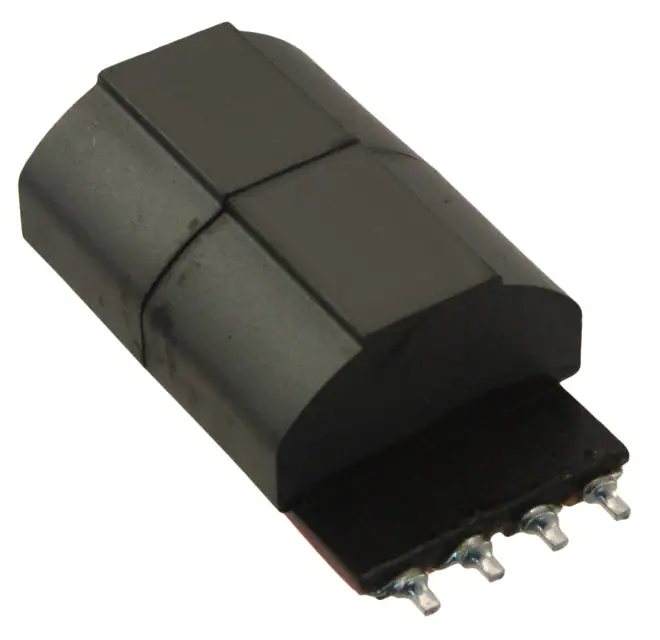

760875142 TRANS 4500V SMD Würth Elektronik	3,211	-	запрос цен	Техническая	Tape & Reel (TR)	WE-FB, MID-OLT8	Active	-	LED Drivers, AC/DC SMPS	-	-	280 ~ 380V	19V @ 20mA	4500Vrms	2.5mH @ 10kHz	85kHz	-40°C ~ 125°C	Surface Mount	0.740 L x 1.319 W (18.80mm x 33.50mm)	0.477 (12.12mm)	0.740 L x 1.437 W (18.80mm x 36.50mm)

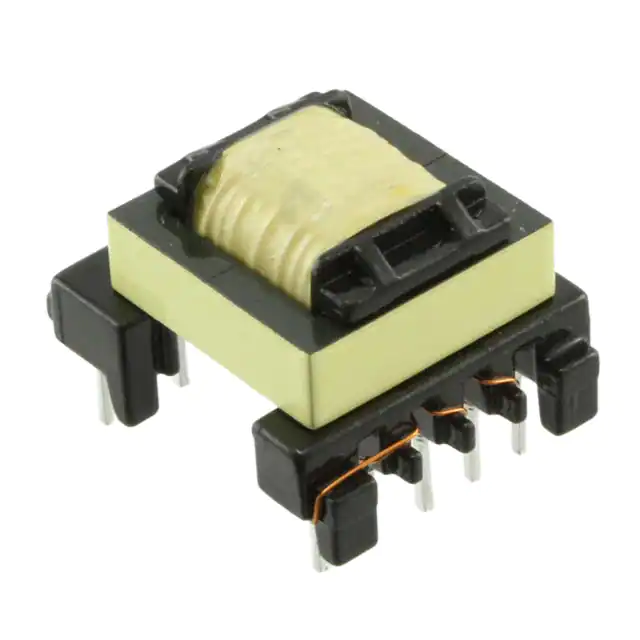

750811042 TRANS FLYBACK ON SEMI NCP1014 Würth Elektronik	3,869	-	запрос цен	Техническая	Tray	WE-UNIT, MID-OLON	Active	For AC/DC Converters	Flyback Converters	NCP1014	On Semiconductor	120 ~ 375V	-	4500Vrms	1.8mH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	-	0.635 (16.13mm)	0.800 L x 0.960 W (20.32mm x 24.38mm)
750311593 TRANS FLYBACK LT3748 15UH SMD Würth Elektronik	3,715	-	запрос цен	Техническая	Tape & Reel (TR)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	10V	1500Vrms	15µH @ 150kHz	150kHz	-40°C ~ 85°C	Surface Mount	-	0.544 (13.82mm)	1.064 L x 1.272 W (27.03mm x 32.31mm)
750311594 TRANS FLYBACK LT3748 15UH SMD Würth Elektronik	2,965	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	10V	1500Vrms	15µH @ 150kHz	150kHz	-40°C ~ 85°C	Surface Mount	-	0.544 (13.82mm)	1.064 L x 1.272 W (27.03mm x 32.31mm)
750845242 FLYBACK TRANSFORMER Würth Elektronik	3,680	-	запрос цен		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750311267 TRANS FLYBACK ON SEMI NCP1652 Würth Elektronik	3,507	-	запрос цен	Техническая	Tray	WE-FB, MID-OLON	Active	For AC/DC Converters	Flyback Converters	NCP1652	On Semiconductor	-	-	3000Vrms	625µH @ 10kHz	-	-	Through Hole	1.400 L x 1.470 W (35.56mm x 37.34mm)	1.355 (34.42mm)	1.400 L x 1.470 W (35.56mm x 37.34mm)

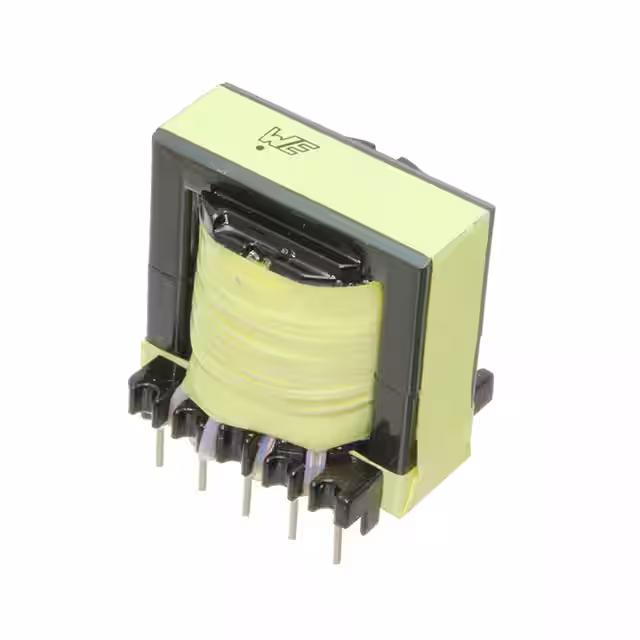

750343004 FLYBACK TRANSFORMER WE-FB Würth Elektronik	2,495	-	запрос цен	Техническая	Tray	MID-OLTI	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	-	-	3750Vrms	-	65kHz	-40°C ~ 125°C	Through Hole	-	1.299 (33.00mm)	-

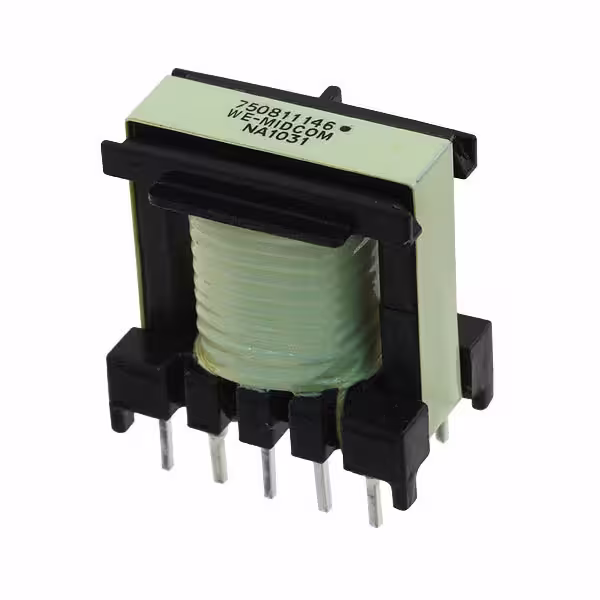

750811146 TRANSFORMER FLYBACK TPS92210 Würth Elektronik	3,953	-	запрос цен	Техническая	Tray	WE-UNIT, MID-OLTI	Active	For AC/DC Converters	Flyback Converters	PMP6001, TPS92210	Texas Instruments	88 ~ 269V	-	3750Vrms	430µH @ 65kHz	130kHz	-40°C ~ 125°C	Through Hole	0.876 L x 0.567 W (22.88mm x 14.40mm)	0.878 (22.30mm)	0.876 L x 0.567 W (22.25mm x 14.40mm)
PH9278NLT TRANSFORMER 3TP:3TS:3TS NPB Pulse Electronics Power	2,278	-	запрос цен	Техническая	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	1.055 L x 1.319 W (26.80mm x 33.50mm)	0.730 (18.55mm)	1.055 L x 1.319 W (26.80mm x 33.50mm)

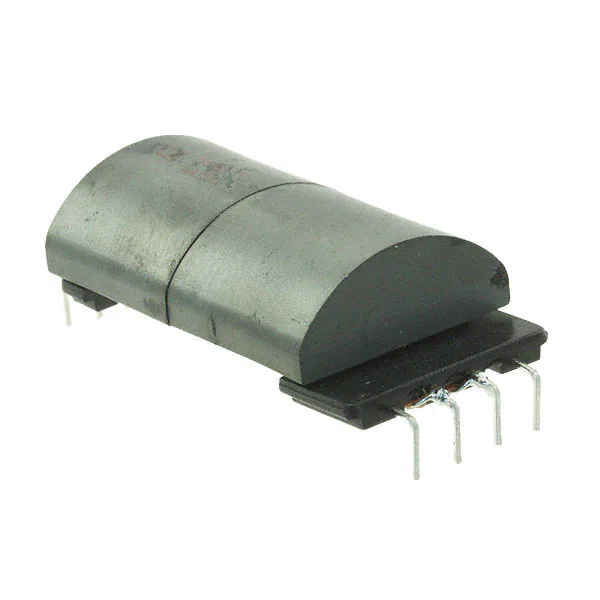

750841243 TRANS 3000V RAD Würth Elektronik	3,534	-	запрос цен	Техническая	Tray	WE-FB, MID-OLT8	Active	-	LED Drivers, AC/DC SMPS	-	-	85 ~ 265V	20V @ 50mA	3000Vrms	270µH @ 10kHz	85kHz	-40°C ~ 125°C	Through Hole	-	0.477 (12.12mm)	0.886 L x 1.850 W (22.50mm x 47.00mm)

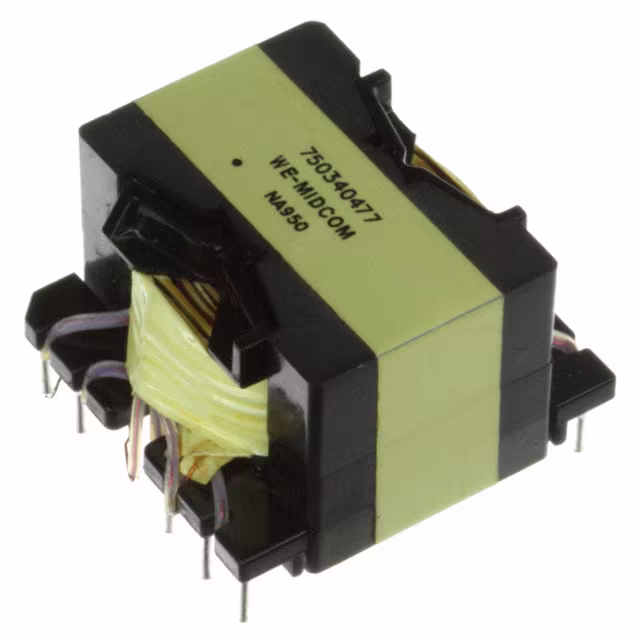

750340477 TRANS FLYBACK NXPSSL1750 550UH Würth Elektronik	2,834	-	запрос цен	Техническая	Tray	-	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	SSL1750	NXP Semiconductors	-	-	1000Vrms	550µH @ 60kHz	-	-	Through Hole	1.339 L x 1.370 W (34.00mm x 34.80mm)	0.955 (24.26mm)	1.339 L x 1.370 W (34.00mm x 34.80mm)

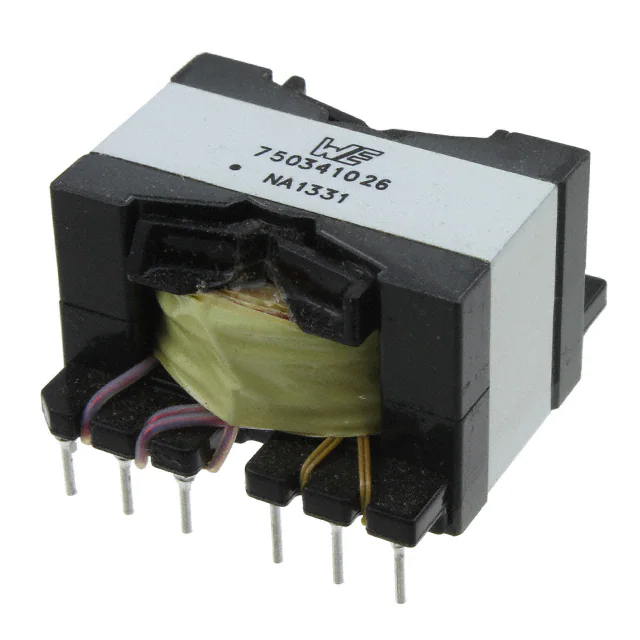

750341026 FLYBACK XFRM WE-FB NXP Würth Elektronik	3,569	-	запрос цен	Техническая	Tray	WE-FB	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	SSL4101	-	-	-	-	710µH @ 10kHz	-	-	Through Hole	-	0.865 (21.97mm)	1.339 L x 1.350 W (34.00mm x 34.30mm)
750341143 TRANSFORMER PLANAR 170UH SMD Würth Elektronik	3,343	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	170µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
750341144 TRANSFORMER PLANAR 300UH SMD Würth Elektronik	2,009	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	260µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
